Kübler Linear Measuring Linear Measuring Encoder, Analogue Signal
- RS 제품 번호:
- 447-6186
- 제조사 부품 번호:
- D5.3501.A331.0000
- 제조업체:
- Kübler
- RS 제품 번호:
- 447-6186
- 제조사 부품 번호:
- D5.3501.A331.0000
- 제조업체:
- Kübler
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항

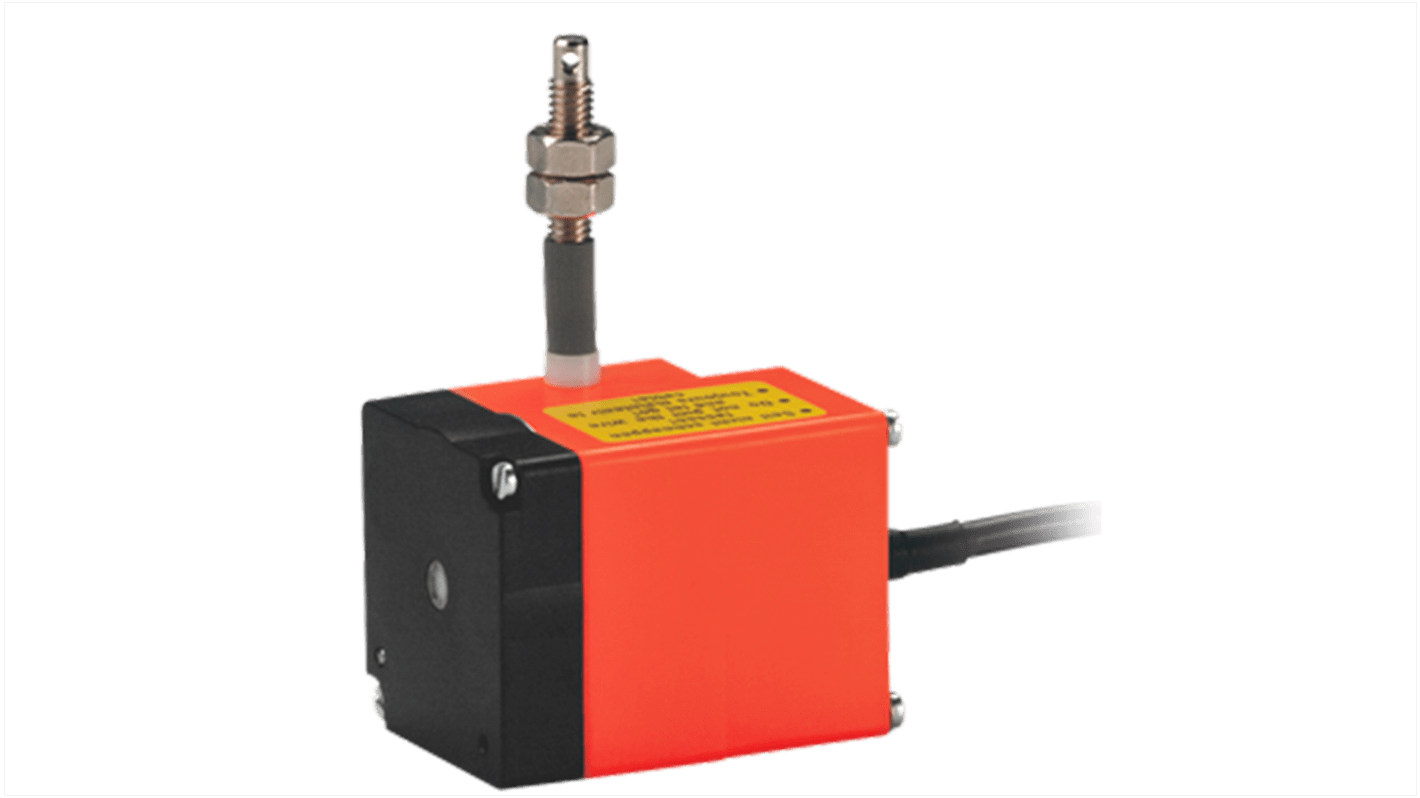

Miniature cable pull sensor, analogue
Miniature cable pull sensor with analogue output
For length or distance measurement in machine and
plant construction
Tried and proven, manageable solution
Converts linear movements by extending and retracting a cable into rotational motions
Compact
Measurement length up to 1000 mm
Robust design
Simple evaluation with digital display via
analogue signal
Low-cost alternative to the rotary transducer design
Current or voltage output
Dimensions: 74 x 43 x 40 mm
Steel cable, plastic-coated
Power supply 15 V DC to 28 V DC
Potentiometer
For length or distance measurement in machine and
plant construction
Tried and proven, manageable solution
Converts linear movements by extending and retracting a cable into rotational motions
Compact
Measurement length up to 1000 mm
Robust design
Simple evaluation with digital display via
analogue signal
Low-cost alternative to the rotary transducer design
Current or voltage output
Dimensions: 74 x 43 x 40 mm
Steel cable, plastic-coated
Power supply 15 V DC to 28 V DC
Potentiometer
사양
속성 | 값 |
|---|---|
| Encoder Technology | Linear Measuring |
| Output Signal Type | Analogue |
| Overall Height | 40mm |
| Overall Width | 55mm |
| Overall Depth | 40mm |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
