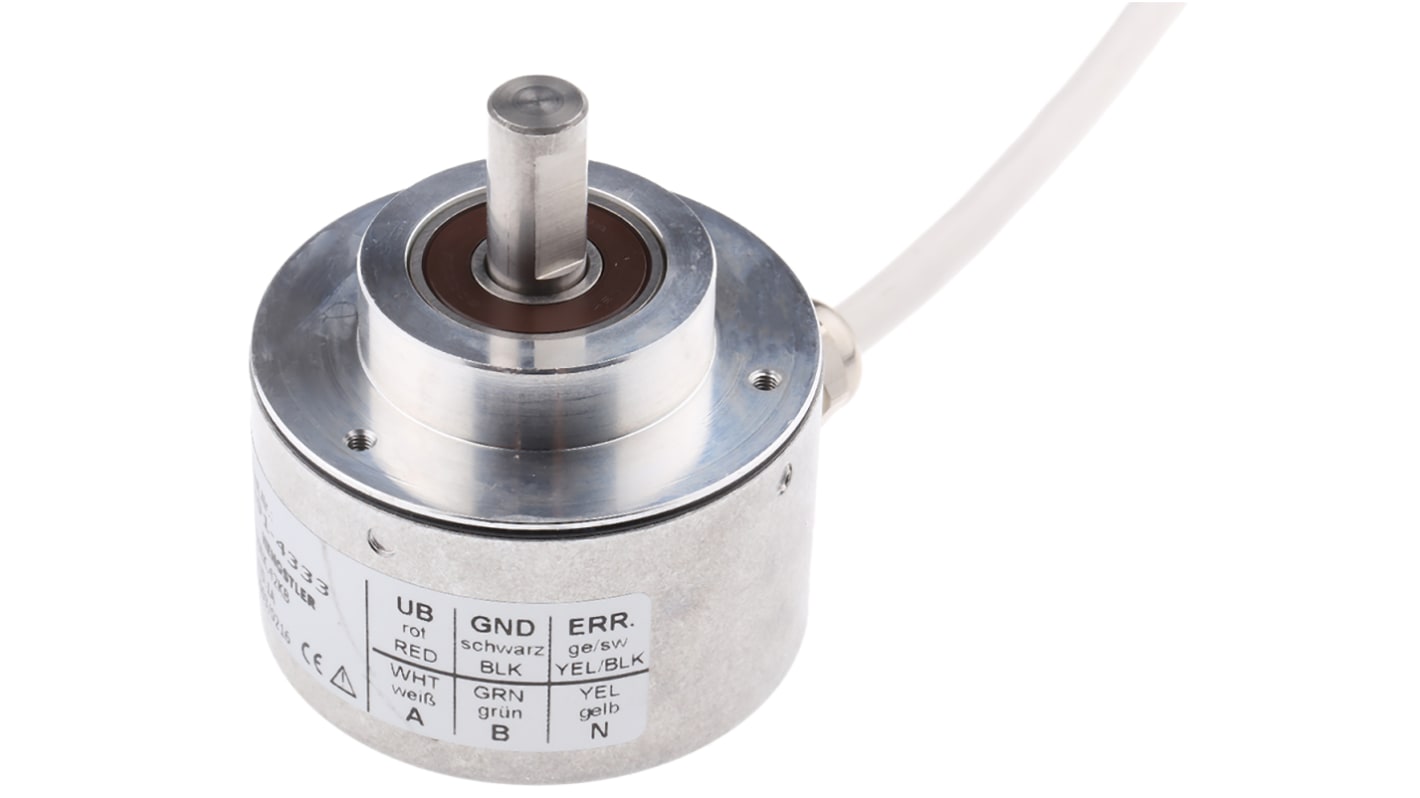

Hengstler RI58-O Series Incremental Incremental Encoder, 2500 ppr, Push Pull Signal
- RS 제품 번호:
- 291-4333
- 제조사 부품 번호:
- RI58-0/2500EK.42KB
- 제조업체:
- Hengstler
- RS 제품 번호:
- 291-4333
- 제조사 부품 번호:
- RI58-0/2500EK.42KB
- 제조업체:
- Hengstler
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- DE
제품 세부 사항
RI58-0 10mm Shaft
Low cost, high specification
Hengstler
Radial cable termination
Alarm, A, B, N output
Encoders: OptoAsic technology for greater reliability
Pulse shape: Square wave, 1:1 duty cycle
Alarm, A, B, N output
Encoders: OptoAsic technology for greater reliability
Pulse shape: Square wave, 1:1 duty cycle
사양
속성 | 값 |
|---|---|
| Encoder Technology | Incremental |
| Pulses Per Revolution | 2500 |
| Series | RI58-O |
| Maximum Revolutions | 10000rpm |
| Output Signal Type | Push Pull |
| Supply Voltage | 10 → 30 V dc |
| IP Rating | IP64, IP65, IP67 |
| Overall Height | 57.5mm |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +70°C |
| Switching Frequency | 300 kHz |
