- RS 제품 번호:
- 171-3314
- 제조사 부품 번호:
- 74VHC123AFT
- 제조업체:
- Toshiba
5000 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(2500개가 1릴안에)
₩201.813
수량 | 한팩당 | Per Reel* |
2500 - 2500 | ₩201.813 | ₩505,395.70 |
5000 - 22500 | ₩198.364 | ₩495,046.30 |
25000 + | ₩193.189 | ₩485,128.125 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 171-3314
- 제조사 부품 번호:
- 74VHC123AFT
- 제조업체:
- Toshiba
제정법과 컴플라이언스
제품 세부 사항
The 74VHC123A/221AFT are high speed CMOS MONOSTABLE MULTIVIBRATOR fabricated with silicon gate C2MOS technology. There are two trigger inputs, A input (negative edge), and B input (positive edge). These inputs are valid for a slow rise/fall time signal (tr = tf = 1 s) as they are schmitt trigger inputs. This device may also be triggered by using CLR input (positive edge).After triggering, the output stays in a MONOSTABLE state for a time period determined by the external resistor and capacitor (RX, CX). A low level at the CLR input breaks this state. Limits for CX and RX are:External capacitor, CX: No limit External resistor, RX: VCC = 2.0 V more than 5 kΩ VCC ≥ 3.0 V more than 1 kΩ
Wide operating temperature range: Topr = -40 to 125
High speed: Propagation delay time = 8.1 ns (typ.) at VCC = 5 V
Low power dissipation:
Standby state: 4.0 μA (max) at Ta = 25
Active state: 750 μA (max) at Ta = 25
High noise immunity: VNIH = VNIL = 28 % VCC (min)
Power-down protection is provided on all inputs.
Balanced propagation delays: tPLH ≈ tPHL
Wide operating voltage range: VCC(opr) = 2.0 V to 5.5 V
Pin and function compatible with 74HC123,74HC221 type.
High speed: Propagation delay time = 8.1 ns (typ.) at VCC = 5 V
Low power dissipation:
Standby state: 4.0 μA (max) at Ta = 25
Active state: 750 μA (max) at Ta = 25
High noise immunity: VNIH = VNIL = 28 % VCC (min)
Power-down protection is provided on all inputs.
Balanced propagation delays: tPLH ≈ tPHL
Wide operating voltage range: VCC(opr) = 2.0 V to 5.5 V
Pin and function compatible with 74HC123,74HC221 type.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Logic Family | 74VHC |
Logic Function | Monostable Multivibrator |
Number of Elements per Chip | 27 |
Maximum High Level Output Current | -8mA |
Maximum Low Level Output Current | 8mA |
Minimum Pulse Width | 5 ns |
Maximum Propagation Delay Time @ Maximum CL | 24.5ns |
Maximum Quiescent Current | 80µA |
Mounting Type | Surface Mount |

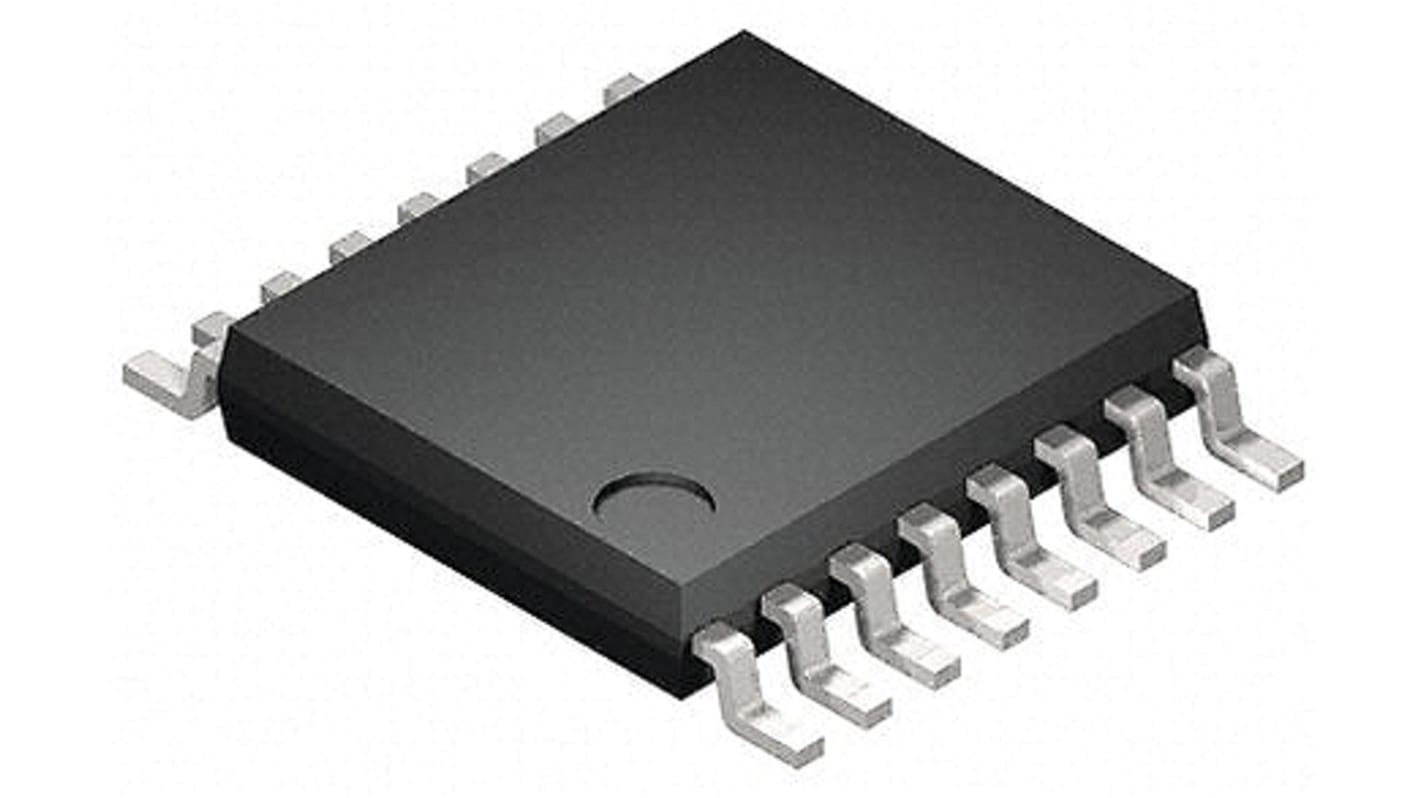

Package Type | TSSOP |
Pin Count | 16 |
Dimensions | 5 x 4.4 x 1mm |
Height | 1mm |
Length | 5mm |
Automotive Standard | AEC-Q100 |
Maximum Operating Temperature | +125 °C |
Minimum Operating Temperature | -40 °C |
Maximum Operating Supply Voltage | 5.5 V |
Minimum Operating Supply Voltage | 2 V |
Width | 4.4mm |
Propagation Delay Test Condition | 50pF |
