- RS 제품 번호:
- 261-993
- 제조사 부품 번호:
- 84874320
- 제조업체:
- Crouzet
- RS 제품 번호:
- 261-993
- 제조사 부품 번호:
- 84874320
- 제조업체:
- Crouzet
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- ID
제품 세부 사항

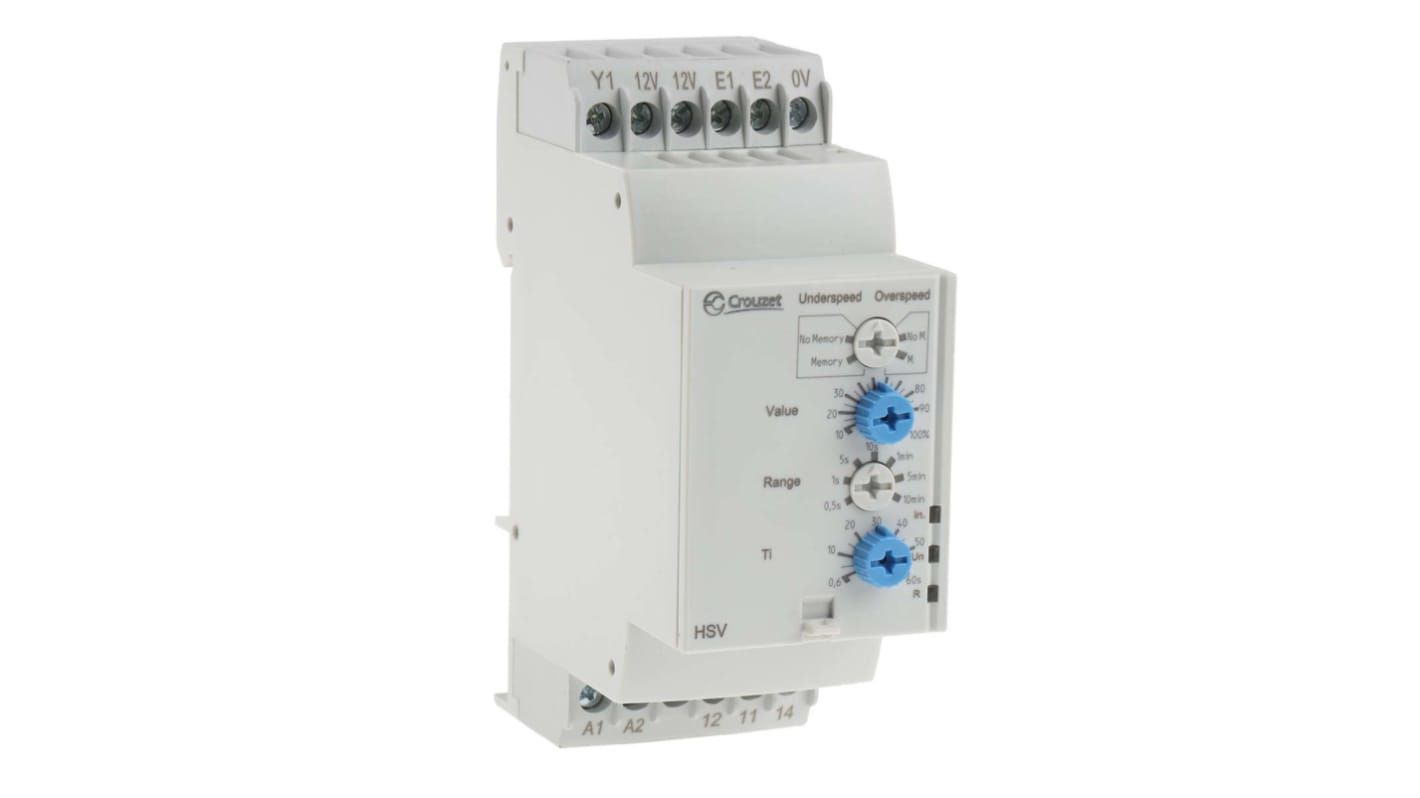

Speed Control Relay - C-Lynx
The HSV relay controls the speed (or, more strictly speaking, the operating rate, or frequency) of a process (moving walkway, conveyor) using discrete sensors. It can be used to monitor under OR overspeed.
Control of overspeed, underspeed, operating rate, stopping
Measurement via discrete sensors - 3-wire PNP or NPN, Namur, voltage 0-30V or volt-free contact type
Works with either NO or NC sensors
Time between pulses adjustable from 0.05 s to 10 min.
Power-on inhibit time, adjustable from 0.6 s to 60 s
Inhibit time can be managed via an external contact
Measurement via discrete sensors - 3-wire PNP or NPN, Namur, voltage 0-30V or volt-free contact type
Works with either NO or NC sensors
Time between pulses adjustable from 0.05 s to 10 min.
Power-on inhibit time, adjustable from 0.6 s to 60 s
Inhibit time can be managed via an external contact
사양
속성 | 값 |
---|---|
Monitoring Application | Speed |
Contact Configuration | SP-NO/NC |
Mounting Type | DIN Rail |
Time Delay | 15ms |
Series | HSV |
Maximum Operating Temperature | +50°C |
Height | 92.6mm |
Length | 69mm |
Dimensions | 69 x 35 x 92.6mm |
Width | 35mm |
Minimum Operating Temperature | -20°C |
Operating Temperature Range | +50°C |
