- RS 제품 번호:
- 221-3605P
- 제조사 부품 번호:
- P2X8C4M64P
- 제조업체:
- Parallax Inc
125 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당(트레이에 담겨 공급됨)
₩35,715.779
수량 | 한팩당 |
23 - 44 | ₩35,715.779 |
45 + | ₩35,001.671 |
- RS 제품 번호:
- 221-3605P
- 제조사 부품 번호:
- P2X8C4M64P
- 제조업체:
- Parallax Inc
제정법과 컴플라이언스
제품 세부 사항

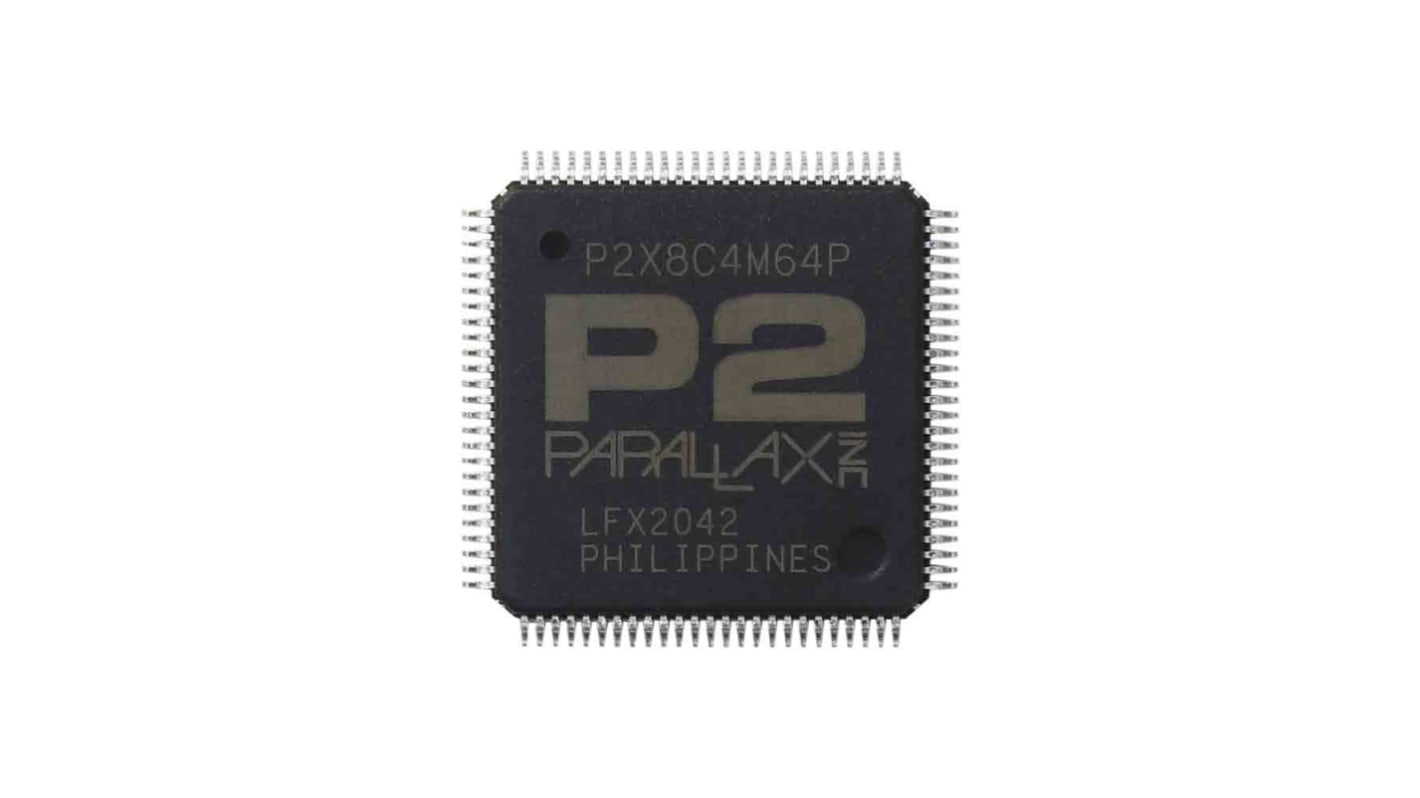

The Parallax Inc P2 Propeller is a multicore microcontroller containing 8 identical 32-bit processors connected to a common hub. The hub provides a shared RAM, a CORDIC math solver, and housekeeping facilities. Each of the 64 identical smart I/O pins are capable of many autonomous analog and digital functions. The smart I/O pins are accessible by each processor to maximize application flexibility, and are externally powered at 3.3 V in blocks of four to maximize analog performance.
512 KB of contiguous RAM in a 20-bit address space
Six different clock modes, all under software control with glitch-free switching between sources
Operating temperature ranges from -40 to +185 °F
64-bit free-running counter which increments every clock, cleared on reset
Mechanisms for starting, polling, and stopping cogs
Six different clock modes, all under software control with glitch-free switching between sources
Operating temperature ranges from -40 to +185 °F
64-bit free-running counter which increments every clock, cleared on reset
Mechanisms for starting, polling, and stopping cogs
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Family Name | Propeller |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 100 |
Data Bus Width | 32bit |
Program Memory Size | 16 kB |
Maximum Frequency | 25MHz |
Program Memory Type | ROM |
