JST 8 Way Micro SD Memory Card Connector With Snap-In Termination
- RS 제품 번호:
- 906-0111
- 제조사 부품 번호:
- SDHL-8BNS-K-363-A0-ETB(HF)
- 제조업체:
- JST
82 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(2개가 1팩안에)
₩4,965.987
| 수량 | 한팩당 | 한팩당* |
| 2 - 374 | ₩4,965.987 | ₩9,931.974 |
| 376 - 748 | ₩4,855.594 | ₩9,711.187 |
| 750 + | ₩4,750.375 | ₩9,502.474 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 906-0111
- 제조사 부품 번호:
- SDHL-8BNS-K-363-A0-ETB(HF)
- 제조업체:
- JST
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항

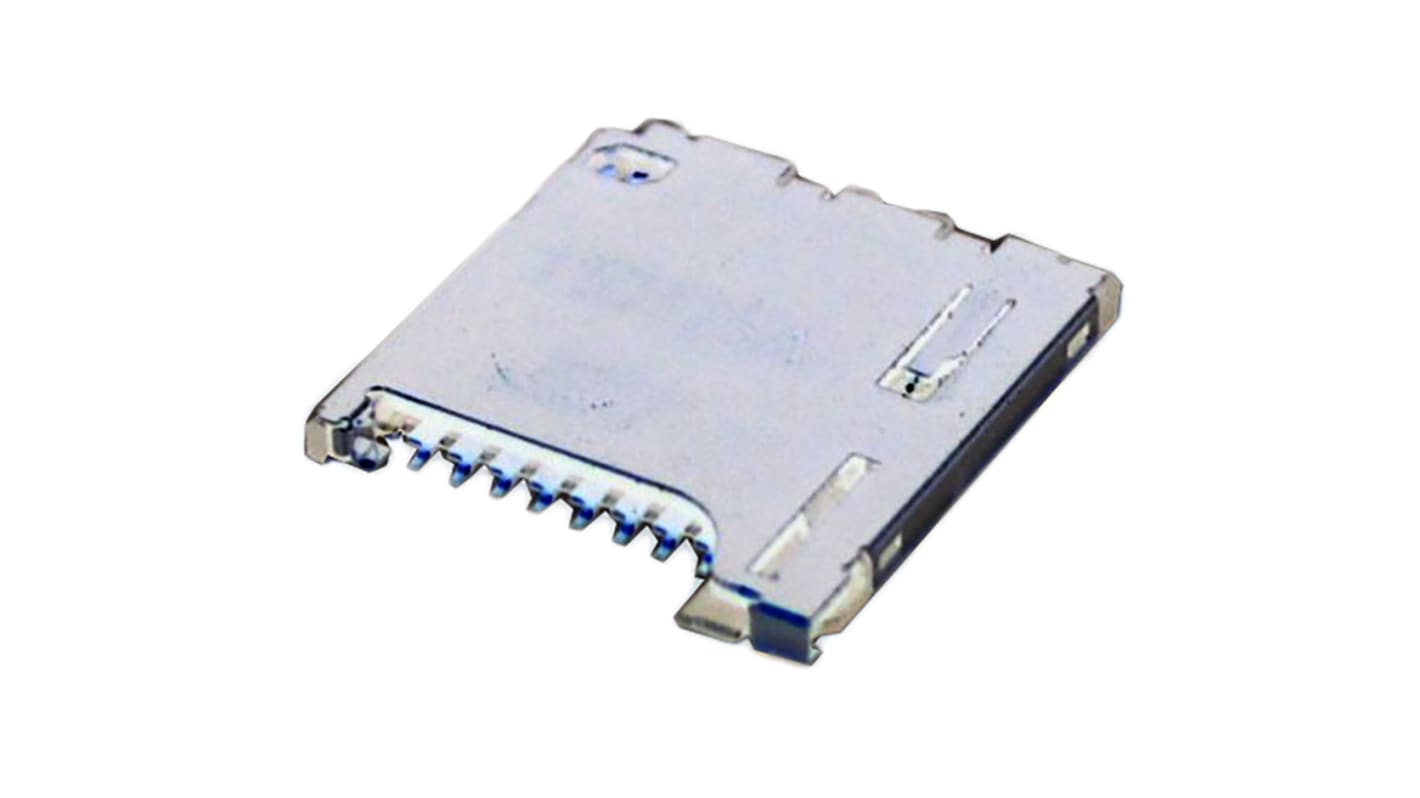

JST SDHL Series microSD Connector
SDHL series SMT microSD connector with a low profile space saving design having a height of just 1.4mm. This SDHL SMT microSD connector has a push-push mechanism for easy ejection and can be used in various applications such as digital cameras, PDAs and mobile phones.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Memory Card Connectors
사양
속성 | 값 |
|---|---|
| Card Type | MicroSD |
| Gender | Female |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Pitch | 1.1mm |
| Body Orientation | Straight |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Nickel Palladium Alloy |
| Termination Method | Snap-In |
| Housing Material | Stainless Steel |
| Length | 13.85mm |
| Width | 15.0mm |
| Depth | 1.3mm |
| Series | SDHL |
| Minimum Operating Temperature | -25°C |
| Dimensions | 13.85 x 15 x 1.3mm |
| Maximum Operating Temperature | +85°C |
