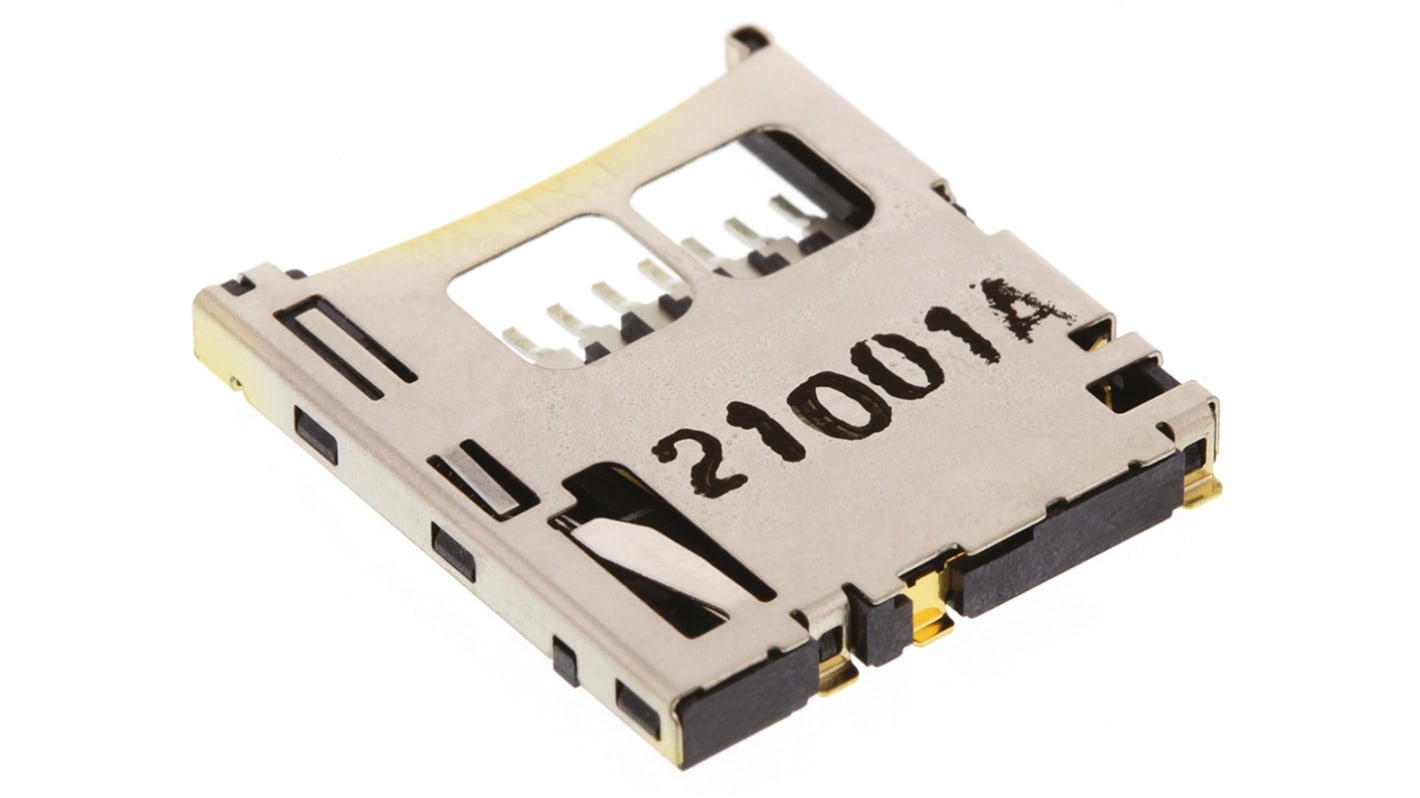

Molex, 502579 8 Way Right Angle Push/Push Micro SD Memory Card Connector With Solder Termination

  • RS 제품 번호 720-6075
  • 제조사 부품 번호 502570-0893
  • 제조업체 Molex
참조 문서
제정법과 컴플라이언스
제품 세부 사항

Molex micro SD Memory Card Connectors - 502570 and 502774 Series

502570 and 502774 series micro SD memory card connectors with a 1.10 mm pitch and anti card-sticking features. These memory card connectors feature a push-push mechanism for easy insertion and removal of the SD card and a reliable card detection switch. The housings are designed with card ejection support features that prevent card fly-out and card sticking. A card polarization feature prevents card misinsertion and a ribbed wall on the inner housing protects the tips of the terminals when the card is inserted. The terminals of these micro SD card connectors are bevelled to prevent damage to the terminal during card insertion. Fully shielded stainless steel covers provide protection against EMI interference. Retention features provide a secure connection to the PCB. Stock number 720-6075 is a normal mount micro SD memory card connector
Stock number 720-6072 is a reverse mount micro SD memory card connector

Features and Benefits

• Card ejection support features to prevent card fly-out and card sticking
• Push-push mechanism for easy card insertion and removal
• Card polarization feature
• Card detection switch
• Ribbed inner wall for terminal protection
• Bevelled terminals
• Fully shielded metal covers for EMI protection
• PCB retention features

Product Application Information

These micro SD memory card connectors are suitable for use in mobile phones, portable audio players, digital still cameras, digital video cameras, portable games, car navigation and personal navigators

Memory Card Connectors

Card Type MicroSD
Insertion/Removal Method Push/Push
Gender Female
Number of Contacts 8
Number of Rows 1
Pitch 1.1mm
Body Orientation Right Angle
Mounting Type Surface Mount
Contact Material Copper Alloy
Contact Plating Gold over Nickel
Termination Method Solder
Housing Material Liquid Crystal Polymer
Length 13.8mm
Width 1.8mm
Depth 15.5mm
Minimum Operating Temperature -25°C
Series Number 502579
Dimensions 13.8 x 1.8 x 15.5mm
Maximum Operating Temperature +85°C
