- RS 제품 번호:
- 685-0779P
- 제조사 부품 번호:
- DM1AA-SF-PEJ(72)
- 제조업체:
- Hirose
- RS 제품 번호:
- 685-0779P
- 제조사 부품 번호:
- DM1AA-SF-PEJ(72)
- 제조업체:
- Hirose
제정법과 컴플라이언스
- COO (Country of Origin):
- ID
제품 세부 사항

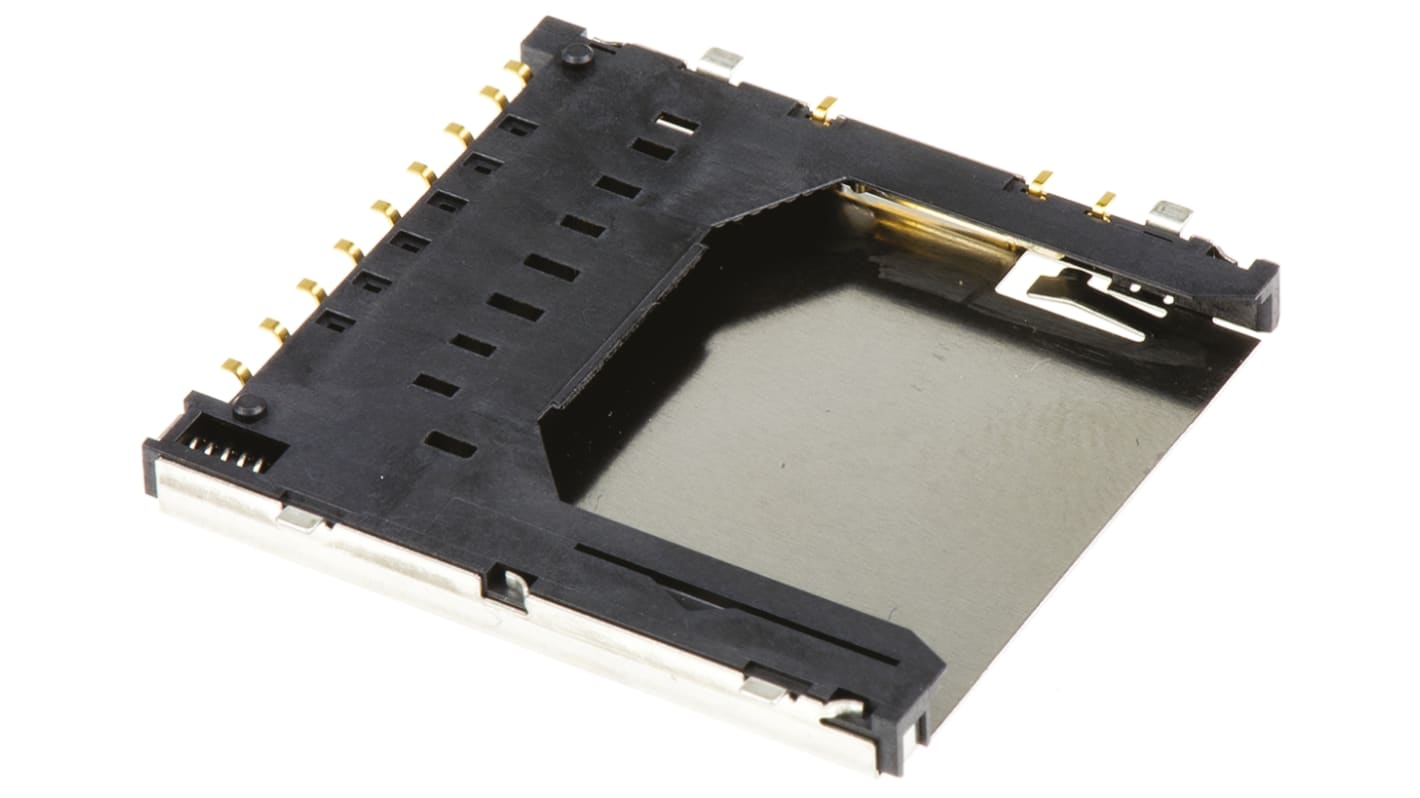

SD Memory Card Connector - Hirose DM1
The DM1 Series memory cards are ideal for applications such as Notebook PC's, digital cameras, PDA's, Audio/Video equipment and other items utilising SD I/O cards
Features and Benefits
Metal cover extends over the back of the connector
Built-in lock feature
Push-in / Push-out ejection mechanism
Stainless steel cover
Built-in lock feature
Push-in / Push-out ejection mechanism
Stainless steel cover
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Memory Card Connectors
사양
속성 | 값 |
---|---|
Card Type | SD Card |
Gender | Female |
Number of Contacts | 9 |
Number of Rows | 1 |
Pitch | 2.5mm |
Body Orientation | Right Angle |
Mounting Type | Surface Mount |
Contact Material | Phosphor Bronze |
Contact Plating | Gold |
Termination Method | Solder |
Housing Material | Thermoplastic |
Length | 30.5mm |
Width | 30.0mm |
Depth | 2.9mm |
Dimensions | 30 x 2.9 x 30.5mm |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -25°C |
