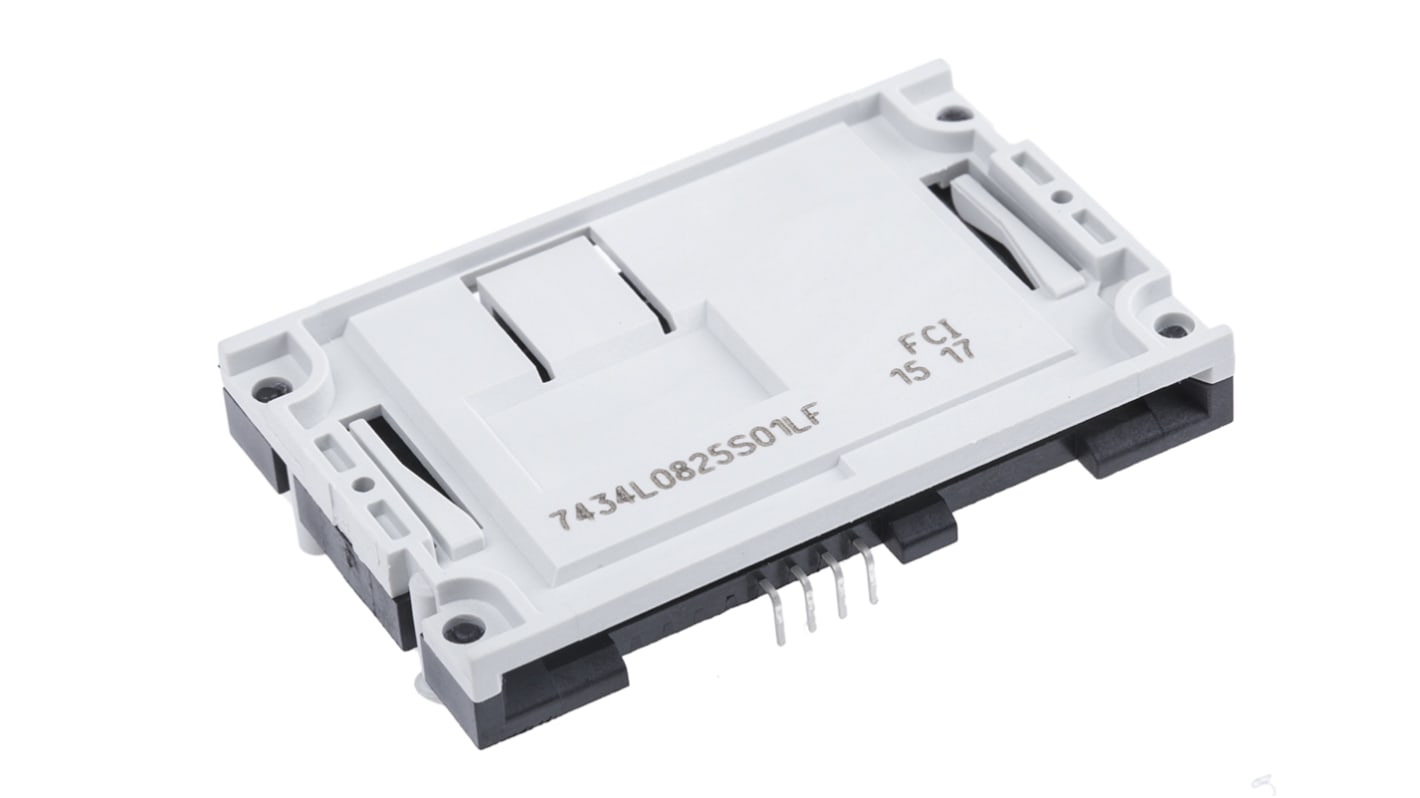

Amphenol ICC 8 Way Right Angle Smart Card Memory Card Connector With Solder Termination

  • RS 제품 번호 542-7898
  • 제조사 부품 번호 7434L0825S01LF
  • 제조업체 Amphenol ICC
참조 문서
제정법과 컴플라이언스
ROHS 준수
제품 세부 사항

Protected Contacts Smart Card Connectors

Contacts - Gold over nickel plated copper alloy
100000 operation working life

8 wiping contacts with spoon-shaped profile set within a closed frame protects against damage
Includes a sealed N/O switch and lead through termination

Standard Height Type

8 wiping contact within an envelope that is suitable for use where space is restricted
Contacts are profiled/framed for protection
Includes a N/O mechanical card detection switch

Low Profile Type

사양
속성
Card Type Smart Card
Gender Male
Number of Contacts 8
Number of Rows 2
Pitch 2.54mm
Body Orientation Right Angle
Mounting Type Through Hole
Contact Material Copper Alloy
Contact Plating Tin Lead Alloy over Nickel
Termination Method Solder
Housing Material Thermoplastic
Length 62.0mm
Width 9.0mm
Depth 40.0mm
Dimensions 62 x 9 x 40mm
140 <재고있음> 5-9영업일내 홍콩 발송
단가 Each
5,530.40
(exc. VAT)
수량
한(1)개당
1 - 24
₩5,530.40
25 - 74
₩4,992.55
75 - 199
₩4,708.90
200 - 399
₩4,154.00
400 +
₩3,884.30
