TE Connectivity 24 Pulse Incremental Mechanical Rotary Encoder with a 6.8 mm Flat Shaft (Not Indexed), Through Hole
- RS 제품 번호:
- 663-3211
- 제조사 부품 번호:
- DPL12SVN24A21F3
- 제조업체:
- TE Connectivity
19 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩15,794.909
| 수량 | 한팩당 |
| 1 - 249 | ₩15,794.909 |
| 250 - 499 | ₩15,446.48 |
| 500 + | ₩15,115.299 |
- RS 제품 번호:
- 663-3211
- 제조사 부품 번호:
- DPL12SVN24A21F3
- 제조업체:
- TE Connectivity
제정법과 컴플라이언스
- COO (Country of Origin):
- TW
제품 세부 사항

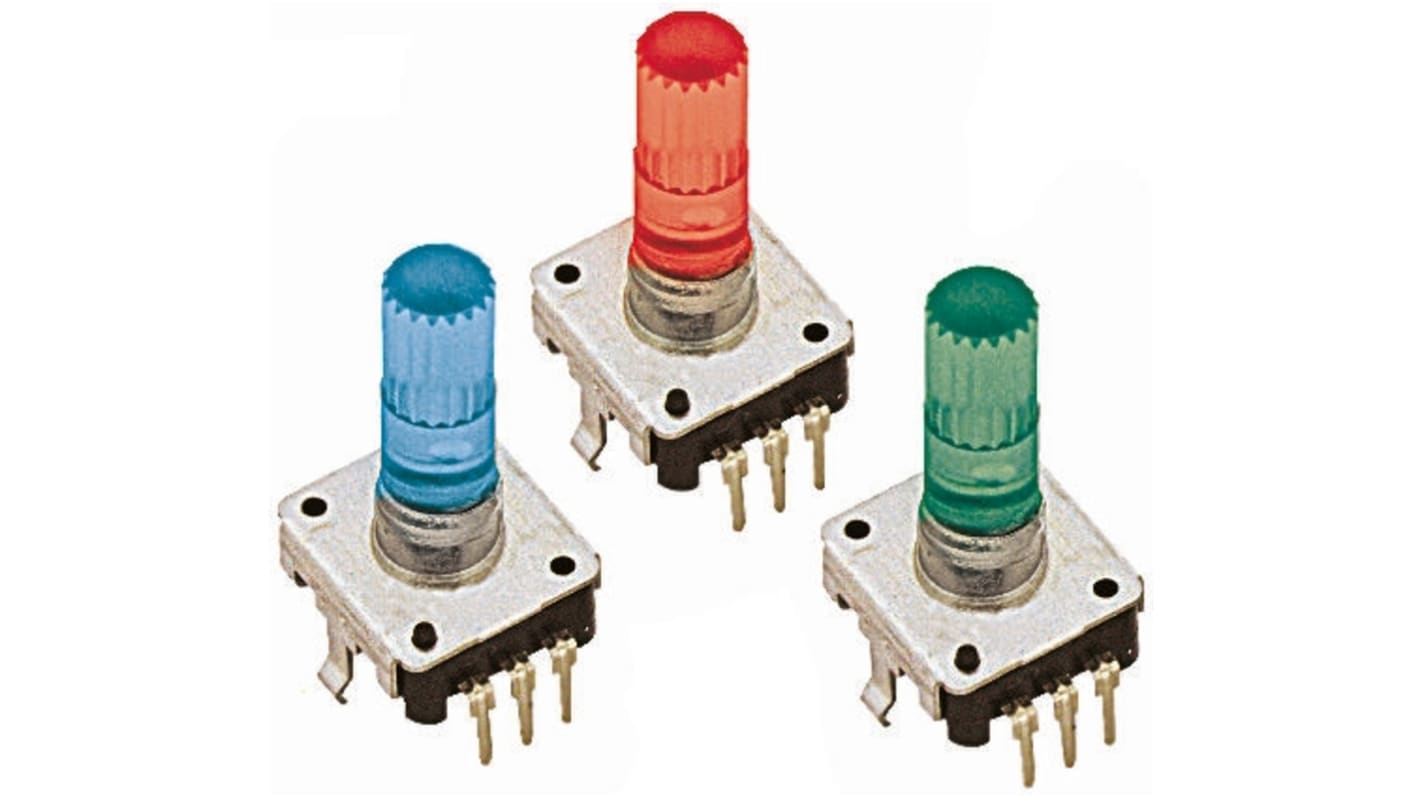

DPL12 12mm illuminated Encoder (Vertical)
Snap-in PCB mountable
Knurled or flatted plastic shaft types
Contacts 100 mΩ max rated at 0.5mA 5Vdc
Optional push switch rated at 10mA 5Vdc
Single LED for non switch types and dual LED for switched types
Insulation resistance 250 Vac 100MΩ min.
Incremental Type
Push on switch option
Various shaft Lengths
LED colour options
Detent options
Knurled or flatted plastic shaft types
Contacts 100 mΩ max rated at 0.5mA 5Vdc
Optional push switch rated at 10mA 5Vdc
Single LED for non switch types and dual LED for switched types
Insulation resistance 250 Vac 100MΩ min.
Incremental Type
Push on switch option
Various shaft Lengths
LED colour options
Detent options
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Pulses Per Revolution | 24 |
| Shaft Style | Flat |
| Shaft Diameter | 6.8 mm |
| Encoder Reading | Incremental |
| Encoder Signal | Digital Square Wave |
| Mounting Type | Through Hole |
| Shaft Length | 21mm |
| Index Output | Not Indexed |
| Maximum Operating Speed | 60rpm |
| Mounting Hole Diameter | 1 mm, 1.1 mm |
