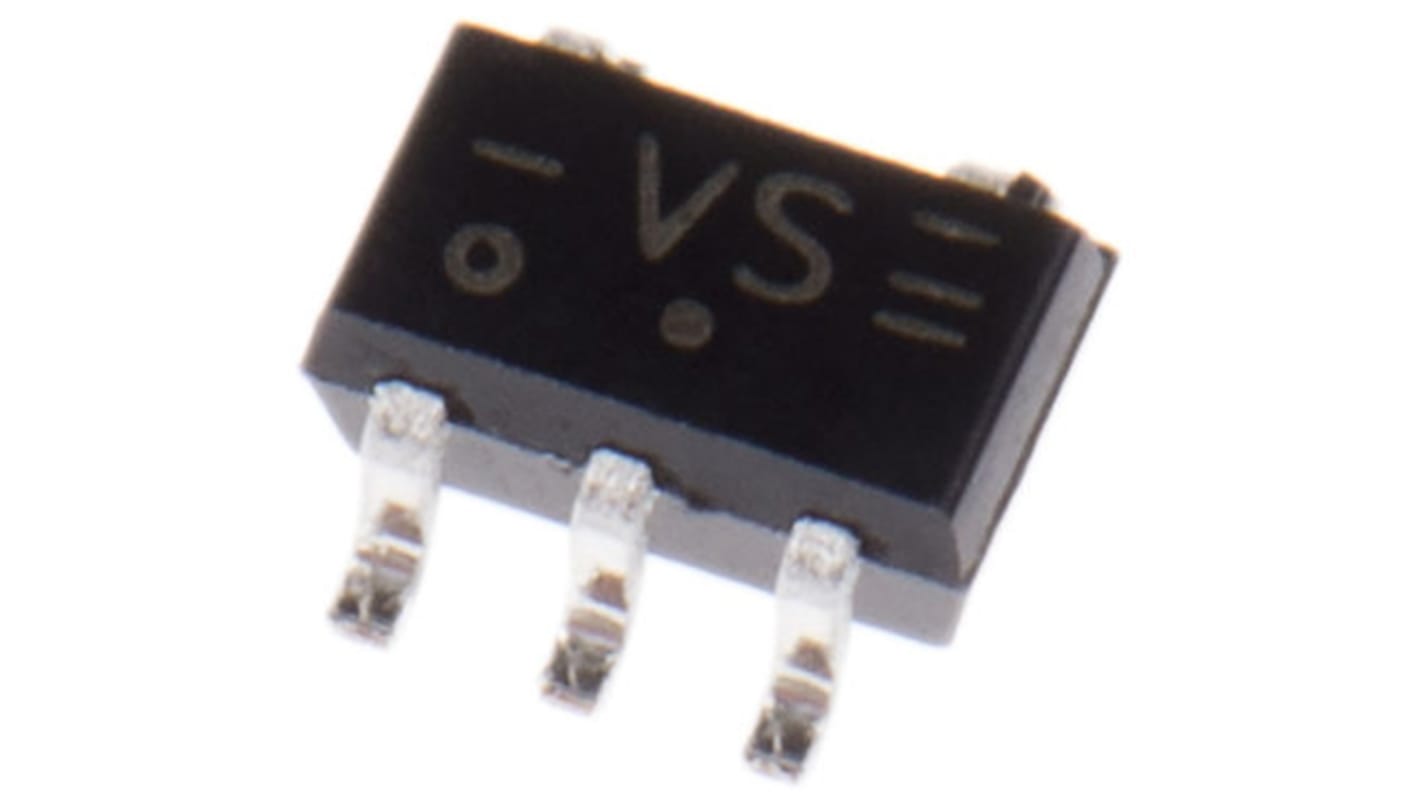

Nexperia 74LVC1G08GW,125 2-Input AND Logic Gate, 5-Pin TSSOP
- RS 제품 번호:
- 510-201
- 제조사 부품 번호:
- 74LVC1G08GW,125
- 제조업체:
- Nexperia
1050 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(50개가 1팩안에)
₩307.032
| 수량 | 한팩당 | 한팩당* |
| 50 - 700 | ₩307.032 | ₩15,308.488 |
| 750 - 1450 | ₩300.133 | ₩15,041.128 |
| 1500 + | ₩294.958 | ₩14,765.144 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 510-201
- 제조사 부품 번호:
- 74LVC1G08GW,125
- 제조업체:
- Nexperia
제정법과 컴플라이언스
제품 세부 사항
74LVC1G/74LVC2G Family
Low-Voltage CMOS logic
Single gate package
Operating Voltage: 1.65 to 5.5 V
Compatibility: Input LVTTL/TTL, Output LVCMOS
Single gate package
Operating Voltage: 1.65 to 5.5 V
Compatibility: Input LVTTL/TTL, Output LVCMOS
74LVC Family
사양
속성 | 값 |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | TSSOP |
| Pin Count | 5 |
| Logic Family | LVC |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -32mA |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Low Level Output Current | 32mA |
| Height | 1mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 2.25 x 1.35 x 1mm |
| Width | 1.35mm |
| Maximum Operating Temperature | +125 °C |
| Propagation Delay Test Condition | 50pF |
| Length | 2.25mm |
