- RS 제품 번호:
- 660-8215P
- 제조사 부품 번호:
- MAX3232CDR
- 제조업체:
- Texas Instruments
995 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당(릴로 공급됨) 150pcs 이하는 STRIP 포장
₩1,440.292
수량 | 한팩당 |
625 - 1245 | ₩1,440.292 |
1250 + | ₩1,417.868 |
- RS 제품 번호:
- 660-8215P
- 제조사 부품 번호:
- MAX3232CDR
- 제조업체:
- Texas Instruments
제정법과 컴플라이언스
제품 세부 사항

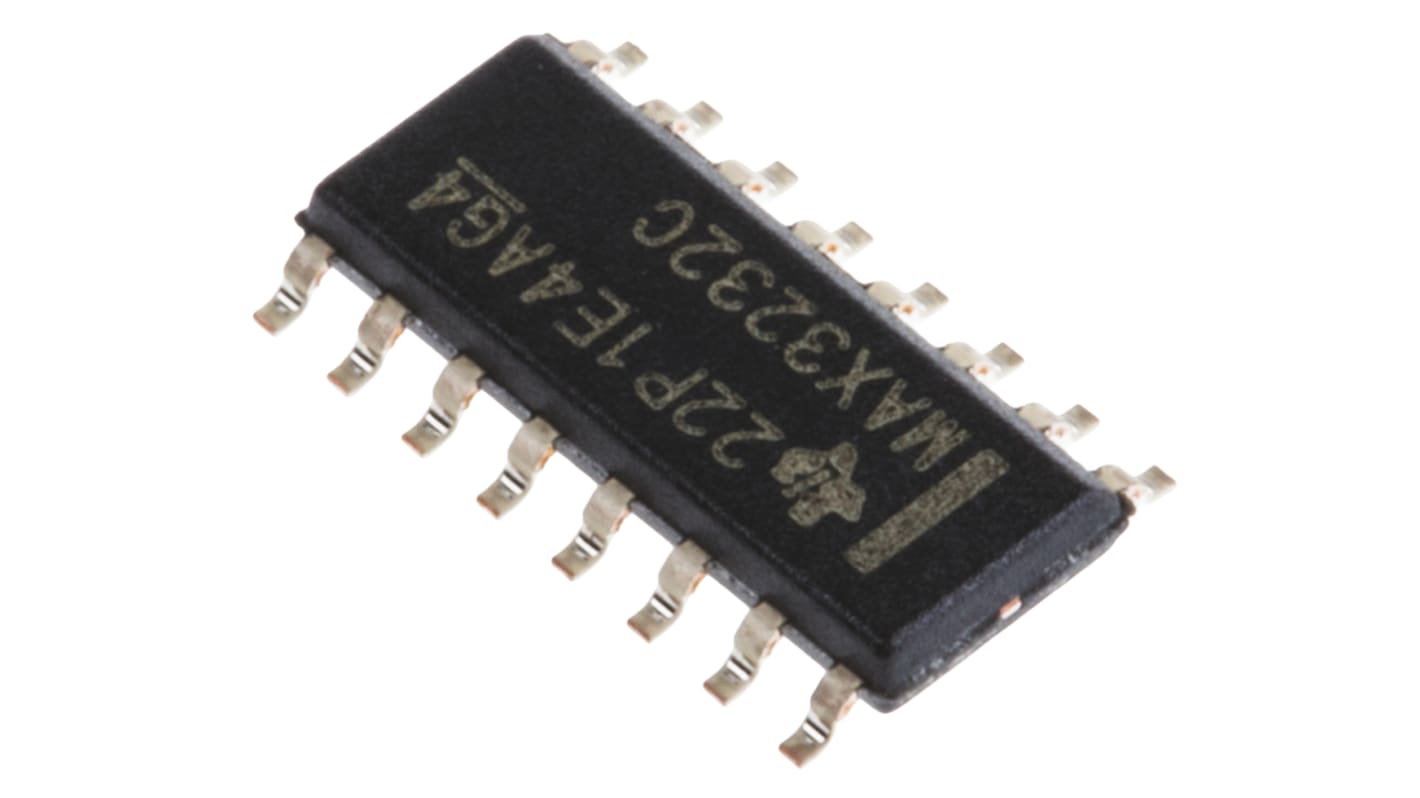

RS-232 Line Transceivers, Dual, Texas Instruments
A range of RS-232 Line Transceivers which meet or exceed the requirements of the TIA/EIA-232-F and ITU v.28 standards. These devices generally include ESD protection of up to ±15 kV (Human-Body Model), ±8 kV (Contact Discharge) and most incorporate charge pump circuitry to allow operation from single 3 V to 5.5 V supplies. Dual transceivers each contain two line drivers and two line receivers and are available with operating speeds of up to 1 Mbps.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
RS-232 Line Drivers and Receivers
사양
속성 | 값 |
---|---|
IC Type | Dual Line Transceiver IC |
Input Type | Single Ended |
Number of Transmitters | 2 |
Mounting Type | Surface Mount |
Package Type | SOIC |
Minimum Operating Temperature | 0 °C |
Pin Count | 16 |
Maximum Operating Temperature | +70 °C |
Dimensions | 9.9 x 3.91 x 1.58mm |
