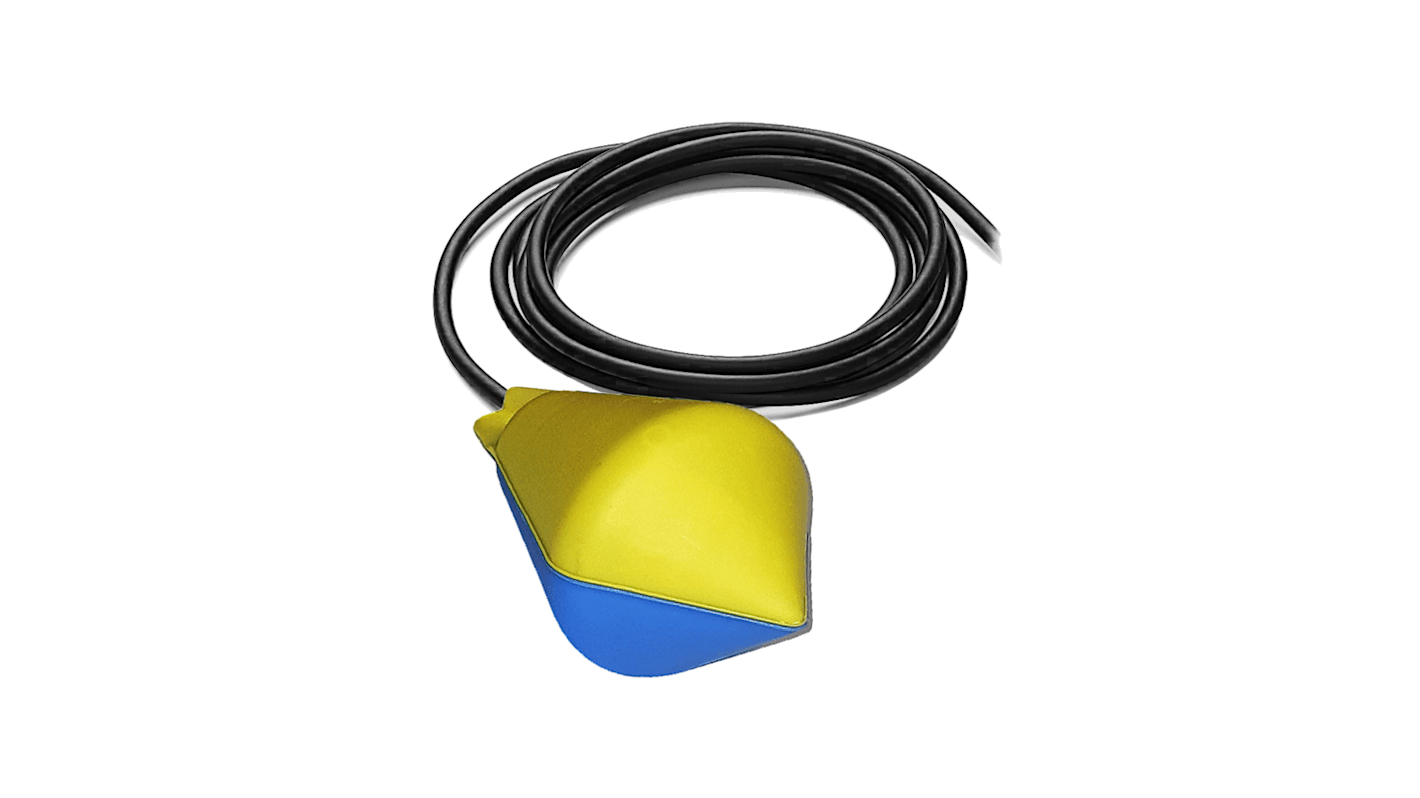

ATMI SOLIBA Series Tilt Level Switch Level Switch, SPDT Output, Cable Mount, Copolymer Polypropylene Body
- RS 제품 번호:
- 208-5497
- 제조사 부품 번호:
- SOLIBA5M
- 제조업체:
- ATMI
현재 시스템 에러로 재고 수량 확인이 불가합니다. krenquiry@rs-components.com 에 문의하시거나 잠시후에 다시 시도해주시기 바랍니다.
추가완료!
단가 개당
₩279,525.22
수량 | 한팩당 |
1 + | ₩279,525.22 |
- RS 제품 번호:
- 208-5497
- 제조사 부품 번호:
- SOLIBA5M
- 제조업체:
- ATMI
제정법과 컴플라이언스
- COO (Country of Origin):
- FR
제품 세부 사항
This tilt level switch has been designed to provide high level measurement in silos or any other type of storage containers located in non-hazardous areas.
Its operation is very simple: Vertically suspended at the desired high level point, the SOLIBA will tilt as the grain reaches the unit.
To secure your facilities at a minimum cost, the installation of a SOLIBA high level mechanical tilt level switch is strongly recommended, even if your facilities are already equipped with other types of equipment such as: rotating paddles, vibrating forks, radars, capacitive and ultrasonic sensors, etc.
The SOLIBA tilt level switch only operates when the high level is reached, unlike other types of level measurement devices that operate permanently
The tilt level switch must be installed at the opposite side of the arrival of grain and at a certain distance from the silo walls. This to ensure an optimal tilting operation.
Its operation is very simple: Vertically suspended at the desired high level point, the SOLIBA will tilt as the grain reaches the unit.
To secure your facilities at a minimum cost, the installation of a SOLIBA high level mechanical tilt level switch is strongly recommended, even if your facilities are already equipped with other types of equipment such as: rotating paddles, vibrating forks, radars, capacitive and ultrasonic sensors, etc.
The SOLIBA tilt level switch only operates when the high level is reached, unlike other types of level measurement devices that operate permanently
The tilt level switch must be installed at the opposite side of the arrival of grain and at a certain distance from the silo walls. This to ensure an optimal tilting operation.
Cut out power 20A
Maximum temperature 85 °C
Protection index IP68
Maximum temperature 85 °C
Protection index IP68
사양
속성 | 값 |
---|---|
Device Type | Tilt Level Switch |
Mounting Type | Cable Mount |
Switch Output | SPDT |
Body Material | Copolymer Polypropylene |
Cable Length | 5m |
Maximum Operating Temperature | +85°C |
Maximum DC Voltage | 250V |
Maximum AC Voltage | 250V |
For Use With | Grains, Solids |
Series | SOLIBA |
