STMicroelectronics STEVAL-ILL054V2, STEVAL LED Driver Evaluation Board for LED2001 for Dimming LED Driver
- RS 제품 번호:
- 196-1801
- 제조사 부품 번호:
- STEVAL-ILL054V2
- 제조업체:
- STMicroelectronics
본 제품은 백오더/선주문 진행으로는 불가한 상황입니다.
죄송합니다만, 본 제품에 대한 재고가 없으며, 현재는 백오더/선주문 진행이 불가합니다.
추가완료!
단가 개당
₩51,819.446
수량 | 한팩당 |
1 - 4 | ₩51,819.446 |
5 + | ₩50,782.781 |
- RS 제품 번호:
- 196-1801
- 제조사 부품 번호:
- STEVAL-ILL054V2
- 제조업체:
- STMicroelectronics
제정법과 컴플라이언스
- COO (Country of Origin):
- IT
제품 세부 사항

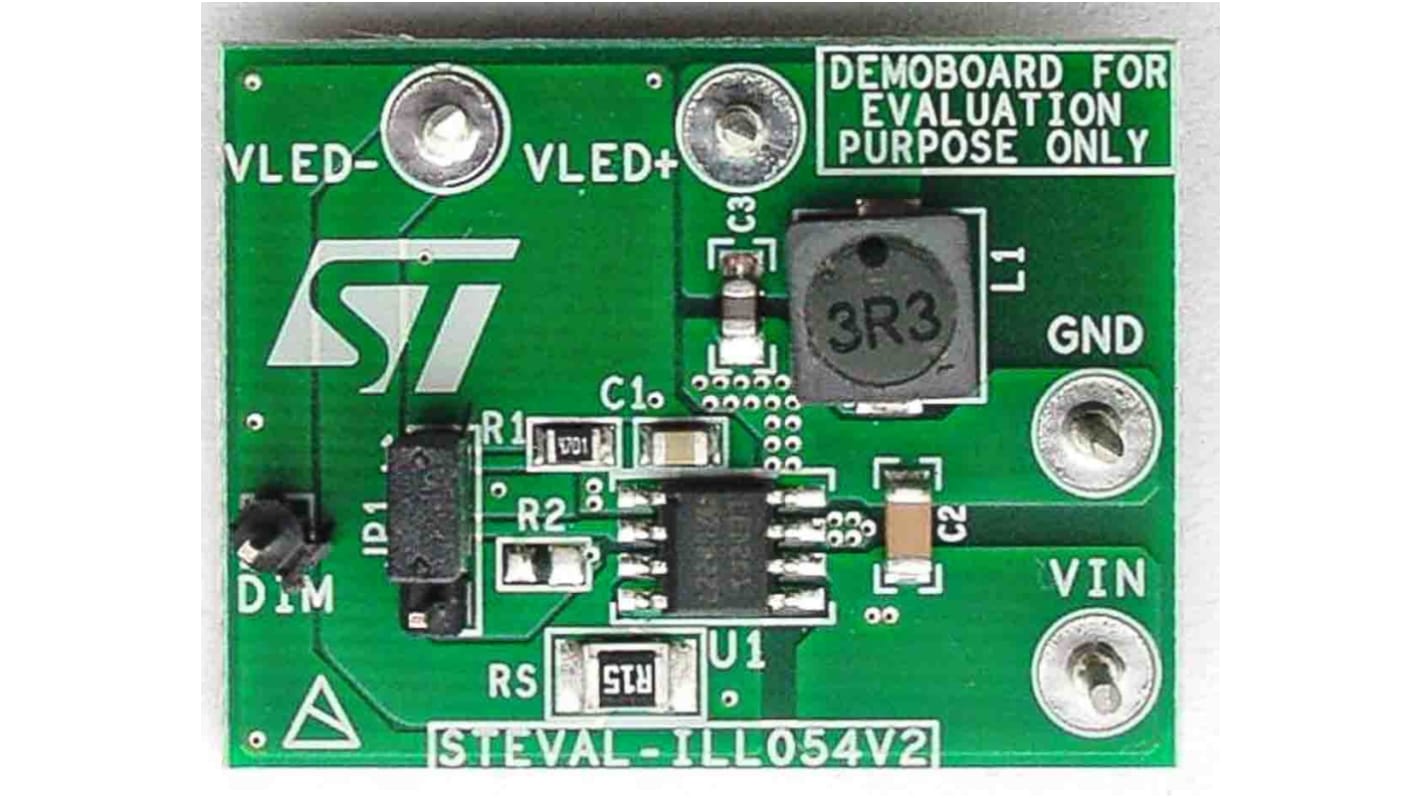

The purpose of the STEVAL-ILL054V2 evaluation board is to aid in the evaluation of the LED2001, an 850 kHz fixed switching frequency monolithic step-down DC-DC converter. The LED2001 is designed to operate as a precise constant current source with an adjustable current capability up to 4 A DC. The embedded PWM dimming circuitry features LED brightness control. The regulated output current is set by connecting a sensing resistor to the feedback pin.
The size of the overall application is minimized thanks to the high switching frequency and ceramic output capacitor compatibility.
The device is fully protected against overheating, overcurrent and output short-circuit.
The size of the overall application is minimized thanks to the high switching frequency and ceramic output capacitor compatibility.
The device is fully protected against overheating, overcurrent and output short-circuit.
3.0 V to 18 V operating input voltage range
850 kHz fixed switching frequency
100 mV typical current sense voltage drop
PWM dimming
±7% output current accuracy
Synchronous rectification
Internal current limiting
Thermal shutdown
850 kHz fixed switching frequency
100 mV typical current sense voltage drop
PWM dimming
±7% output current accuracy
Synchronous rectification
Internal current limiting
Thermal shutdown
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
LED Technology | LED Driver |
Kit Classification | Evaluation Board |
For Use With | Dimming LED Driver |
Featured Device | LED2001 |
Kit Name | STEVAL |
