- RS 제품 번호:
- 781-2986
- 제조사 부품 번호:
- DT018ATFT
- 제조업체:
- Displaytech
일시 품절-다음 입고 날짜는 03/05/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩23,182.656
수량 | 한팩당 |
1 - 49 | ₩23,182.656 |
50 - 99 | ₩22,673.811 |
100 + | ₩22,187.389 |
- RS 제품 번호:
- 781-2986
- 제조사 부품 번호:
- DT018ATFT
- 제조업체:
- Displaytech
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항

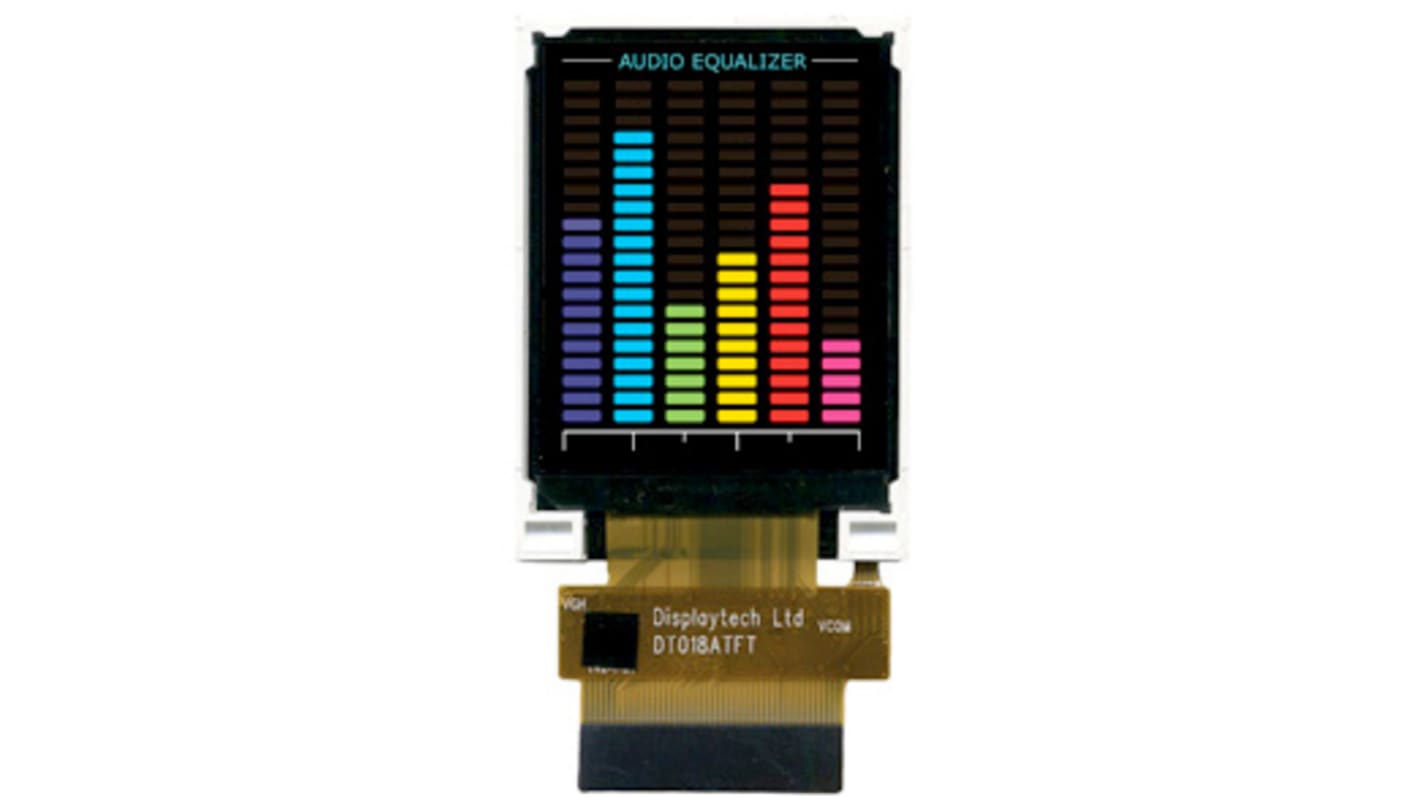

Displaytech TFT LCD Display Modules
Displaytech's TFT LCD display modules are designed to combine performance with value. These reliable TFT LCD modules are suitable for a wide variety of industrial, medical and consumer applications. The driver ICs are mounted directly on to the glass and are as follows:
1.8" TFT (128x160) - driver IC ILI9163C
2.2", 2.4" and 2.8" TFT (240x320) - driver IC ILI9341
3.5" TFT (320x240) - driver IC NT39016D
4.3" TFT (480x272) - driver IC HX8257-A
The DT024DTFT 2.4" module (135-9775) has an IPS display offering improved colour accuracy, a wider viewing angle, and high refresh rate.
1.8" TFT (128x160) - driver IC ILI9163C
2.2", 2.4" and 2.8" TFT (240x320) - driver IC ILI9341
3.5" TFT (320x240) - driver IC NT39016D
4.3" TFT (480x272) - driver IC HX8257-A
The DT024DTFT 2.4" module (135-9775) has an IPS display offering improved colour accuracy, a wider viewing angle, and high refresh rate.
Transmissive TFT LCD display modules
LED backlight
DC voltage input
Connection to drive the display module is via FPC (Flexible Printed Circuit)
Operating temperature range: -20 to +70°C
Viewing direction: 6 oclock (DT035TFT and DT035TFT-TS are: 12 oclock)
Touch screen versions come fitted with a 4 wire resistive touch screen
LED backlight
DC voltage input
Connection to drive the display module is via FPC (Flexible Printed Circuit)
Operating temperature range: -20 to +70°C
Viewing direction: 6 oclock (DT035TFT and DT035TFT-TS are: 12 oclock)
Touch screen versions come fitted with a 4 wire resistive touch screen
Note
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Displaytech Colour LCD Graphic Dispalys
사양
속성 | 값 |
---|---|
Diagonal Display Size | 1.8in |
Interface Type | Parallel, RGB |
Resolution | 128 x 160pixels |
Touch Screen | No |
Viewing Area Dimensions | 35 x 32mm |
Touch Screen Type | None |
Supply Voltage | -0.3 → +4.6 V dc |
Backlight Type | LED |
Display Mode | Transmissive |
AC or DC Input Voltage | dc |
Dimensions | 46.7 x 34 x 2.7mm |
Display Matrix Technology | TFT |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +70°C |
Brightness | 280cd/m² |
Depth | 2.7mm |
Response Time | 20ms |
Width | 34mm |
Number of Colours | 262,144 |
Operating Temperature Range | -20 → +70°C |
Viewing Area Width | 31.9mm |
Viewing Area Height | 35.04mm |
Contrast Ratio | 350:1 |
Height | 46.7mm |
