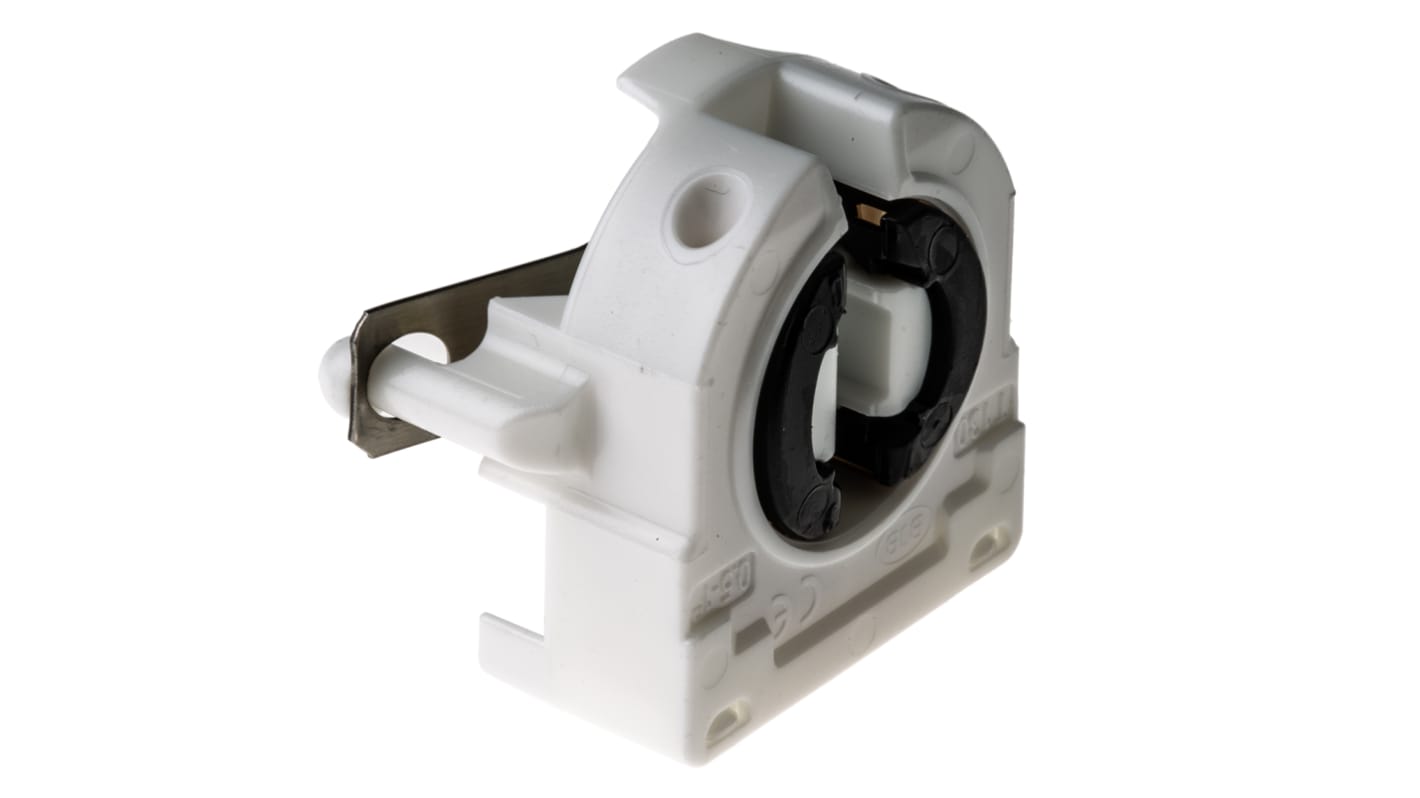

Fluorescent T8/T12 Lamp Holder Snap-Fit - 26.422.1113.50
- RS 제품 번호:
- 561-943
- 제조사 부품 번호:
- 26.422.1113.50
- 제조업체:
- BJB
20 개 홍콩에 재고-결제 확인후 2-3영업일내 국내 도착
4250 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(10개가 1팩안에)
₩1,600.707
| 수량 | 한팩당 | 한팩당* |
| 10 + | ₩1,600.707 | ₩16,007.072 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 561-943
- 제조사 부품 번호:
- 26.422.1113.50
- 제조업체:
- BJB
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
T8/T12 Snap-Fit, Back Mount
Snap in pins with spring
Lamp base T8 / T12
T-Marking 130
Wiring: through the body
Max temperature at air pass rotor: 130°C
Max temperature at rear: 110C
Material: PC
Lamp base T8 / T12
T-Marking 130
Wiring: through the body
Max temperature at air pass rotor: 130°C
Max temperature at rear: 110C
Material: PC
T8/T12 Snap-Fit, Back Mount Lamp Holder
Our range of fluorescent lighting components provides replacements and solutions to ensure that fittings can be repaired or replaced with ease. These T8/T12 fixing brackets are designed for end-mounting lamp holders and made of polycarbonate with through the body wiring. Making them ideal components to make up custom built assemblies as this sprung snap fit lamp holder, provides a lamp length tolerance compensation of 2 mm.
Product Application Information
Suited to almost all lighting schemes installed in commercial and industrial premises. Ideal for custom built assemblies using T12 and T8 standard fluorescents, circular fluorescents and 2D lamps.
사양
속성 | 값 |
|---|---|
| Supported Lamp Type | Fluorescent |
| Base | G13 |
| Lamp Size | T8/T12 |
| Material | PC |
| Fixing Method | Snap-Fit |
| Number of Pins | 2 |
| Wattage | 660 W |
| Wiring Points | Bottom |
| Length | 24.8 mm |
| Width | 13 mm |
| Wiring Type | Push-Wire |
