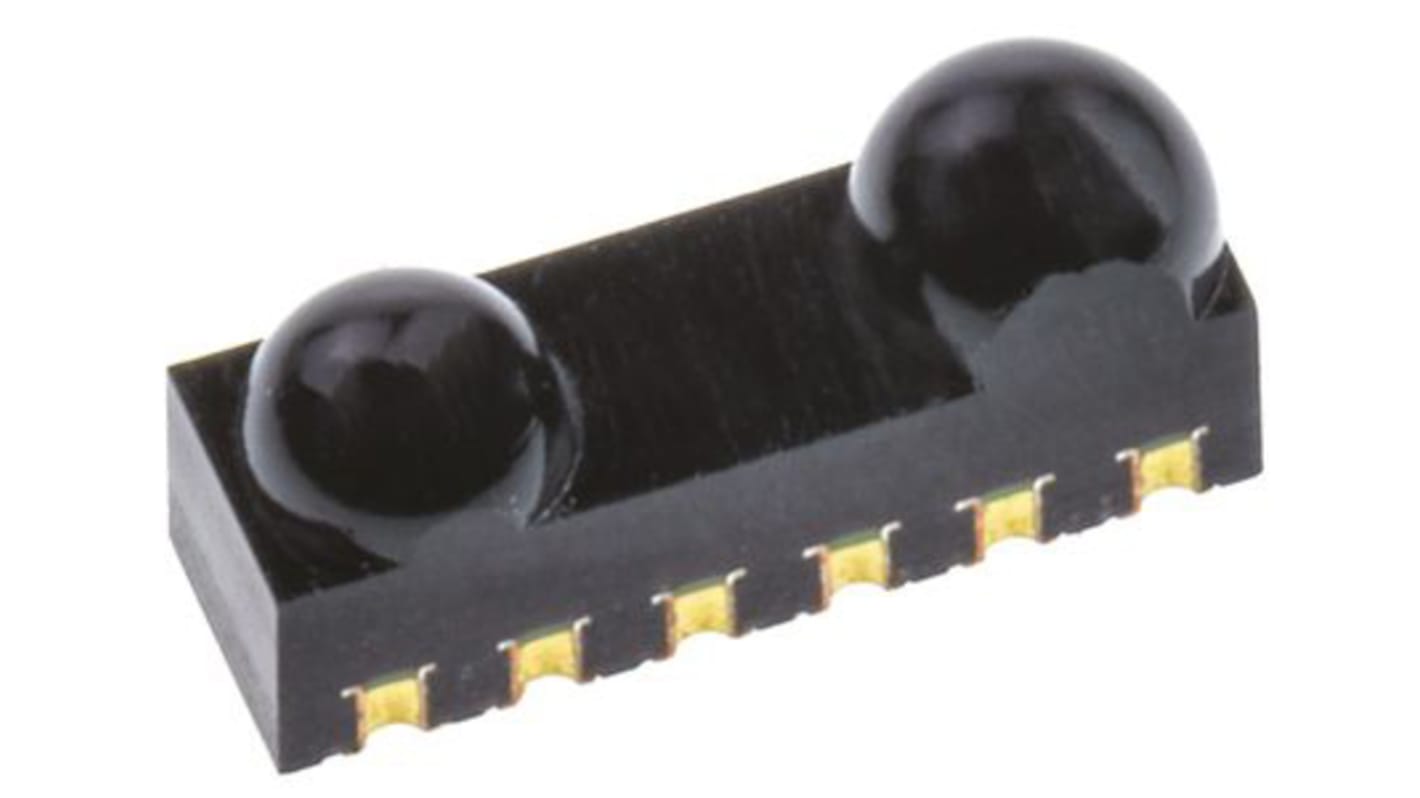

TFBS4711-TT1 Vishay, Infrared Transceiver, 900nm 115.2kbit/s, 8m Range, SMT, 6 x 3.1 x 1.9mm
- RS 제품 번호:
- 919-0742
- 제조사 부품 번호:
- TFBS4711-TT1
- 제조업체:
- Vishay
1000 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(1000개가 1릴안에)
₩3,225.563
| 수량 | 한팩당 | Per Reel* |
| 1000 - 1000 | ₩3,225.563 | ₩3,226,080.47 |
| 2000 - 3000 | ₩3,161.742 | ₩3,161,569.21 |
| 4000 + | ₩3,097.92 | ₩3,098,265.38 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 919-0742
- 제조사 부품 번호:
- TFBS4711-TT1
- 제조업체:
- Vishay
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- MY
제품 세부 사항
IrDA Transceiver Modules
Integral metal EMI shield
Internal echo-cancel function
Suitable for reflow soldering
Internal echo-cancel function
Suitable for reflow soldering
The TFBS4711 is a low profile, infrared data transceiver module. It supports IrDA® data rates up to 115.2 kbit/s (SIR). The transceiver module consists of a PIN photodiode, an infrared emitter (IRED), and a low-power CMOS control IC to provide a total front-end solution in a single package.
The device is designed for the low power IrDA standard with an extended range on-axis up to 1 m. The RXD output pulse width is independent of the optical input pulse width and stays always at a fixed pulse width thus making the device optimum for standard endecs. TFBS4711 has a tri-state output and is floating in shut-down mode with a weak pull-up. The shut down (SD) feature cuts current consumption to typically 10 nA.
The device is designed for the low power IrDA standard with an extended range on-axis up to 1 m. The RXD output pulse width is independent of the optical input pulse width and stays always at a fixed pulse width thus making the device optimum for standard endecs. TFBS4711 has a tri-state output and is floating in shut-down mode with a weak pull-up. The shut down (SD) feature cuts current consumption to typically 10 nA.
FEATURES
• Compliant with the latest IrDA physical layer low power specification (9.6 kbit/s to 115.2 kbit/s)
• Small package (H x L x W in mm): 1.9 x 6 x 3
• Typical link distance on-axis up to 1 m
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Transceivers
사양
속성 | 값 |
|---|---|
| Maximum Transmission Distance | 8m |
| Emitter Peak Wavelength | 900nm |
| Maximum Data Receiving Rate | 115.2kbit/s |
| Mounting Type | Surface Mount |
| Number of Pins | 6 |
| Package Type | SMD |
| Dimensions | 6 x 3.1 x 1.9mm |
| Height | 3mm |
| Length | 6mm |
| Width | 1.9mm |
