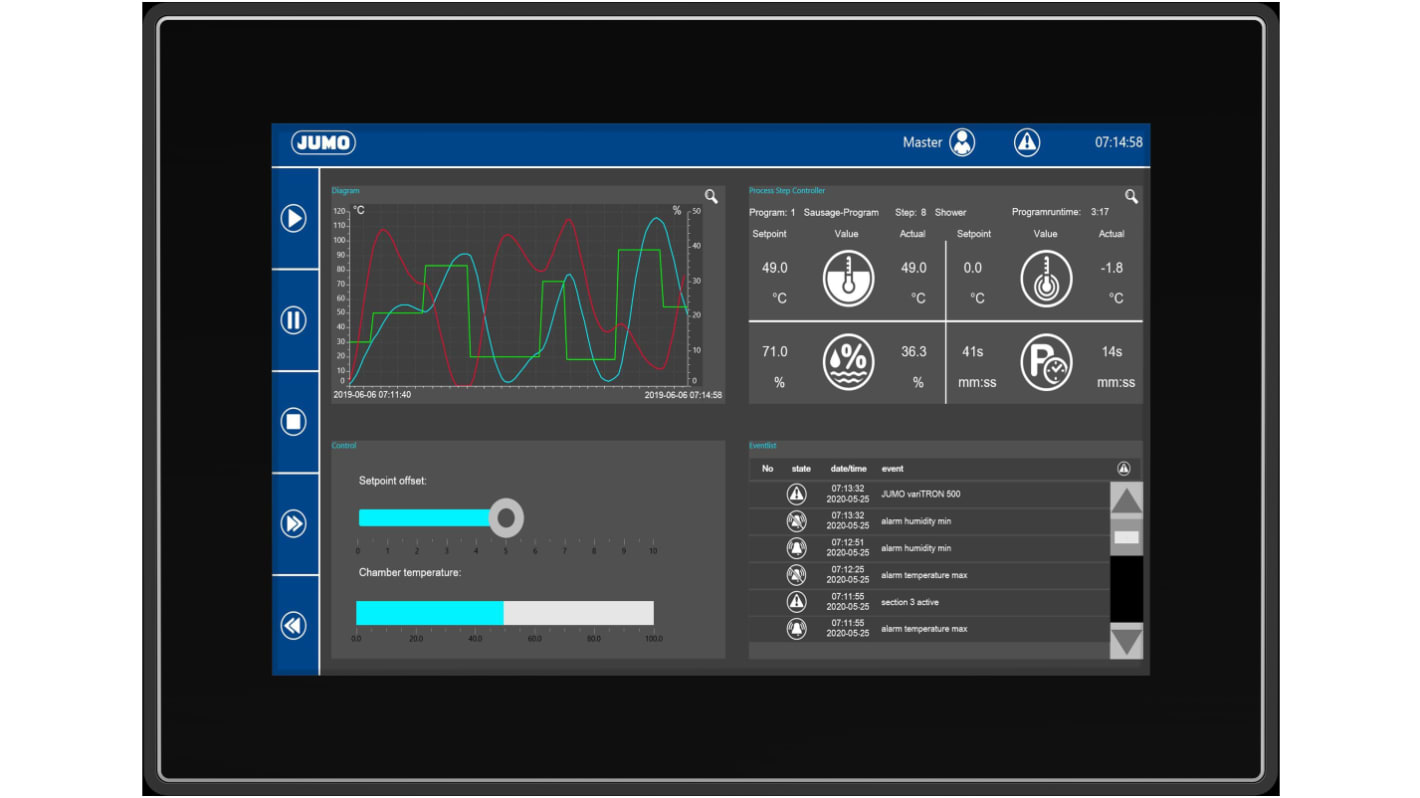

Jumo variTRON eX707 Series HMI Panel - 7 in, TFT Display, 800 x 480pixels
- RS 제품 번호:
- 244-0361
- 제조사 부품 번호:
- 705070/1-8-10-1-41/061,062
- 제조업체:
- Jumo
- RS 제품 번호:
- 244-0361
- 제조사 부품 번호:
- 705070/1-8-10-1-41/061,062
- 제조업체:
- Jumo
제정법과 컴플라이언스
비준수
- COO (Country of Origin):
- DE
제품 세부 사항
The JUMO the web panels are simply connected to the JUMO variTRON automation system via Ethernet. They support CODESYS Remote TargetVisu or WebVisu. Visualizations created with CODESYS can be displayed on the web panels and used to operate the system. The capacitive touchscreens are available in different sizes and resolutions.
TFT color screen, resistive or capacitive
Multi-touch operation (capacitive), also with gloves
Screen sizes (diagonal) from 10.9 cm (4.3'') to 54.6 cm (21.5'')
Screen resolutions from 480 x 272 to 1920 x 1080
Panel mounting or variable fastening
Connection to the central processing unit via Ethernet interface
Voltage supply DC 24 V or PoE
Versions for food industry
UL and DNV GL approval (type dependent)
Multi-touch operation (capacitive), also with gloves
Screen sizes (diagonal) from 10.9 cm (4.3'') to 54.6 cm (21.5'')
Screen resolutions from 480 x 272 to 1920 x 1080
Panel mounting or variable fastening
Connection to the central processing unit via Ethernet interface
Voltage supply DC 24 V or PoE
Versions for food industry
UL and DNV GL approval (type dependent)
사양
속성 | 값 |
|---|---|
| Manufacturer Series | variTRON eX707 |
| Display Type | TFT |
| Manufacturer Part No. | 705070/1-8-10-1-41/061,062 |
| Display Resolution | 800 x 480pixels |
| Backlighting | Yes |
| Supply Voltage | 10 → 32 V dc |
| IP Rating | IP66 |
| Minimum Operating Temperature | -20°C |
| Depth | 47mm |
| Maximum Operating Temperature | +60°C |
| Dimensions | 187 x 147 x 47 mm |
| Interface | Ethernet, USB |
| Display Colour | Colour |
| Width | 147mm |
| Display Size | 7 in |
| Length | 187mm |
