- RS 제품 번호:
- 173-0875
- 제조사 부품 번호:
- S0971-46R
- 제조업체:
- HARWIN
5000 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(5000개가 1릴안에)
₩222.512
수량 | 한팩당 | Per Reel* |
5000 - 20000 | ₩222.512 | ₩1,114,285.40 |
25000 + | ₩200.088 | ₩1,003,029.35 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 173-0875
- 제조사 부품 번호:
- S0971-46R
- 제조업체:
- HARWIN
제정법과 컴플라이언스
- COO (Country of Origin):
- TW
제품 세부 사항

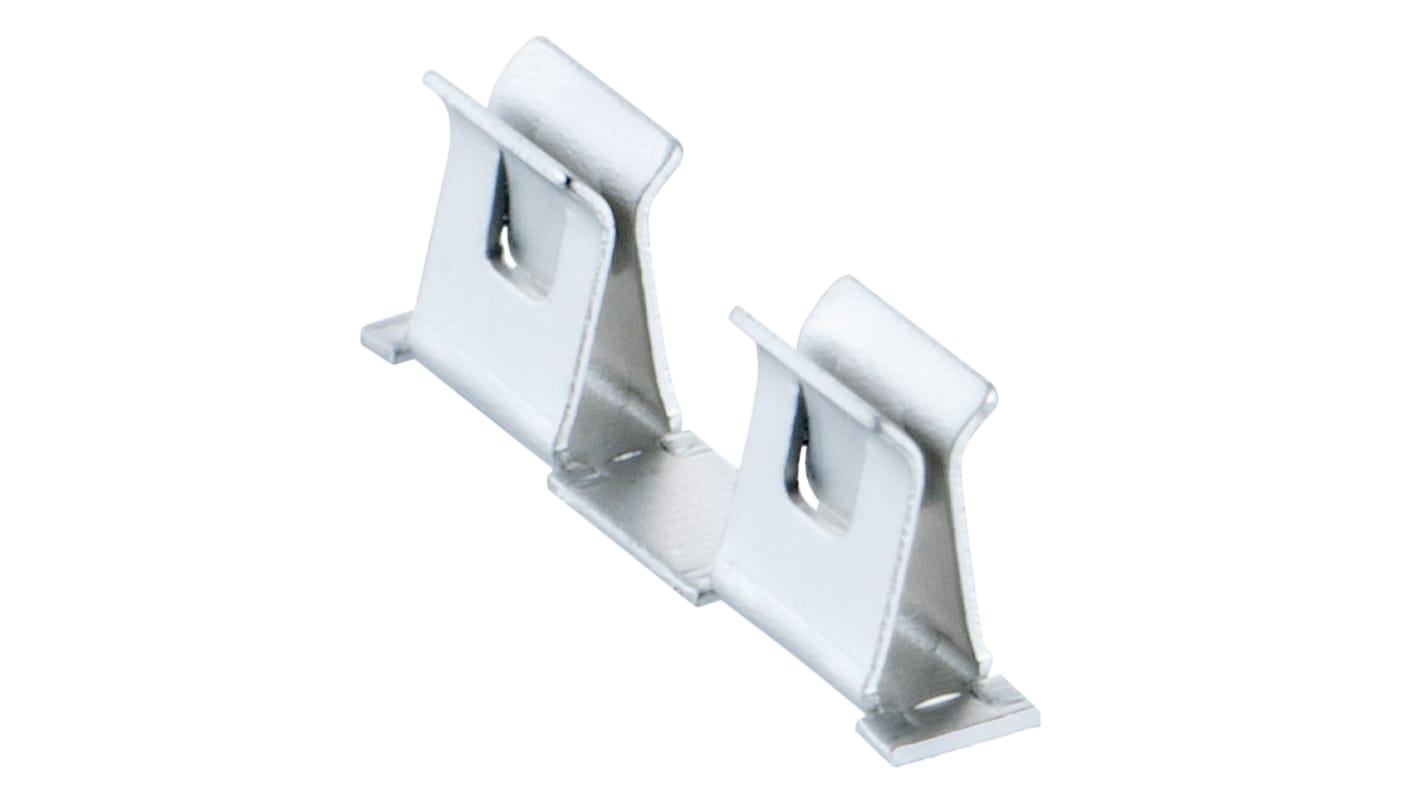

Harwin EZ Boardware SMT RFI Shield Clips
EZ-BoardWare SMT mounting shield clips that provide a fast solution for assembling an RFI shield can to a PCB. These SMT shield clips allow for space saving on the PCB and avoid the need for the RFI shield can to be soldered direct onto the PCB thus reducing PCB assembly costs. The RFI shield can is able to be easily removed for maintenance or repair. These EZ-BoardWare RFI shield clips are suitable for a wide range of shield can thicknesses with various plating options.
Stock number 788-4805 is a Mini RFI shield clip for use with a shield thickness of 0.13-0.23mm and is made from beryllium copper with a tin plating
Stock number 909-4473 is a Mini RFI shield clip for use with a shield thickness of 0.13-0.23mm and is made from stainless steel with a tin plating
Stock number 788-4824 is a Midi RFI shield clip for use with a shield thickness of 0.17-0.3mm and is made from cupro-nickel with a tin plating
Stock number 788-4795 is a Midi RFI shield clip for use with a shield thickness of 0.17-0.3mm and is made from beryllium copper with a tin plating
Stock number 788-4808 is a Maxi RFI shield clip for use with a shield thickness of 0.7-1.0mm and is made from beryllium copper with a tin plating
Stock number 788-4805 is a Mini RFI shield clip for use with a shield thickness of 0.13-0.23mm and is made from beryllium copper with a tin plating
Stock number 909-4473 is a Mini RFI shield clip for use with a shield thickness of 0.13-0.23mm and is made from stainless steel with a tin plating
Stock number 788-4824 is a Midi RFI shield clip for use with a shield thickness of 0.17-0.3mm and is made from cupro-nickel with a tin plating
Stock number 788-4795 is a Midi RFI shield clip for use with a shield thickness of 0.17-0.3mm and is made from beryllium copper with a tin plating
Stock number 788-4808 is a Maxi RFI shield clip for use with a shield thickness of 0.7-1.0mm and is made from beryllium copper with a tin plating
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Material | Stainless Steel |
Fixing Method | Surface Mount |
Contact Resistance | 100mΩ |
Dimensions | 5.92 x 1.1 x 2.1mm |
Height | 2.1mm |
Length | 5.92mm |
Width | 1.1mm |
