- RS 제품 번호:
- 257-6944
- 제조사 부품 번호:
- VO3120-X007T
- 제조업체:
- Vishay
일시 품절-다음 입고 날짜는 04/04/2025 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(1000개가 1릴안에)
₩1,423.043
수량 | 한팩당 | Per Reel* |
1000 + | ₩1,423.043 | ₩1,422,352.54 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 257-6944
- 제조사 부품 번호:
- VO3120-X007T
- 제조업체:
- Vishay
제정법과 컴플라이언스
제품 세부 사항

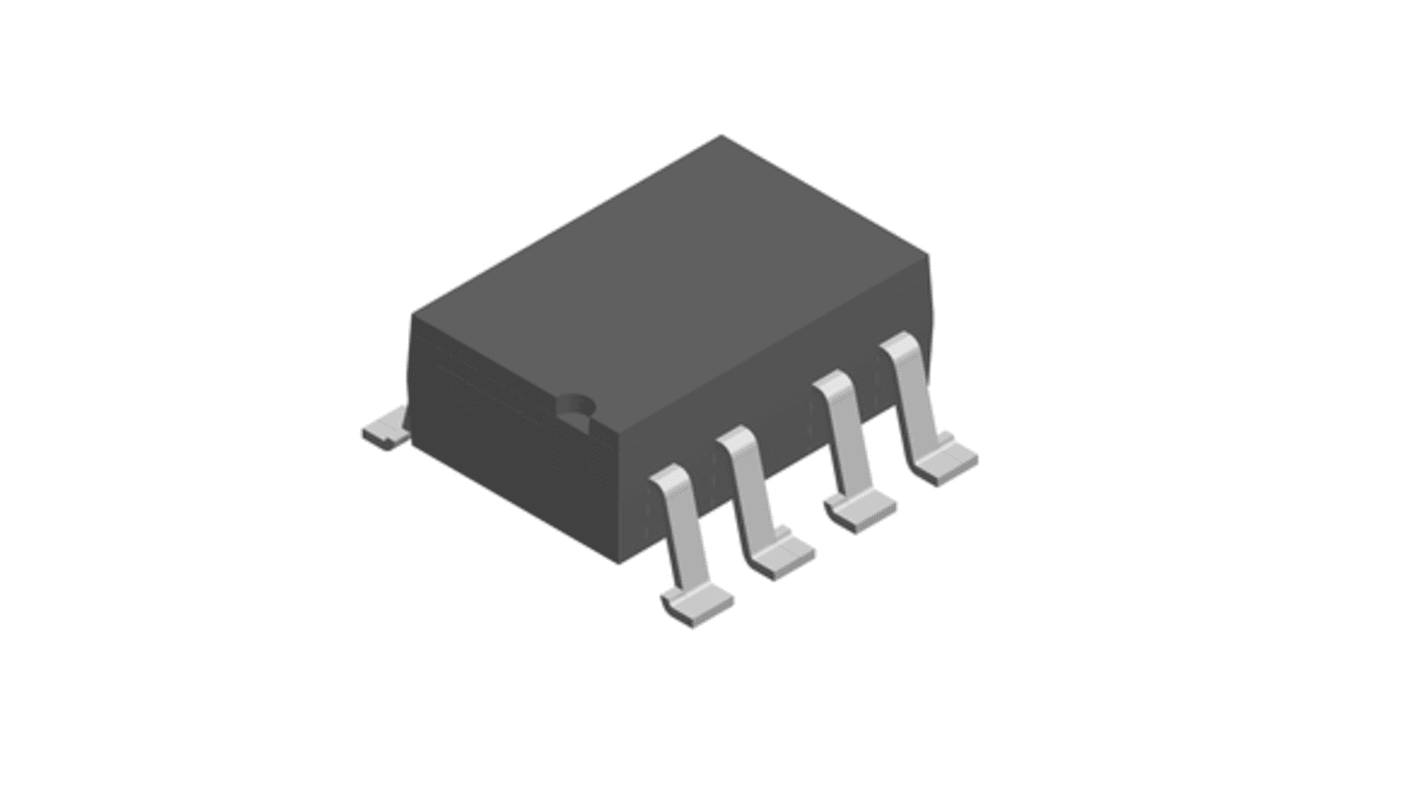

The Vishay VO3120 IGBT and MOSFET driver consists of a LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by this optocoupler makes it ideally suited for directly driving IGBTs with ratings up to 800 V/50 A. For IGBTs with higher ratings, the VO3120 can be used to drive a discrete power stage which drives the IGBT gate.
2.5 A minimum peak output current
25 kV/μs minimum common mode rejection,(CMR) at VCM = 1500 V
ICC = 2.5 mA maximum supply current
Under voltage lock-out (UVLO) with hysteresis
Wide operating VCC range: 15 V to 32 V
0.2 μs maximum pulse width distortion
I
25 kV/μs minimum common mode rejection,(CMR) at VCM = 1500 V
ICC = 2.5 mA maximum supply current
Under voltage lock-out (UVLO) with hysteresis
Wide operating VCC range: 15 V to 32 V
0.2 μs maximum pulse width distortion
I
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Output Current | 2.5 A |
Supply Voltage | 5V |
Pin Count | 8 |
Fall Time | 0.1µs |
Package Type | SMD-8 |
