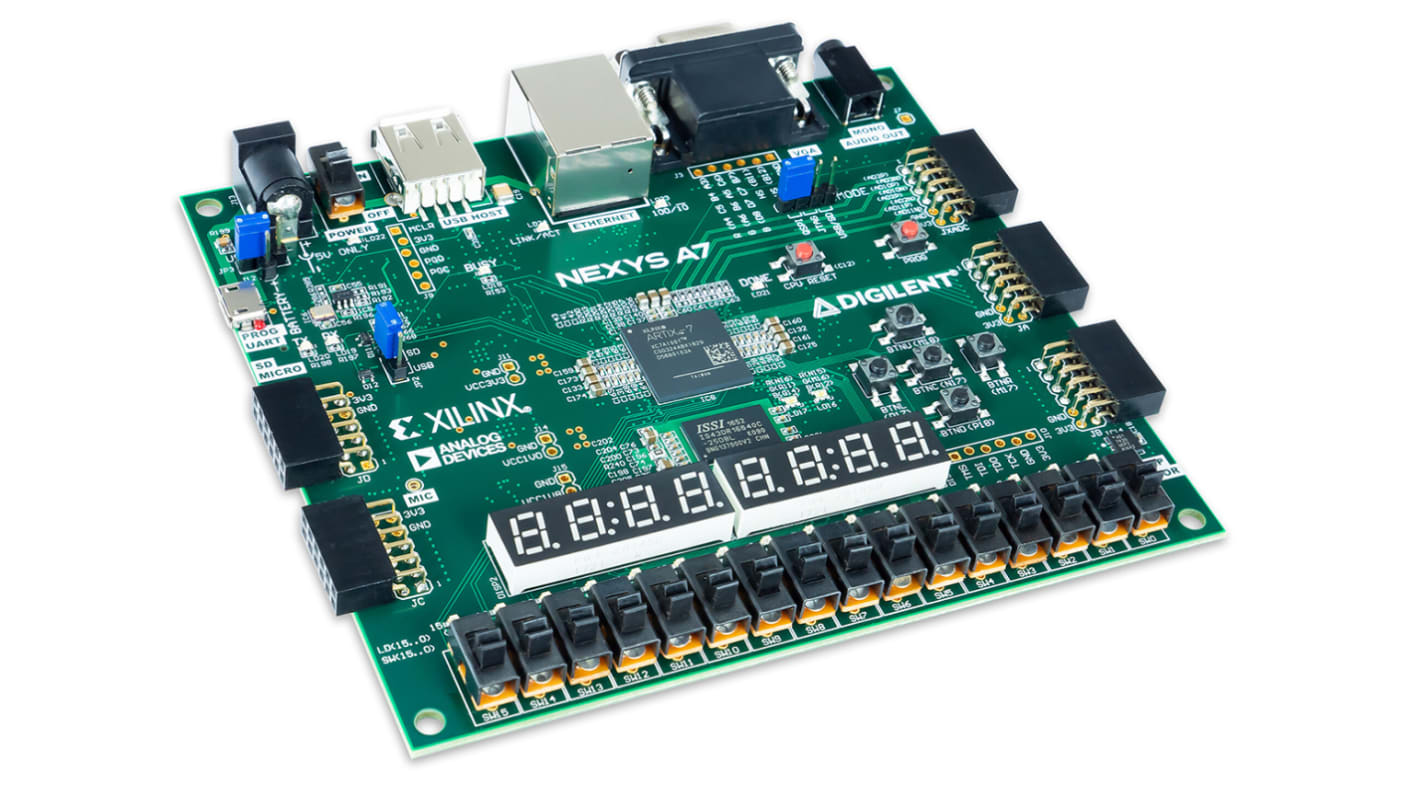

Digilent 410-292-1 to Nexys A7-50T FPGA Trainer Board Recommended for ECE Curriculum Development Board for Nexys 4 DDR
- RS 제품 번호:
- 193-2597
- 제조사 부품 번호:
- 410-292-1 to Nexys A7-50T
- 제조업체:
- Digilent
단종
- RS 제품 번호:
- 193-2597
- 제조사 부품 번호:
- 410-292-1 to Nexys A7-50T
- 제조업체:
- Digilent
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- TW
제품 세부 사항
Xilinx Artix-7 FPGA XC7A100T-1CSG324C or XC7A50T-1CSG324C
15,850 logic slices, each with four 6-input LUTs and 8 flip-flops (8,150 logic slices for the A7-50T)
4,860 Kbits of fast block RAM (2,700 Kbits for the A7-50T)
Six clock management tiles, each with phase-locked loop (PLL) (5 clock management tiles for the A7-50T)
240 DSP slices (120 DSP slices for A7-50T)
Internal clock speeds exceeding 450 MHz
On-chip analog-to-digital converter (XADC)
128 MB DDR2
Serial Flash
Digilent USB-JTAG port for FPGA programming and communication
microSD card connector
Ships with rugged plastic case and USB cable
USB-UART Bridge
10/100 Ethernet PHY
PWM audio output
3-axis accelerometer
16 user switches
16 user LEDs
Two tri-color LEDs
PDM microphone
Temperature sensor
Two 4-digit 7-segment displays
USB HID Host for mice, keyboards and memory sticks
Pmod for XADC signals
12-bit VGA output
Four Pmod ports
15,850 logic slices, each with four 6-input LUTs and 8 flip-flops (8,150 logic slices for the A7-50T)
4,860 Kbits of fast block RAM (2,700 Kbits for the A7-50T)
Six clock management tiles, each with phase-locked loop (PLL) (5 clock management tiles for the A7-50T)
240 DSP slices (120 DSP slices for A7-50T)
Internal clock speeds exceeding 450 MHz
On-chip analog-to-digital converter (XADC)
128 MB DDR2
Serial Flash
Digilent USB-JTAG port for FPGA programming and communication
microSD card connector
Ships with rugged plastic case and USB cable
USB-UART Bridge
10/100 Ethernet PHY
PWM audio output
3-axis accelerometer
16 user switches
16 user LEDs
Two tri-color LEDs
PDM microphone
Temperature sensor
Two 4-digit 7-segment displays
USB HID Host for mice, keyboards and memory sticks
Pmod for XADC signals
12-bit VGA output
Four Pmod ports
사양
속성 | 값 |
---|---|
Classification | Trainer Board |
Programmable Logic Technology | FPGA |
Kit Classification | Development Board |
For Use With | Nexys 4 DDR Board |
Kit Name | FPGA Trainer Board Recommended for ECE Curriculum |
