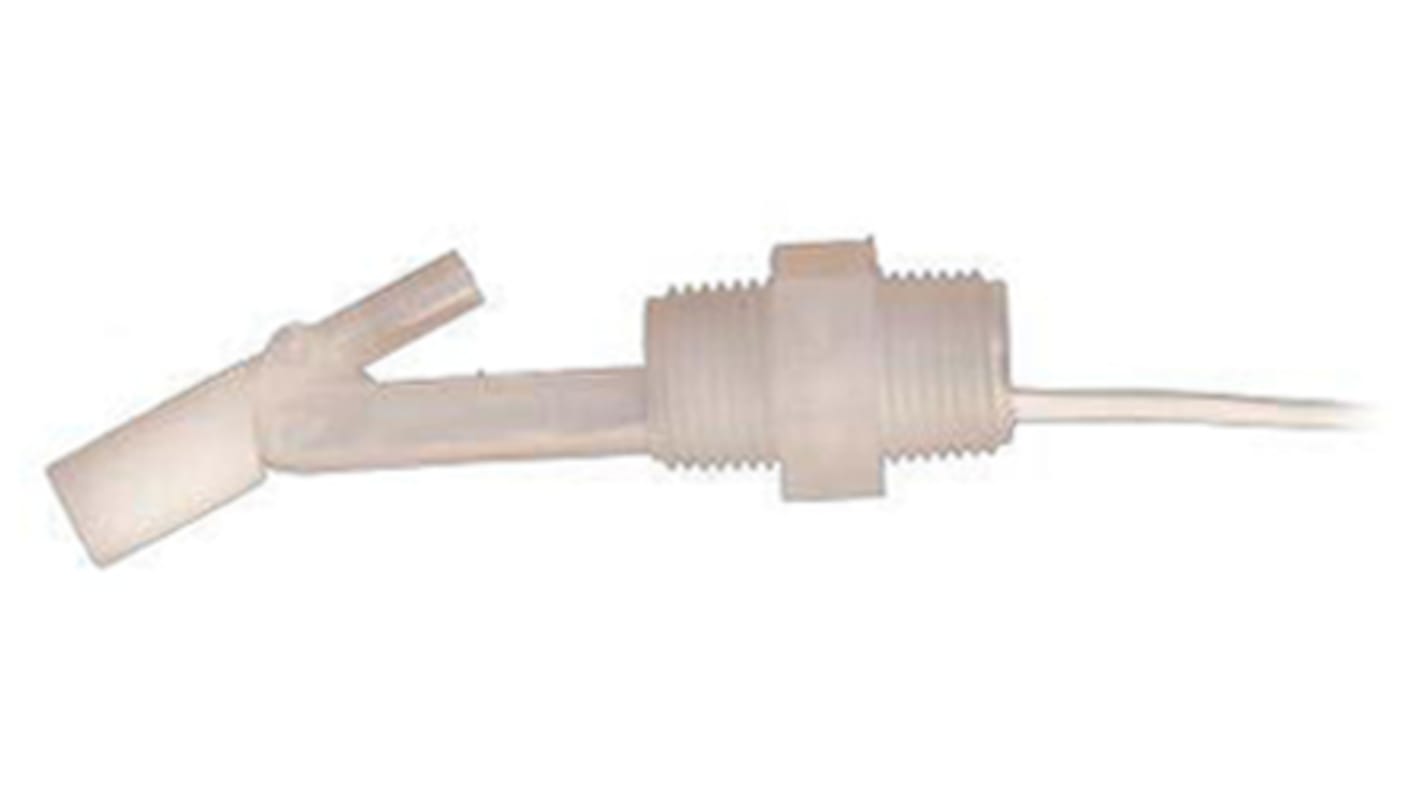

Flowline Switch-Tek Series Vertical Polypropylene Float Switch, Float Level Switch, 600mm Cable, NO/NC, 120V ac Max,
- RS 제품 번호:
- 889-1514
- 제조사 부품 번호:
- LH25-1201
- 제조업체:
- Flowline
- RS 제품 번호:
- 889-1514
- 제조사 부품 번호:
- LH25-1201
- 제조업체:
- Flowline
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- US
제품 세부 사항
Flowline Horizontal Float Level Switch
General purpose horizontal float level switches provide the user with a reliable and durable level switching device. Suitable for liquid level detection applications such as clean water & chemical solutions.
Cost effective reliable vertical switch solution for basic liquid level detection applications
Quick & simple installation
Can be directly wired into external monitoring products such as PLCs & SCADA
NO or NC selectable reed switch via float orientation
Quick & simple installation
Can be directly wired into external monitoring products such as PLCs & SCADA
NO or NC selectable reed switch via float orientation
사양
속성 | 값 |
|---|---|
| Device Type | Float Level Switch |
| Mounting Type | Vertical |
| Switch Output | NO/NC |
| Body Material | Polypropylene |
| Cable Length | 600mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Maximum AC Voltage | 120V |
| Maximum DC Voltage | 120V |
| Maximum Current | 10 A |
| Maximum Pressure | 100psi |
| Series | Switch-Tek |
| Standards Met | CE |
