RS PRO Fibre Optic Sensor, NPN-NO, PNP-NC Output, IP65, 12 → 24 V dc
- RS 제품 번호:
- 896-7305
- 제조업체:
- RS PRO
- RS 제품 번호:
- 896-7305
- 제조업체:
- RS PRO
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항

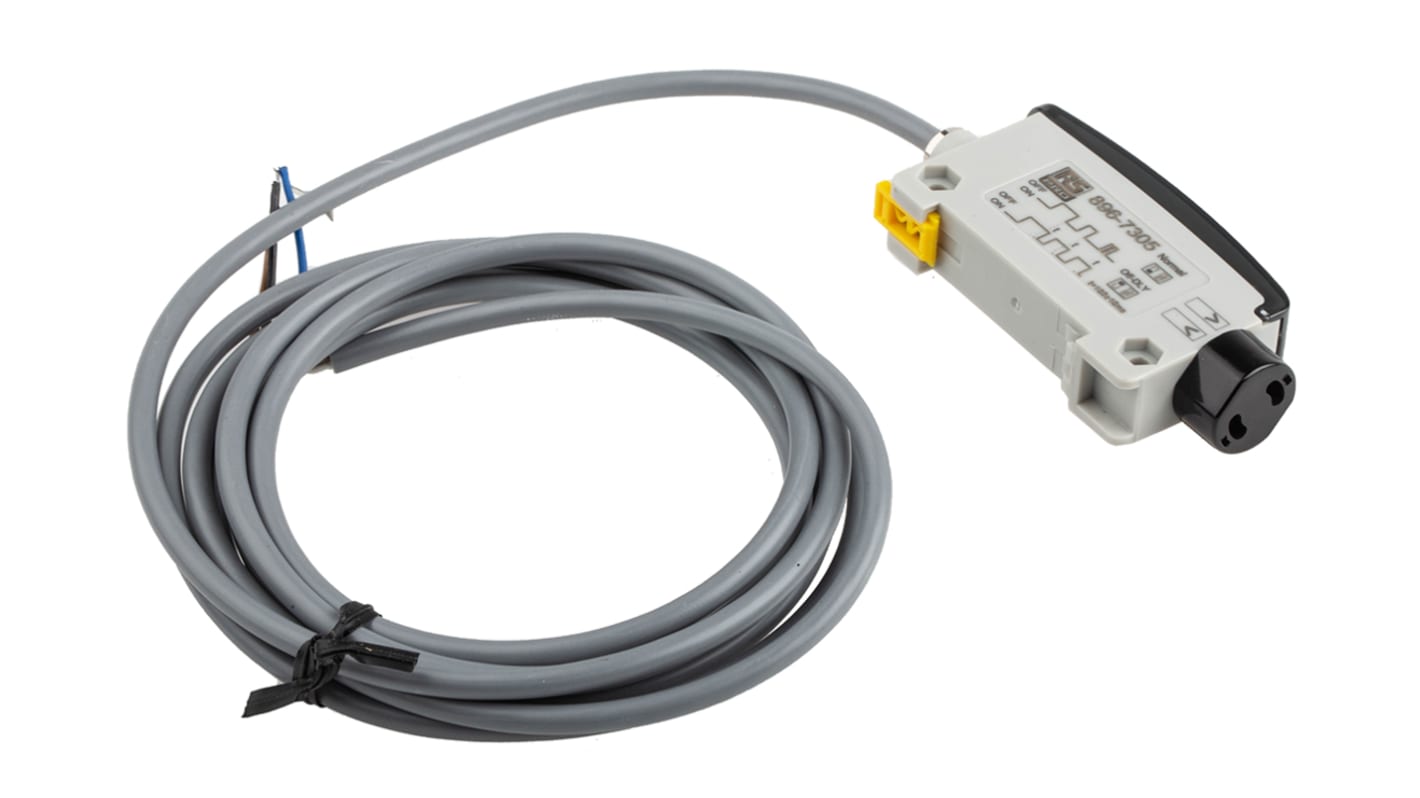

RS PRO Optical Fibre Sensor NPN-NO, PNP-NC Output, IP65, 12 → 24 V DC
Fibre optic sensors from the RS PRO range can be used in a number of different industrial sensing applications to measure acceleration, mechanical strain and more. This fibre optic sensor has a fibre cable connected to a light source. The 65 mm-long cable is small enough to allow you to access hard-to-reach spaces.
Sensing distance can be set on the product so it’s suitable to use in specific scenarios such as an automotive factory or working within a computer network. It features reverse polarity, shock, overload and short-circuit protection to ensure effective and consistently high performance.
The sensor performs best between a minimum operating temperature of -10°C and a maximum operating temperature of +55°C. The transparent plastic housing also has a rating of IP65, meaning performance will not be impacted by dust or water.
Sensing distance can be set on the product so it’s suitable to use in specific scenarios such as an automotive factory or working within a computer network. It features reverse polarity, shock, overload and short-circuit protection to ensure effective and consistently high performance.
The sensor performs best between a minimum operating temperature of -10°C and a maximum operating temperature of +55°C. The transparent plastic housing also has a rating of IP65, meaning performance will not be impacted by dust or water.
Features and Benefits
• Fibre-optic sensor
• PVC cable electrical connection
• Response Time <
• PVC cable electrical connection
• Response Time <
1 ms
• PVC cable electrical connection
• Length of 65 mm
• Minimum operating temperature of -10°C
• Maximum operating temperature of +55°C
• Housing material of ABS (acrylonitrile butadiene styrene), PC (polycarbonate)
• Red LED light source
• Cable mounting type
• CE (Conformité Européenne or European Conformity) standards met
• Depth of 35 mm
• Width of 14.5 mm
• IP65 rating
• Dimensions of 65 x 14.5 x 35 mm
• Output type of NPN-NO, PNP-NC
• Switching frequency of 50 Hz
• Supply votage of 12 to 24 V DC
• PVC cable electrical connection
• Length of 65 mm
• Minimum operating temperature of -10°C
• Maximum operating temperature of +55°C
• Housing material of ABS (acrylonitrile butadiene styrene), PC (polycarbonate)
• Red LED light source
• Cable mounting type
• CE (Conformité Européenne or European Conformity) standards met
• Depth of 35 mm
• Width of 14.5 mm
• IP65 rating
• Dimensions of 65 x 14.5 x 35 mm
• Output type of NPN-NO, PNP-NC
• Switching frequency of 50 Hz
• Supply votage of 12 to 24 V DC
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
사양
속성 | 값 |
|---|---|
| Output Type | NPN-NO, PNP-NC |
| Response Time | <1 ms |
| Light Source | Red LED |
| Electrical Connection | PVC Cable |
| Switching Frequency | 50 Hz |
| IP Rating | IP65 |
| Housing Material | ABS, PC |
| Supply Voltage | 12 → 24 V dc |
| Length | 65mm |
| Width | 14.5mm |
| Maximum Operating Temperature | +55°C |
| Mounting Type | Cable |
| Depth | 35mm |
| Standards Met | CE |
| Minimum Operating Temperature | -10°C |
| Dimensions | 65 x 14.5 x 35 mm |
