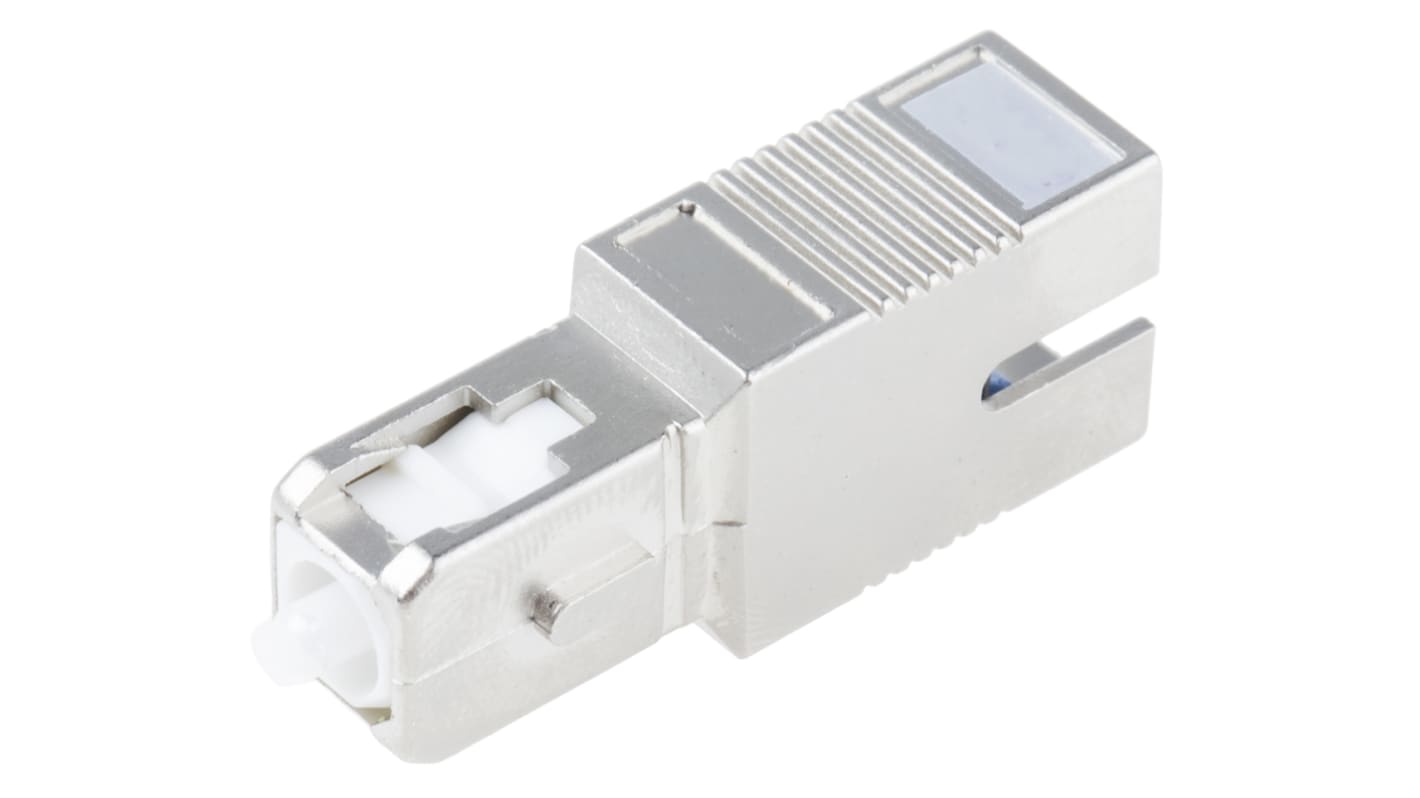

RS PRO SC Single Mode 10dB Attenuator
- RS 제품 번호:
- 536-7948
- 제조업체:
- RS PRO
- RS 제품 번호:
- 536-7948
- 제조업체:
- RS PRO
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항
Attenuators
Wavelength range 1310 and 1550 nm
Tolerance with 5 dB element ±0.5 dB
Tolerance with 6 → 30 dB elements ±10% attenuation
Return loss APC ≥ 60 dB
Service life 500 expecting mating cycles
Repeatability <0.2 dB
Tolerance with 5 dB element ±0.5 dB
Tolerance with 6 → 30 dB elements ±10% attenuation
Return loss APC ≥ 60 dB
Service life 500 expecting mating cycles
Repeatability <0.2 dB
사양
속성 | 값 |
|---|---|
| Attenuation | 10dB |
| Single/Multimode | Single Mode |
| Connector Type | SC |
| Length | 35mm |
| Width | 12.7mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
