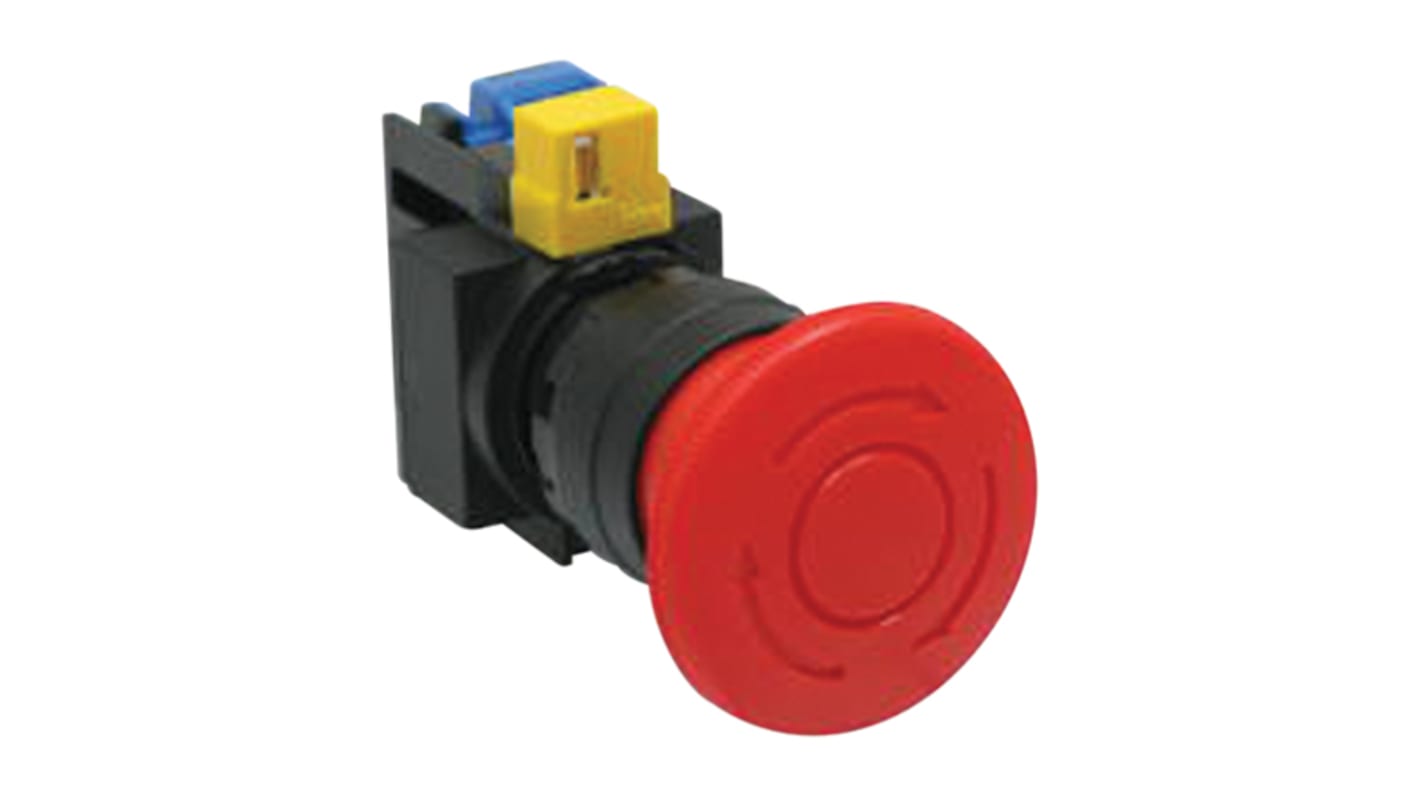

Idec HW Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1NO, IP65
- RS 제품 번호:
- 832-6149
- 제조사 부품 번호:
- HW1B-V4F10-R
- 제조업체:
- Idec
단종
- RS 제품 번호:
- 832-6149
- 제조사 부품 번호:
- HW1B-V4F10-R
- 제조업체:
- Idec
제정법과 컴플라이언스
제품 세부 사항
Idec HW Series
This Idec HW series offers you a range of reliable professional 22mm mounting hole pushbuttons and pushbutton accessories. These pushbuttons are available in various shapes and colours and offer a variety of operation types such as push lock turn reset, momentary and maintained.
The Pushbuttons caps and lens are available in different colours and easy to assemble. Locking Lever removable contact blocks.
The Pushbuttons caps and lens are available in different colours and easy to assemble. Locking Lever removable contact blocks.
IP65
UL listed, CSA certified, TUV approved, and CE marked
UL listed, CSA certified, TUV approved, and CE marked
Idec Push Buttons and Accessories
Idec offers a variety of products grouped by various sizes and features which are best suited for your unique project needs.
사양
속성 | 값 |
|---|---|
| Mounting Type | Panel Mount |
| Cutout Diameter | 22mm |
| Contact Configuration | 1NO |
| Push Button Actuation | Twist Release |
| Illuminated | No |
| Series | HW |
| IP Rating | IP65 |
| Colour | Red |
| Push Button Shape | Round |
| Voltage Rating | 440V |
| Depth | 32mm |
| Push Button Material | Plastic |
| Height | 29.4mm |
