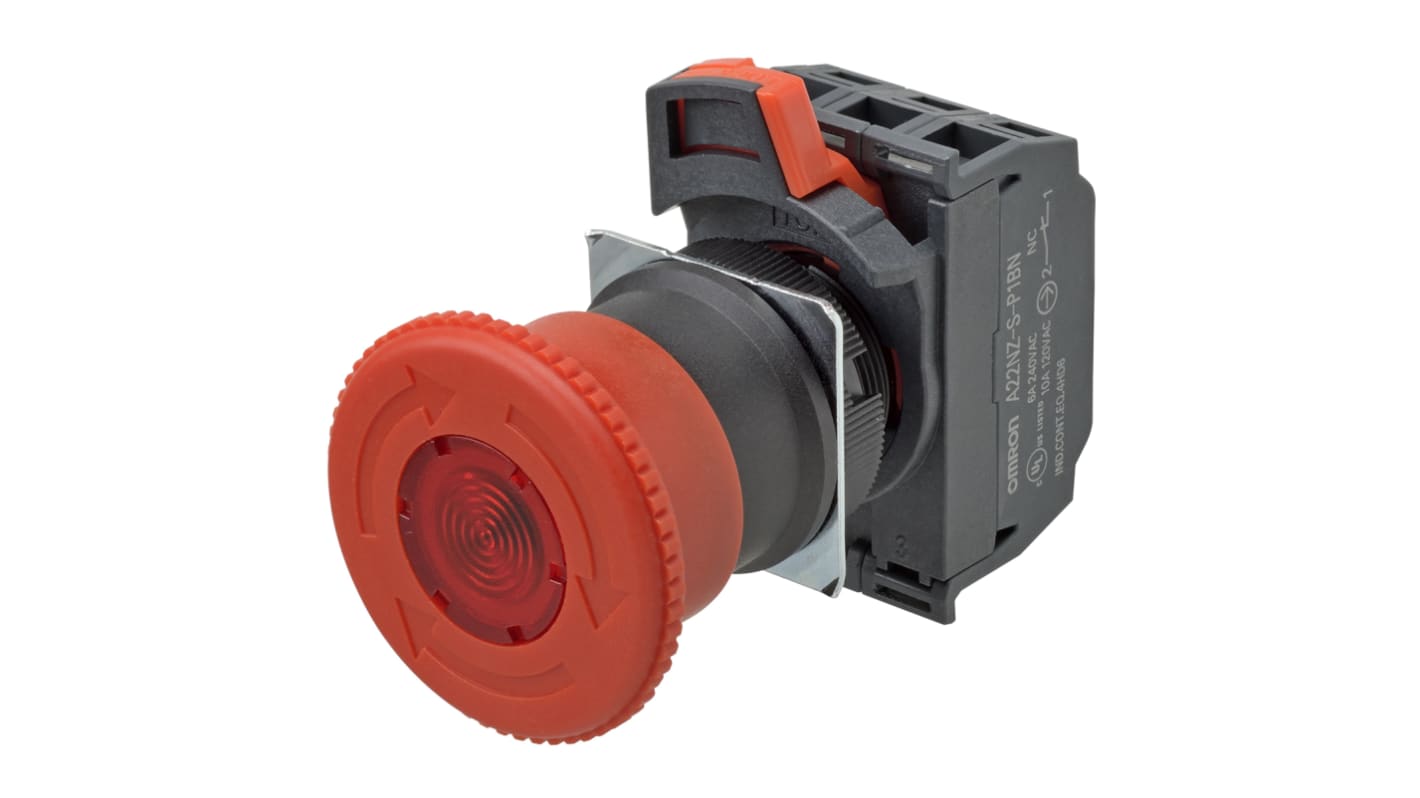

Omron A22NE-PD Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NC, IP65
- RS 제품 번호:
- 188-9167
- 제조사 부품 번호:
- A22NE-M-PD02-C
- 제조업체:
- Omron
- RS 제품 번호:
- 188-9167
- 제조사 부품 번호:
- A22NE-M-PD02-C
- 제조업체:
- Omron
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항
The A22E/A22NE-P/A22NE-PD line-up offers E-Stop switches with various head types. For flexible application, a wide range of accessories is provided. To set up easy installation and maintenance, various contact combinations are available.
Direct opening mechanism to open the circuit when the contact welds
With a latching mechanism to prevent operating errors
Lock lever for easily mounting and removing the unit
Use 25-dia. ring to install in 25-dia. panel cutouts.
In a model equipped with Lock-lever-linked contact function, the improper installation of the switch unit can be detected.
With a latching mechanism to prevent operating errors
Lock lever for easily mounting and removing the unit
Use 25-dia. ring to install in 25-dia. panel cutouts.
In a model equipped with Lock-lever-linked contact function, the improper installation of the switch unit can be detected.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Mounting Type | Panel Mount |
| Cutout Diameter | 22mm |
| Contact Configuration | 2NC |
| Push Button Actuation | Twist Release |
| Illuminated | Yes |
| Series | A22NE-PD |
| IP Rating | IP65 |
| Colour | Red |
| Push Button Shape | Round |
| Voltage Rating | 250V |
| Supply Current | 5A |
| Depth | 87mm |
| Auxiliary Contacts | NO |
| Safety Contacts | 2 |
