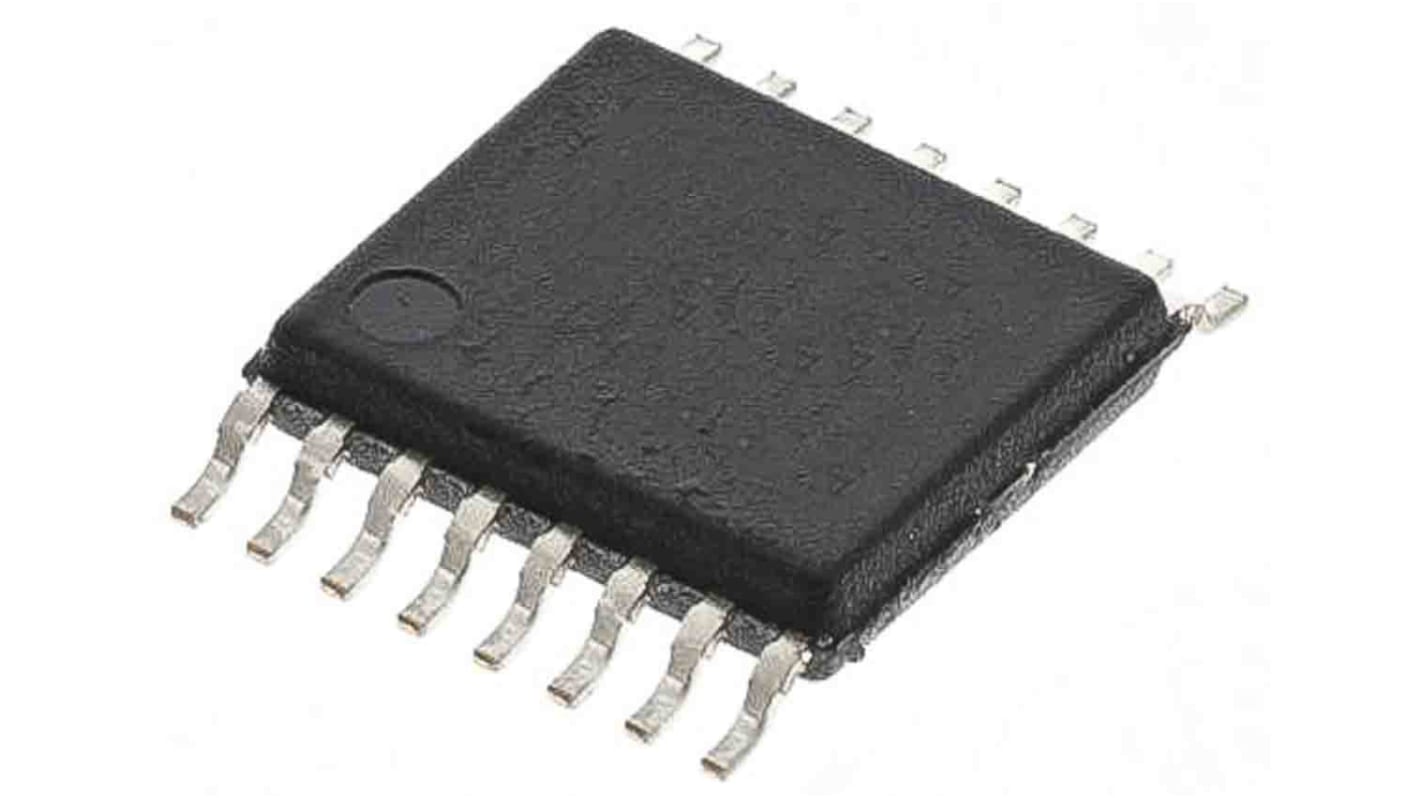

STMicroelectronics STP08DP05XTTR TSSOP Display Driver, 16 Pin, 3 → 5.5 V
- RS 제품 번호:
- 188-9225
- 제조사 부품 번호:
- STP08DP05XTTR
- 제조업체:
- STMicroelectronics
일시 품절-다음 입고 날짜는 31/03/2025 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(2500개가 1릴안에)
₩1,098.761
| 수량 | 한팩당 | Per Reel* |
| 2500 - 10000 | ₩1,098.761 | ₩2,746,040.80 |
| 12500 + | ₩1,076.338 | ₩2,690,844.00 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 188-9225
- 제조사 부품 번호:
- STP08DP05XTTR
- 제조업체:
- STMicroelectronics
제정법과 컴플라이언스
제품 세부 사항
Low voltage power supply down to 3 V
8 constant current output channels
Adjustable output current through external resistor
Short and open output error detection
Serial data IN/parallel data OUT
3.3 V micro driver-able
Output current: 5-100 mA
30 MHz clock frequency
Available in high thermal efficiency TSSOP exposed pad
ESD protection 2.5 kV HBM, 200 V MM
8 constant current output channels
Adjustable output current through external resistor
Short and open output error detection
Serial data IN/parallel data OUT
3.3 V micro driver-able
Output current: 5-100 mA
30 MHz clock frequency
Available in high thermal efficiency TSSOP exposed pad
ESD protection 2.5 kV HBM, 200 V MM
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Package Type | TSSOP |
| Display Type | LED |
| Number of Pins | 16 |
| Supply Voltage | 3 → 5.5 V |
| Maximum Supply Current | (Off, On) 13.5mA |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Mounting Type | Surface Mount |
| Width | 4.5mm |
| Height | 1.05mm |
| Length | 5.4mm |
