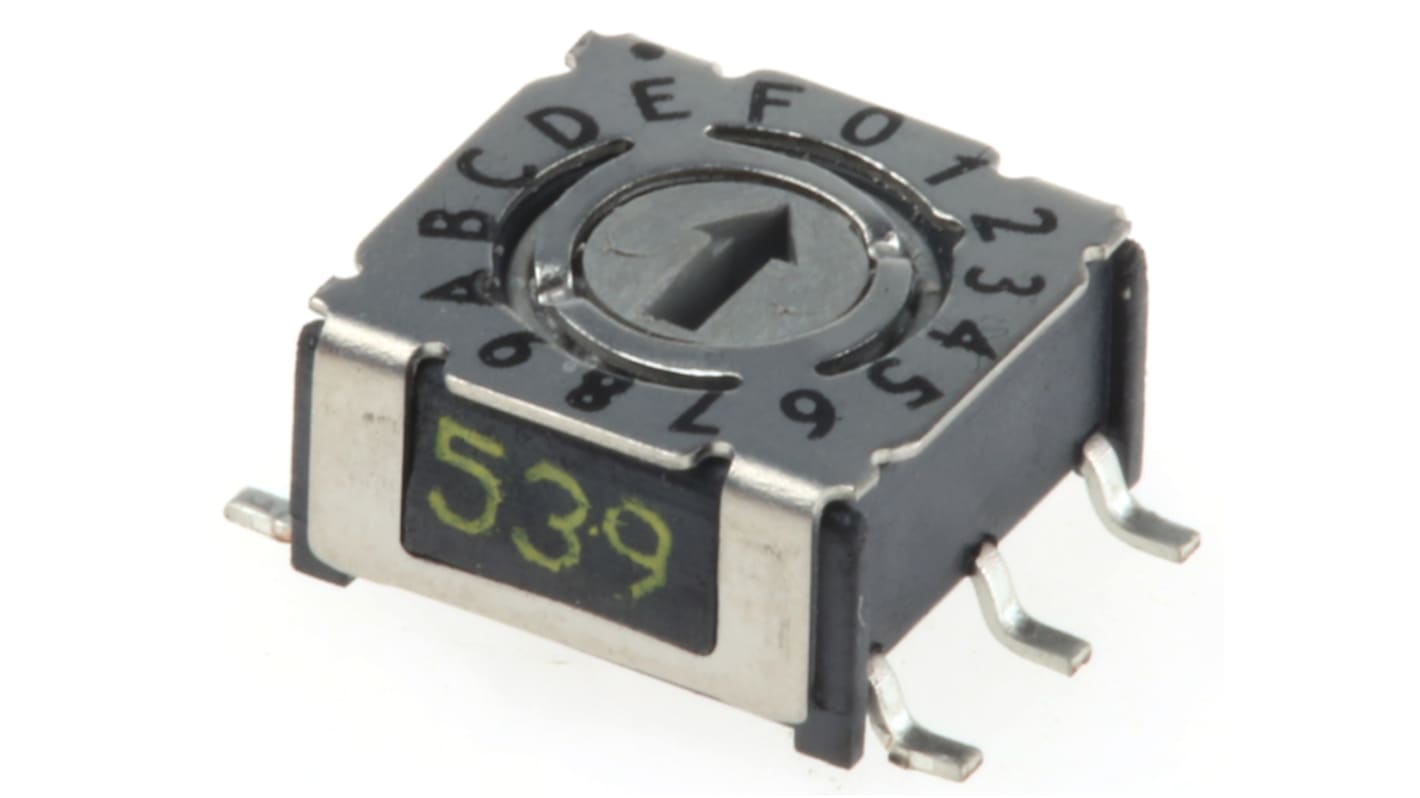

Hartmann 16 Way Surface Mount DIP Switch, Rotary Flush Actuator
- RS 제품 번호:
- 379-3985
- 제조사 부품 번호:
- P36S103
- 제조업체:
- Hartmann
341 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩8,053.558
| 수량 | 한팩당 |
| 1 - 49 | ₩8,053.558 |
| 50 - 99 | ₩7,810.347 |
| 100 - 249 | ₩7,572.311 |
| 250 - 499 | ₩7,410.17 |
| 500 + | ₩7,249.755 |
- RS 제품 번호:
- 379-3985
- 제조사 부품 번호:
- P36S103
- 제조업체:
- Hartmann
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
Rotary Encoded Low Profile In-Line Switches
P36THR1 versions have (L508) left angular 5.08mm terminals
Flux sealed & process washable
Contact rating: 150mA @ 24Vdc
Contact resistance: <80mΩ
Mechanical life: >104 operations
Operating temperature: -30 to +90°C
Positive detent
340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max
Gold plated contacts
Contact rating: 150mA @ 24Vdc
Contact resistance: <80mΩ
Mechanical life: >104 operations
Operating temperature: -30 to +90°C
Positive detent
340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max
Gold plated contacts
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
사양
속성 | 값 |
|---|---|
| Number of Positions | 16 |
| Mounting Type | Surface Mount |
| Contact Material | Gold over Nickel Plated Stainless Steel |
| Package Style | DIP |
| Actuator Type | Rotary Flush |
| Contact Current Rating | 100 mA@ 24 V dc |
| Mechanical Life | 10000Operations |
| Maximum Operating Temperature | +90°C |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +90°C |
| Voltage Rating | 24V dc |
