- RS 제품 번호:
- 123-9553
- 제조사 부품 번호:
- SSGM140100
- 제조업체:
- Alps Alpine
일시 품절-다음 입고 날짜는 08/04/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
단가 개당가격(5개가 1팩안에)
₩2,863.334
수량 | 한팩당 | 한팩당* |
5 - 20 | ₩2,863.334 | ₩14,316.67 |
25 - 45 | ₩2,777.089 | ₩13,885.445 |
50 - 95 | ₩2,690.844 | ₩13,454.22 |
100 - 245 | ₩2,633.922 | ₩13,169.612 |
250 + | ₩2,577.001 | ₩12,881.553 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 123-9553
- 제조사 부품 번호:
- SSGM140100
- 제조업체:
- Alps Alpine
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항

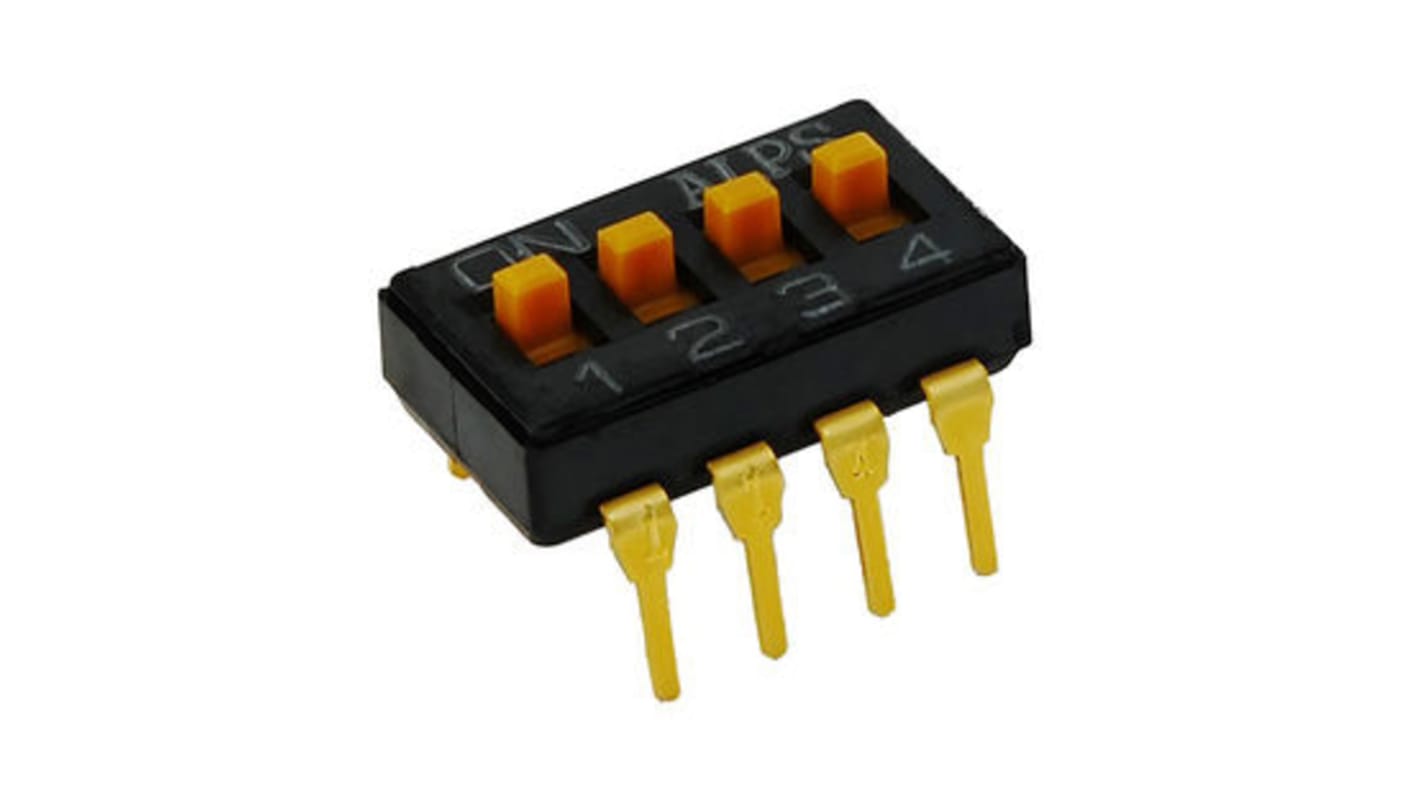

Alps SSGM Series DIP Switches
SSGM Series DIP Switches are a highly reliable IC-size type switch with gold contact supports automatic insertion.
Alps DIP Switches
사양
속성 | 값 |
---|---|
Number of Positions | 4 |
Mounting Type | Through Hole |
Contact Configuration | 4P4T-NC |
Contact Material | Gold |
Package Style | DIP |
Actuator Type | Top Slide |
Contact Current Rating | 100 (When Energized) mA, 25 (Opening and Closing) mA |
Mechanical Life | 3000Cycles |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +85°C |
Voltage Rating | 24 V dc, 50V dc |
