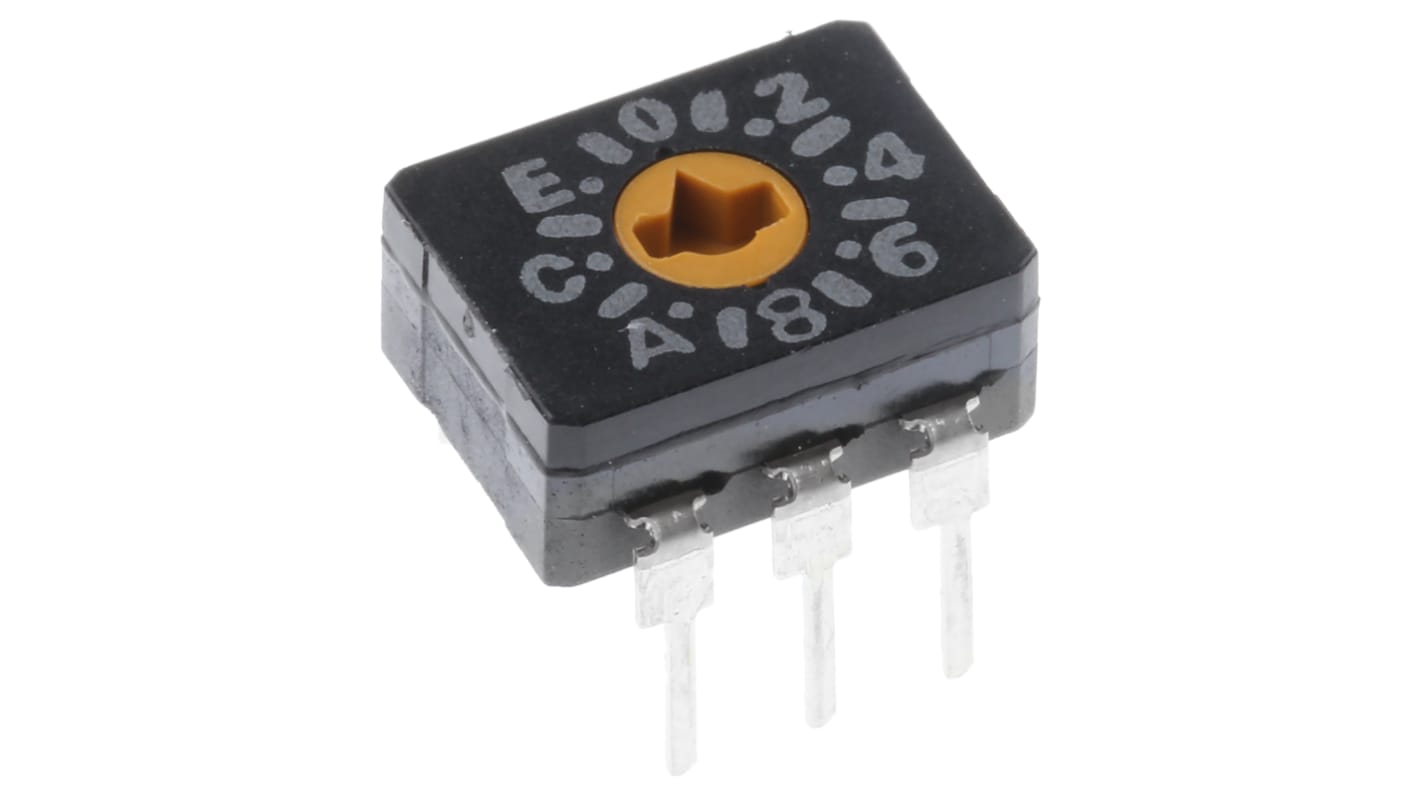

Omron 16 Way Through Hole DIP Switch, Rotary Flush Actuator
- RS 제품 번호:
- 199-201
- 제조사 부품 번호:
- A6C-16R(N)
- 제조업체:
- Omron
105 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩8,938.432
| 수량 | 한팩당 |
| 1 - 49 | ₩8,938.432 |
| 50 - 99 | ₩8,577.928 |
| 100 - 249 | ₩8,220.873 |
| 250 + | ₩8,043.209 |
- RS 제품 번호:
- 199-201
- 제조사 부품 번호:
- A6C-16R(N)
- 제조업체:
- Omron
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항
DIL Sealed Rotary Switches - Low Profile
Internally sealed against the ingress of cleaning fluids and other contaminants
Low profile - 4.5mm for top-actuated version
Contact rating: 1 to 100mA, 5 to 30Vdc
Contact resistance: 200mΩ
Mechanical life: >104 operations
Operating temperature: -20 to +80°C
Soldering temperature: 350°C max. for 3s max. (Hand Soldering) or 260°C max. for 5s max. (automatic soldering)
Gold plated contacts
Low profile - 4.5mm for top-actuated version
Contact rating: 1 to 100mA, 5 to 30Vdc
Contact resistance: 200mΩ
Mechanical life: >104 operations
Operating temperature: -20 to +80°C
Soldering temperature: 350°C max. for 3s max. (Hand Soldering) or 260°C max. for 5s max. (automatic soldering)
Gold plated contacts
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
사양
속성 | 값 |
|---|---|
| Number of Positions | 16 |
| Mounting Type | Through Hole |
| Contact Material | Copper Alloy |
| Package Style | DIP |
| Actuator Type | Rotary Flush |
| Contact Current Rating | 100 mA@ 30 V dc |
| Mechanical Life | 10000Operations |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +70°C |
| Voltage Rating | 30V dc |
| Dielectric Strength | 250V ac |
