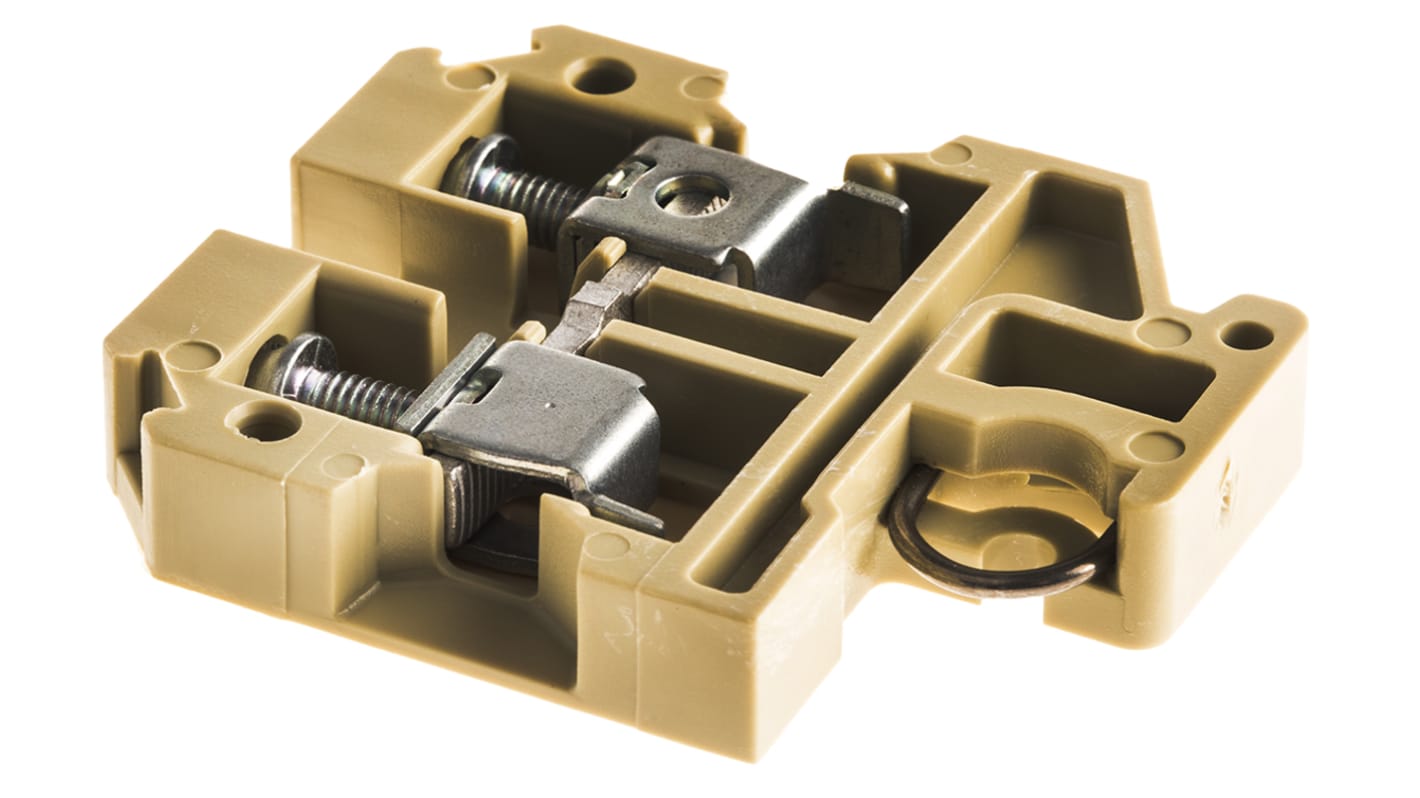

Weidmuller, SAK Series , 800 V Modular Terminal Block, Screw Down Termination

  • RS 제품 번호 425-617
  • 제조사 부품 번호 SAK 6N -193260000
  • 제조업체 Weidmuller
참조 문서
제정법과 컴플라이언스
ROHS 준수
제품 세부 사항

Standard Terminals, End Covers, and Jumper Bars

Standard or feed through rated at 750V . Terminals of the same type may be cross connected using the pre-assembled jumper bars for up to 10 poles (2.5mm-16mm terminals) and 2 poles (35mm terminals).,TSCH partitions fit jumper bar cut outs.

Note

TSCH small partitions fit SAK 2.5, 5, 6N, 10 and 16 standard terminals.,Stock No.s 425-639 and 425-645 do not have DEMKO Approval

Approvals

CSA certified, UL listed, NEMKO, SEV, KEMA, DEMKO

Approvals

1, 2, 4 -7

SAK Series

Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting

사양
속성
Series SAK
Wire Size 22 → 8 AWG
Cable CSA 6mm²
Colour Brown
Current Rating 57A
Number of Levels Single
Termination Method Screw Down
Voltage Rating 800 V
Minimum Operating Temperature -50°C
Maximum Operating Temperature +100°C
290 <재고있음> 5-9영업일내 홍콩 발송
단가 Each (In a Pack of 10)
2,134.35
(exc. VAT)
수량
한(1)개당
한(1)팩당*
10 - 140
₩2,134.35
₩21,349.70
150 - 490
₩2,087.85
₩20,873.85
500 +
₩2,055.30
₩20,560.75
*다른 단위에 대한 가격 표시
