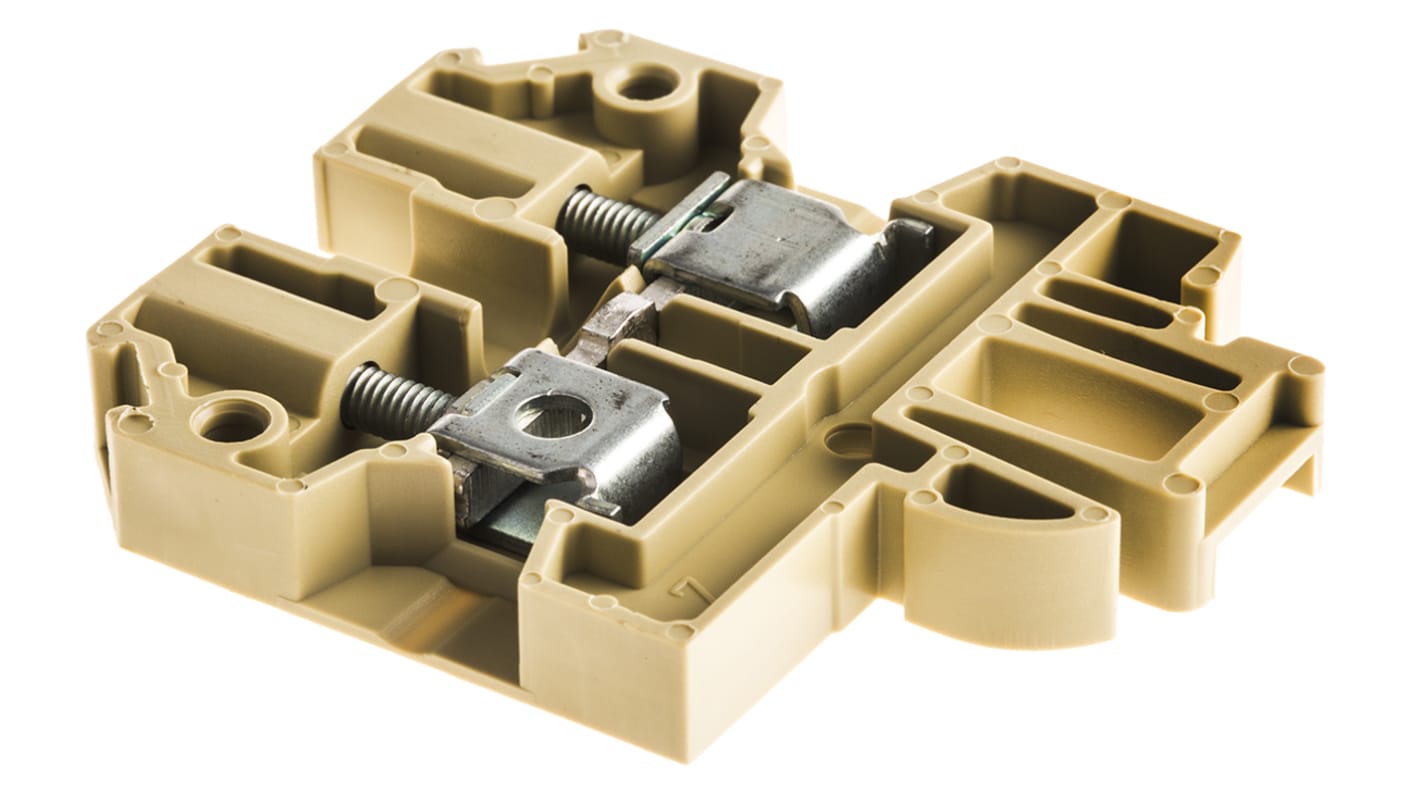

Weidmüller SAK Series Modular Terminal Block, 4mm², Single-Level
- RS 제품 번호:
- 425-601
- 제조사 부품 번호:
- 0128360000
- 제조업체:
- Weidmüller
1620 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(10개가 1팩안에)
₩4,117.336
| 수량 | 한팩당 | 한팩당* |
| 10 + | ₩4,117.336 | ₩41,173.363 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 425-601
- 제조사 부품 번호:
- 0128360000
- 제조업체:
- Weidmüller
제정법과 컴플라이언스
- COO (Country of Origin):
- RO
제품 세부 사항
Standard Terminals, End Covers, and Jumper Bars
Standard or feed through rated at 750V . Terminals of the same type may be cross connected using the pre-assembled jumper bars for up to 10 poles (2.5mm-16mm terminals) and 2 poles (35mm terminals).,TSCH partitions fit jumper bar cut outs.
Note
TSCH small partitions fit SAK 2.5, 5, 6N, 10 and 16 standard terminals.,Stock No.s 425-639 and 425-645 do not have DEMKO Approval
Approvals
CSA certified, UL listed, NEMKO, SEV, KEMA, DEMKO
Approvals
1, 2, 4 -7
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
사양
속성 | 값 |
|---|---|
| Number of Levels | Single |
| American Wire Gauge | 26 → 10AWG |
| Series | SAK |
| Cable CSA | 4mm² |
| Current Rating | 32A |
| Voltage Rating | 800 V |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +100°C |
