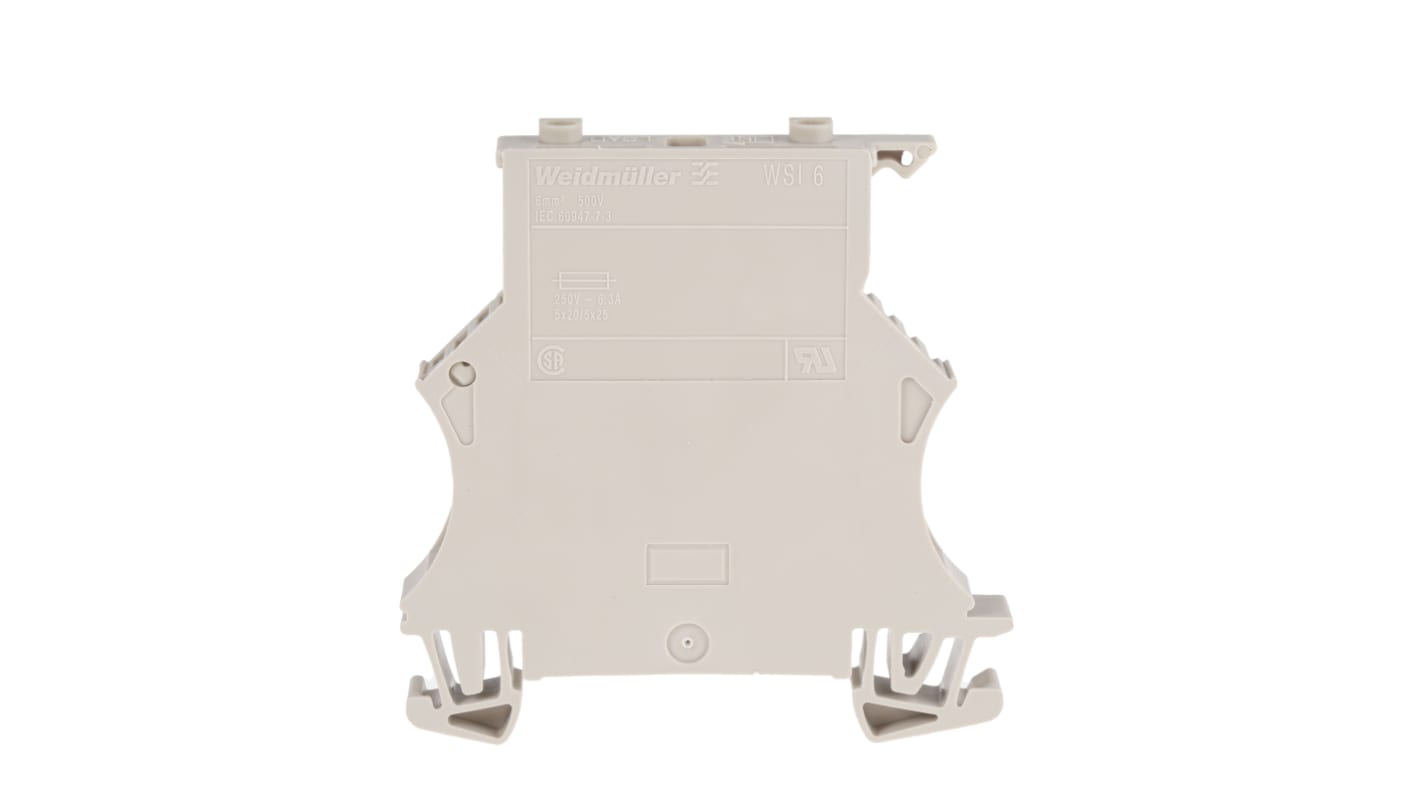

Weidmüller WSI Series Dark Beige Fused DIN Rail Terminal, 6mm², Single-Level, Screw Termination, Fused
- RS 제품 번호:
- 425-263
- 제조사 부품 번호:
- 1011000000
- 제조업체:
- Weidmüller
2650 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(5개가 1팩안에)
₩11,684.473
수량 | 한팩당 | 한팩당* |
5 + | ₩11,684.473 | ₩58,422.363 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 425-263
- 제조사 부품 번호:
- 1011000000
- 제조업체:
- Weidmüller
제정법과 컴플라이언스
- COO (Country of Origin):
- CZ
제품 세부 사항
Fused Terminals
The Weidmuller W series fused terminals with standard screw clamp technology gives you short circuit and overload protection.
Note
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Fuse Isolators WSI 6/2 Series
These WSI 6/2 series fuse isolators are designed for screwable cross connection fused terminal blocks. With easy snap-on mounting and a current rating of 6.3 Amps.
Features & Benefits
Screw clamp connection
Easy snap-on mounting
Current Rating 6.3 Amps
Easy snap-on mounting
Current Rating 6.3 Amps
Product Application Information
• Power distribution
• Industrial automation
• Motor control
• HVAC systems
• Industrial automation
• Motor control
• HVAC systems
A tidy and easy to use fuse isolator. Snap-on to your terminal block and screw into place. Ideally suited to industrial and electrical applications giving you protection and damage limitation without needless interruption to your machines or appliances.
What wire sizes does this terminal block accept?
This terminal block accepts wire sizes between 20 and 8AWG, making it a versatile choice.
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
사양
속성 | 값 |
---|---|
Colour | Dark Beige |
Number of Levels | Single |
American Wire Gauge | 20 → 8AWG |
Series | WSI |
Termination Method | Screw |
Cable CSA | 6mm² |
Fused | Yes |
Voltage Rating | 500 V |
Current Rating | 6.3A |
Pitch | 10mm |
Minimum Operating Temperature | -50°C |
Maximum Operating Temperature | +120°C |
