RS PRO 2.54mm Pitch 20 Way,Through Hole Mount IC Dip Header, Tin over Nickel, 1A
- RS 제품 번호:
- 402-670
- 제조업체:
- RS PRO
70 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(5개가 1팩안에)
₩3,798.23
| 수량 | 한팩당 | 한팩당* |
| 5 - 370 | ₩3,798.23 | ₩18,994.599 |
| 375 - 1995 | ₩3,646.439 | ₩18,235.643 |
| 2000 + | ₩3,001.326 | ₩15,008.355 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 402-670
- 제조업체:
- RS PRO
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항

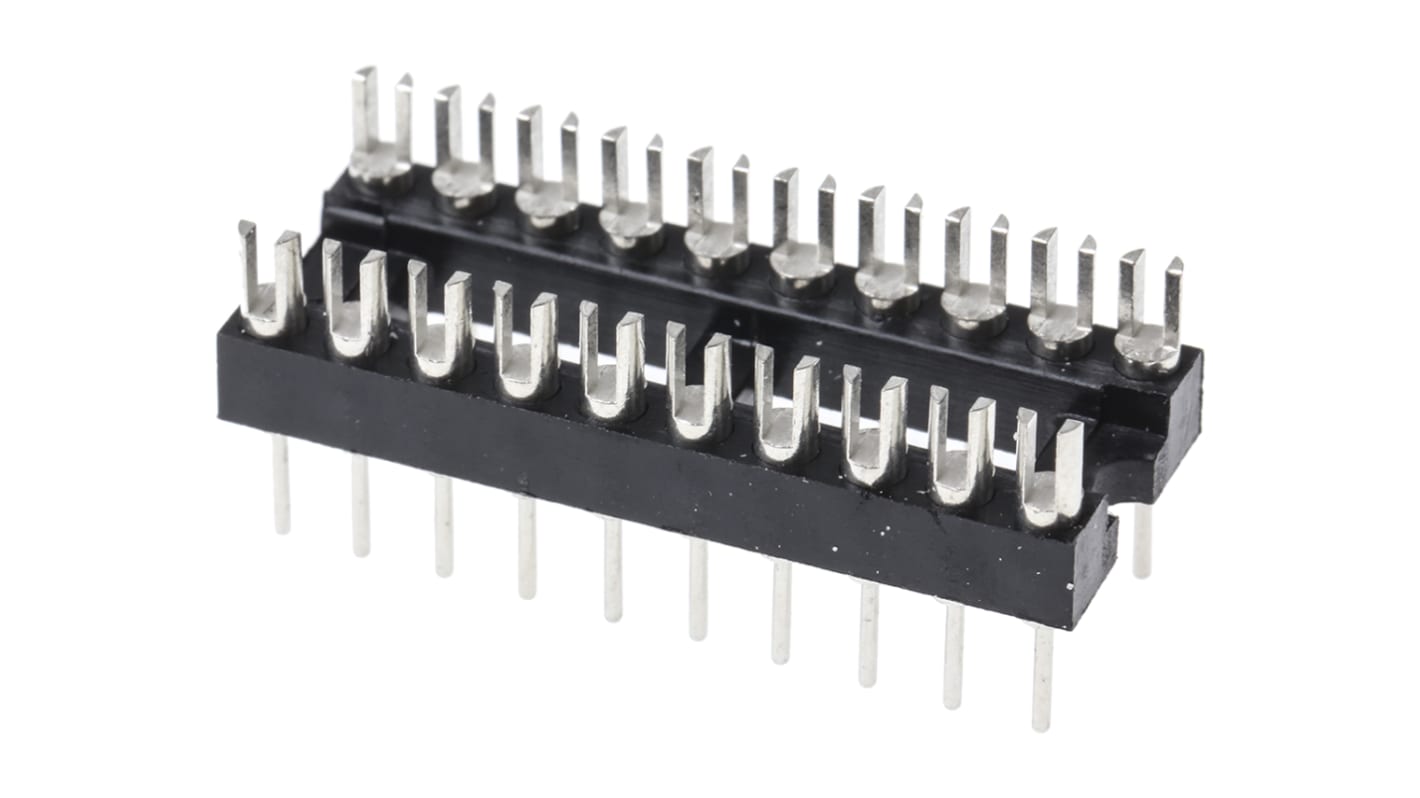

RS Pro Slotted Header
A series of slotted Dual inline (DIL) headers from RS Pro, designed to facilitate building of subassemblies or modules for use as a carrier system. These headers can also be used with appropriate DIL sockets to form a plug and socket pair for multi-way connections or directly soldered into PCBs. All models are highly reliable and excellent quality.
Features & Benefits
Pin spacing: 2.54 mm
Operating temperature -55°C → +150°C
Flammability UL 94 V-0
사양
속성 | 값 |
|---|---|
| Number of Contacts | 20 |
| Contact Material | Brass |
| Contact Plating | Tin over Nickel |
| Pitch | 2.54mm |
| Termination Method | Solder |
| Mounting Type | Through Hole |
| Housing Material | PBT |
| Current Rating | 1A |
| Dimensions | 25.32 x 10.14mm |
| Pin Type | Slotted Pin |
| Depth | 10.14mm |
| Length | 25.32mm |
| Maximum Operating Temperature | +150°C |
| Minimum Operating Temperature | -65°C |
