- RS 제품 번호:
- 169-0076
- 제조사 부품 번호:
- SI8631AB-B-IS1
- 제조업체:
- Skyworks Solutions Inc
528 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(48개가 1튜브안에)
₩3,003.051
수량 | 한팩당 | Per Tube* |
48 - 48 | ₩3,003.051 | ₩144,179.216 |
96 - 144 | ₩2,939.23 | ₩141,041.623 |
192 + | ₩2,873.683 | ₩137,912.655 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 169-0076
- 제조사 부품 번호:
- SI8631AB-B-IS1
- 제조업체:
- Skyworks Solutions Inc
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- TW
제품 세부 사항

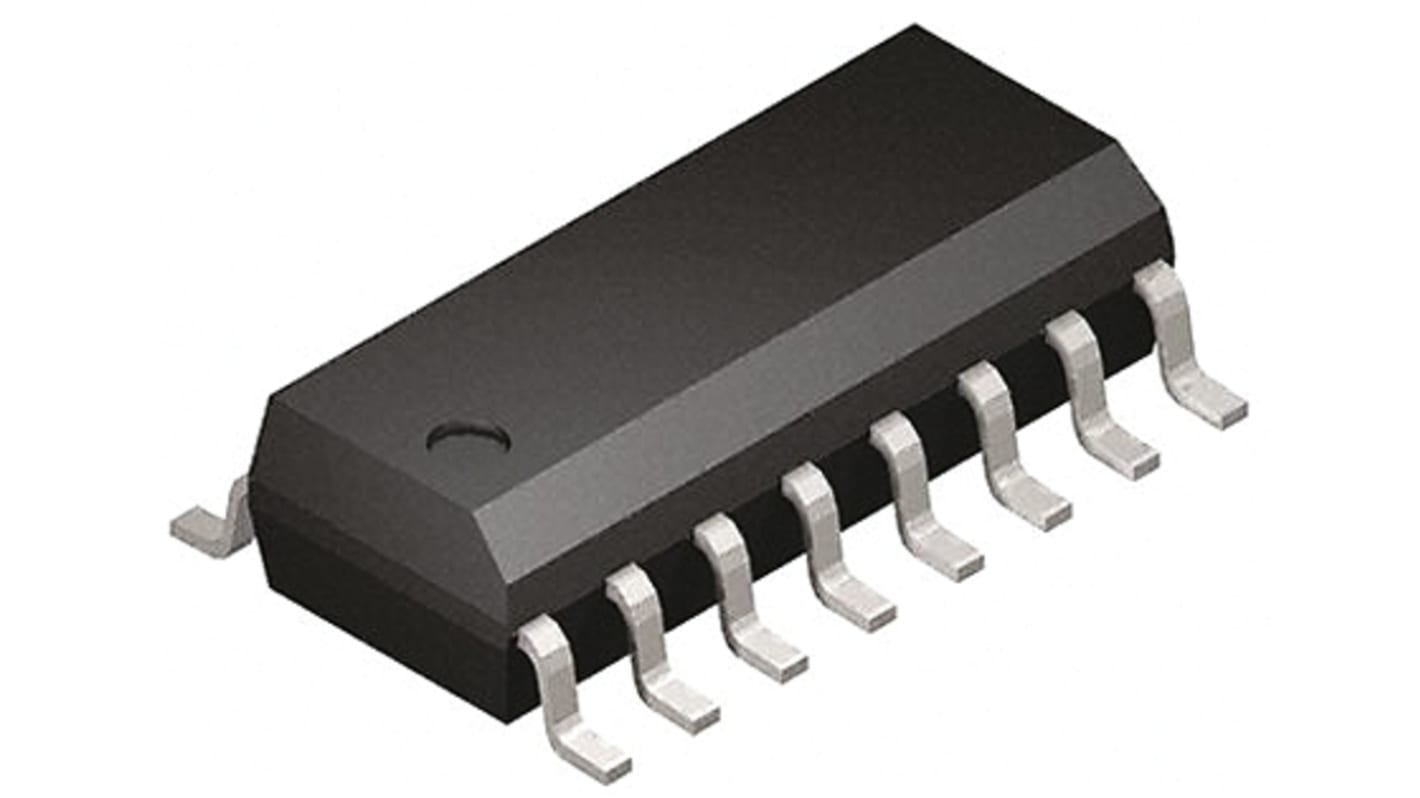

Si863x Series 3-channel Digital Isolators
The Si863x Series of three-channel digital isolators, based on the proprietary capacitive isolation technology, enable low propagation delay and skew, low emissions, high noise immunity and high reliability for a long lifecycle.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Digital Isolators, Silicon Laboratories
The Silicon Labs broad range of Digital Isolation products offers significant improvements over older isolation technologies such as opto-couplers. They demonstrate lower power consumption, greater reliability and higher performance, and are generally smaller in size and lower in cost. These CMOS-based devices exhibit stable operating characteristics over a wide temperature range and do not suffer from the lifespan limitations of opto-coupled devices.
사양
속성 | 값 |
---|---|
Maximum Data Rate | 1Mbps |
Number of Channels | 3 |
Package Type | SOIC |
Maximum Input Current | 5.9 mA dc |
Isolation Voltage | 2.5 kVrms |
Rise Time | 4ns |
Number of Pins | 16 |
Mounting Type | Surface Mount |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +125°C |
Length | 9.9mm |
Depth | 1.25mm |
Width | 3.9mm |
