- RS 제품 번호:
- 186-8830
- 제조사 부품 번호:
- MC100EP195FAG
- 제조업체:
- onsemi
- RS 제품 번호:
- 186-8830
- 제조사 부품 번호:
- MC100EP195FAG
- 제조업체:
- onsemi
제정법과 컴플라이언스
제품 세부 사항
Maximum Frequency > 1.2 Ghz Typical
Programmable Range: 2.2 ns to 12.2 ns
10 ps Increments
PECL Mode Operating Range: VCC = 3.0 V with VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with VEE = -3.0 V
Open Input Default State
Safety Clamp on Inputs
A Logic High on the ENbar Pin Will Force Q to Logic Low
D[0:10] Can Accept Either ECL, CMOS, or TTL Inputs.
VBB Output Reference Voltage
Applications
Automated Test Equipement (ATE)
General Purpose Data and Clock Interface
Programmable Range: 2.2 ns to 12.2 ns
10 ps Increments
PECL Mode Operating Range: VCC = 3.0 V with VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with VEE = -3.0 V
Open Input Default State
Safety Clamp on Inputs
A Logic High on the ENbar Pin Will Force Q to Logic Low
D[0:10] Can Accept Either ECL, CMOS, or TTL Inputs.
VBB Output Reference Voltage
Applications
Automated Test Equipement (ATE)
General Purpose Data and Clock Interface
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Logic Function | Delay Line |
Mounting Type | Surface Mount |

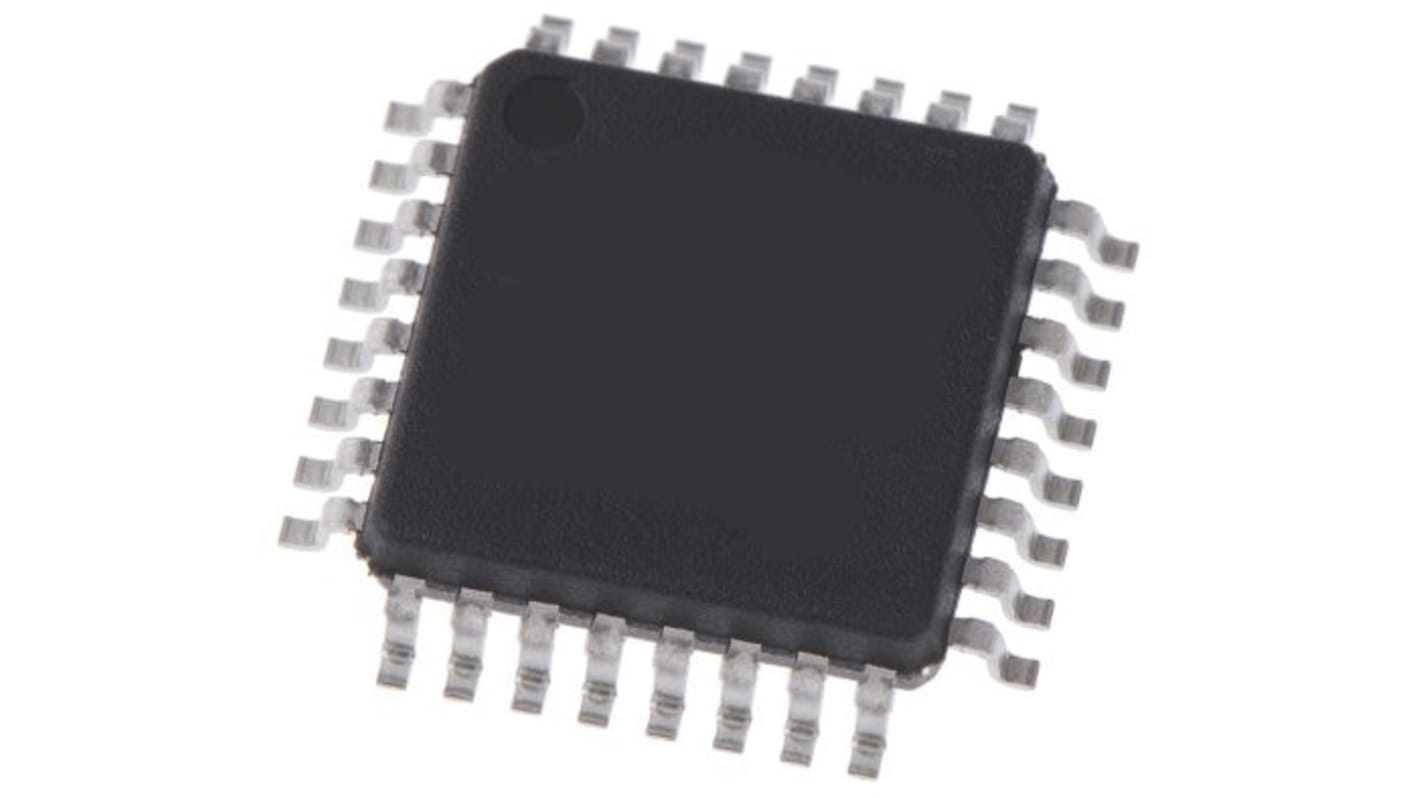

Package Type | LQFP |
Pin Count | 32 |
Dimensions | 7 x 7 x 1.45mm |
Total Number of Taps | 1024 |
Absolute Increment | 10ps |
Delay to First Tap | 2.2ns |
Maximum Operating Supply Voltage | 3.6 V |
Maximum Delay Time | 12.2ns |
Number of Independent Delay Inputs | 10 |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Minimum Operating Supply Voltage | 3 V |
