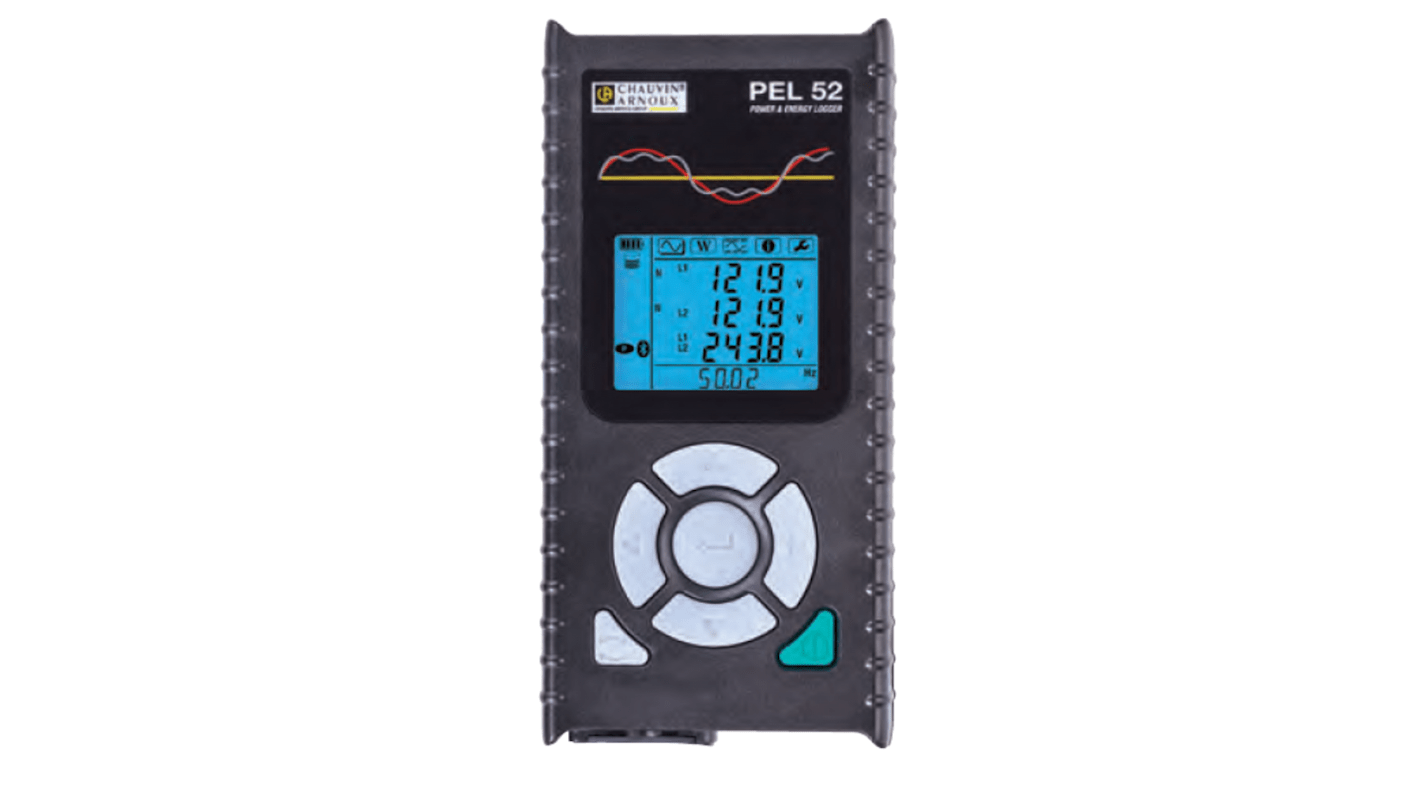

Chauvin Arnoux PEL52 Current Energy Monitor & Logger, Wi-Fi
- RS 제품 번호:
- 255-0906
- 제조사 부품 번호:
- P01157167
- 제조업체:
- Chauvin Arnoux
- RS 제품 번호:
- 255-0906
- 제조사 부품 번호:
- P01157167
- 제조업체:
- Chauvin Arnoux
제정법과 컴플라이언스
- COO (Country of Origin):
- FR
제품 세부 사항
The Chauvin Arnoux power & energy logger are two-phase power & energy logger, it is use to record voltage, current, power and energy on alternating current distribution grids (50 Hz or 60 Hz), logger has 2V / 2I channel. It is designed to operate in 690 V. The logger has backlit LCD (blue) with double display. It can measure up to 690 V. data can store on device.
Network frequencies DC, 50 Hz, 60 Hz
Voltage 10 Vac to 690 Vac
Mounting magnet
Phase cos ϕ, tan Φ, PF
Voltage 10 Vac to 690 Vac
Mounting magnet
Phase cos ϕ, tan Φ, PF
사양
속성 | 값 |
|---|---|
| Number of Input Channels | 2V / 2I |
| Model Number | PEL52 |
| Sensor Type | Current Sensor |
| Measurement Parameters | Current, Energy, Frequency, Harmonics, Power, Voltage |
| Interface Type | Wi-Fi |
| Data Logger Type | Current |
| Maximum Voltage Measurement | 600V |
| Power Source | Via the Measurement Phase |
| IP Rating | IP54 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 50°C |
| Maximum Current Measurement | 3000A |
| Display Type | Multi-display Backlit LCD |
| Number of Readings Per Channel | 1 measurement / s |
| Best Voltage Measurement Accuracy | ± 0.2% R ± 0.2 V |
| Battery Type | NiMH |
| Dimensions | 180 x 88 x 37mm |
| Model Number p | PEL52 |
| Best Current Measurement Accuracy | ± 0.3% R |
| Battery Life | 1 h |
| Current Measurement Resolution | 1 mA |
