- RS 제품 번호:
- 121-8175
- 제조사 부품 번호:
- CSNA111
- 제조업체:
- Honeywell
단종
- RS 제품 번호:
- 121-8175
- 제조사 부품 번호:
- CSNA111
- 제조업체:
- Honeywell
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항

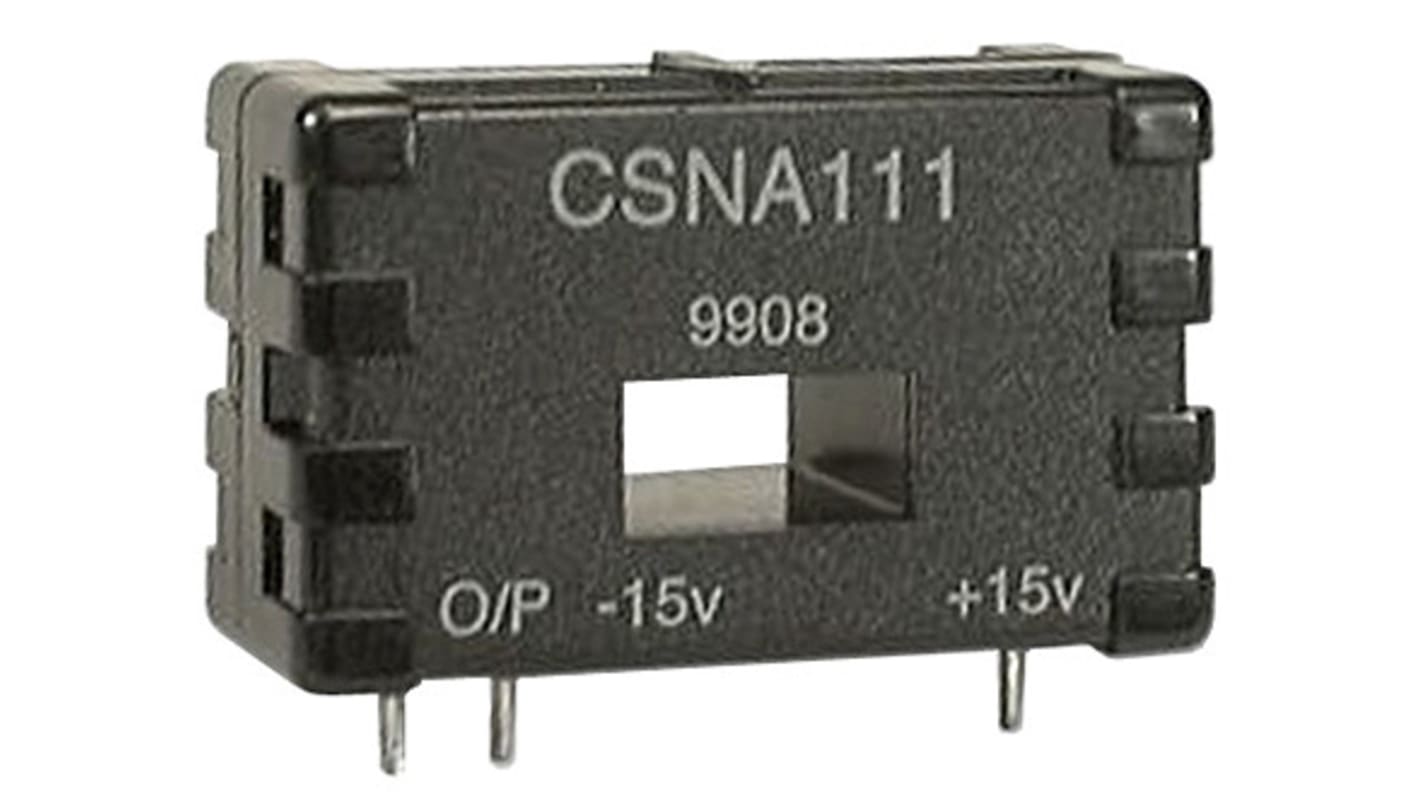

Honeywell CSN Series Hall Effect Current Sensor
The Honeywell CNS series of closed loop Hall-effect current sensors utilise the null balance or zero magnetic flux feedback method to provide accurate and repeatable measurements. The devices produce an output current which can be converted to a voltage by using a suitable load resistor.
Measures AC, DC and impulse currents
Lowest cost/performance ratio
Rapid response, no overshoot
High overload capacity
High level of electrical isolation between primary and secondary circuits
Operating temperature range 0 to 70 °C
Small size and weight
Lowest cost/performance ratio
Rapid response, no overshoot
High overload capacity
High level of electrical isolation between primary and secondary circuits
Operating temperature range 0 to 70 °C
Small size and weight
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Current Ratio | 60 mA |
Sensor Technology | Closed Loop |
Supply Voltage | ±15 V |
Input Current | 60mA |
Output Current | -70 → +70 A |
Overall Height | 25.7mm |
Overall Width | 40.5mm |
Overall Depth | 18mm |
Minimum Temperature | 0°C |
Maximum Temperature | +70°C |
Series | CSN |
Mounting Type | PCB Mount |
