- RS 제품 번호:
- 486-319
- 제조사 부품 번호:
- PX0650
- 제조업체:
- Bulgin
4 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩7,275.628
수량 | 한팩당 |
1 - 24 | ₩7,275.628 |
25 - 99 | ₩6,842.678 |
100 + | ₩6,582.218 |
- RS 제품 번호:
- 486-319
- 제조사 부품 번호:
- PX0650
- 제조업체:
- Bulgin
제정법과 컴플라이언스
- COO (Country of Origin):
- TN
제품 세부 사항

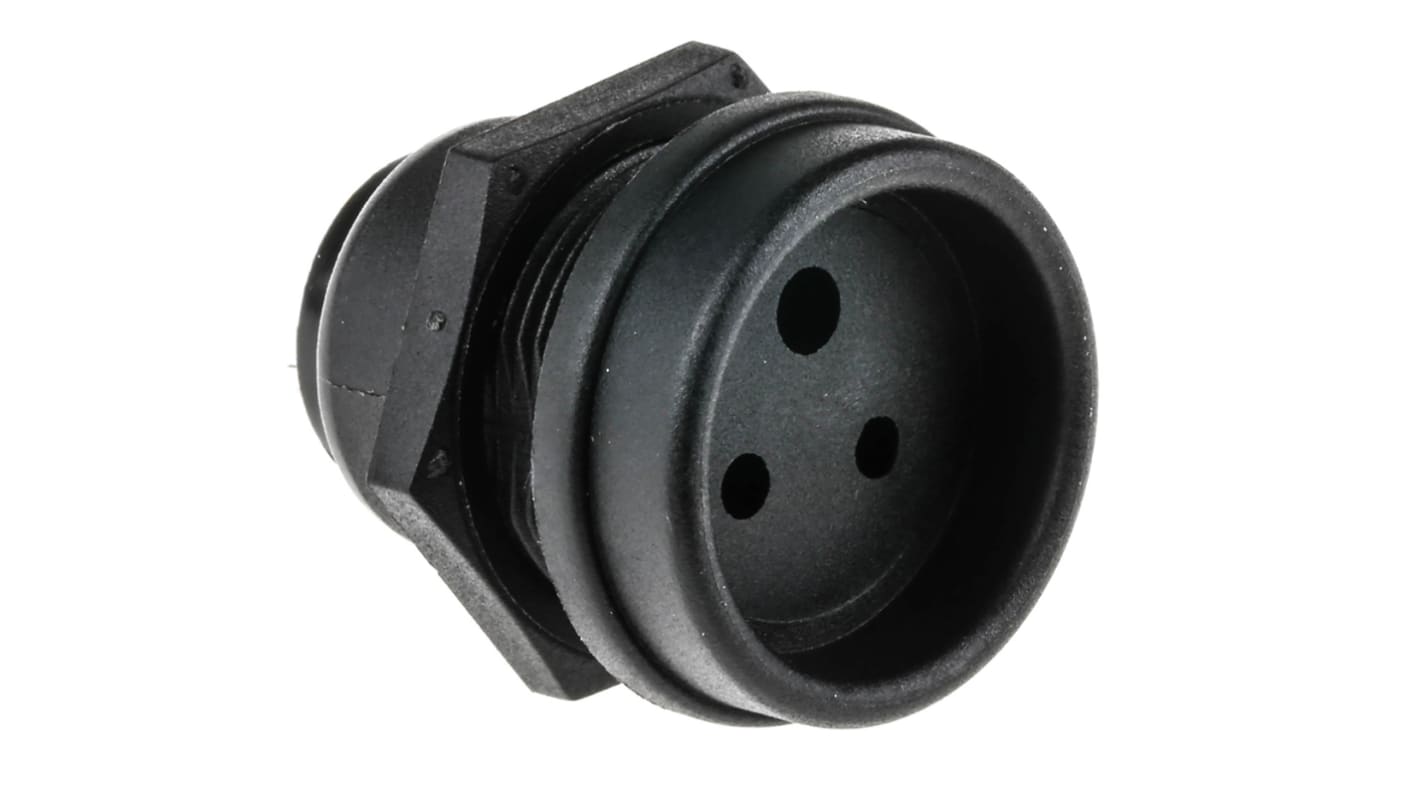

3-Way Miniature Reverse Configuration, Polarised Plugs & Sockets
Miniature 3-pole mains rated connectors designed for use in industrial equipment. Moulded in nylon and phenolic, the connectors' small size makes them ideally suited to applications with a constraint on space. The cable mounting plug comes with tinned brass pin contacts and incorporates a strain relief and cable clamp. The panel mounting socket also has brass contacts which are silver plated.,For suitable hole cutters see stock no 543-579.
Warning
The following RS power connectors are suitable for direct connection to 240V a.c. mains unless otherwise stated. Care must be taken when choosing a product for mains connection.
사양
속성 | 값 |
---|---|
Plug/Socket | Socket |
Voltage Rating | 250 V ac |
Gender | Female |
Mounting Type | Panel Mount |
Current Rating | 3A |
Termination Method | Solder |
Contact Material | Brass |
Contact Plating | Tin |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
