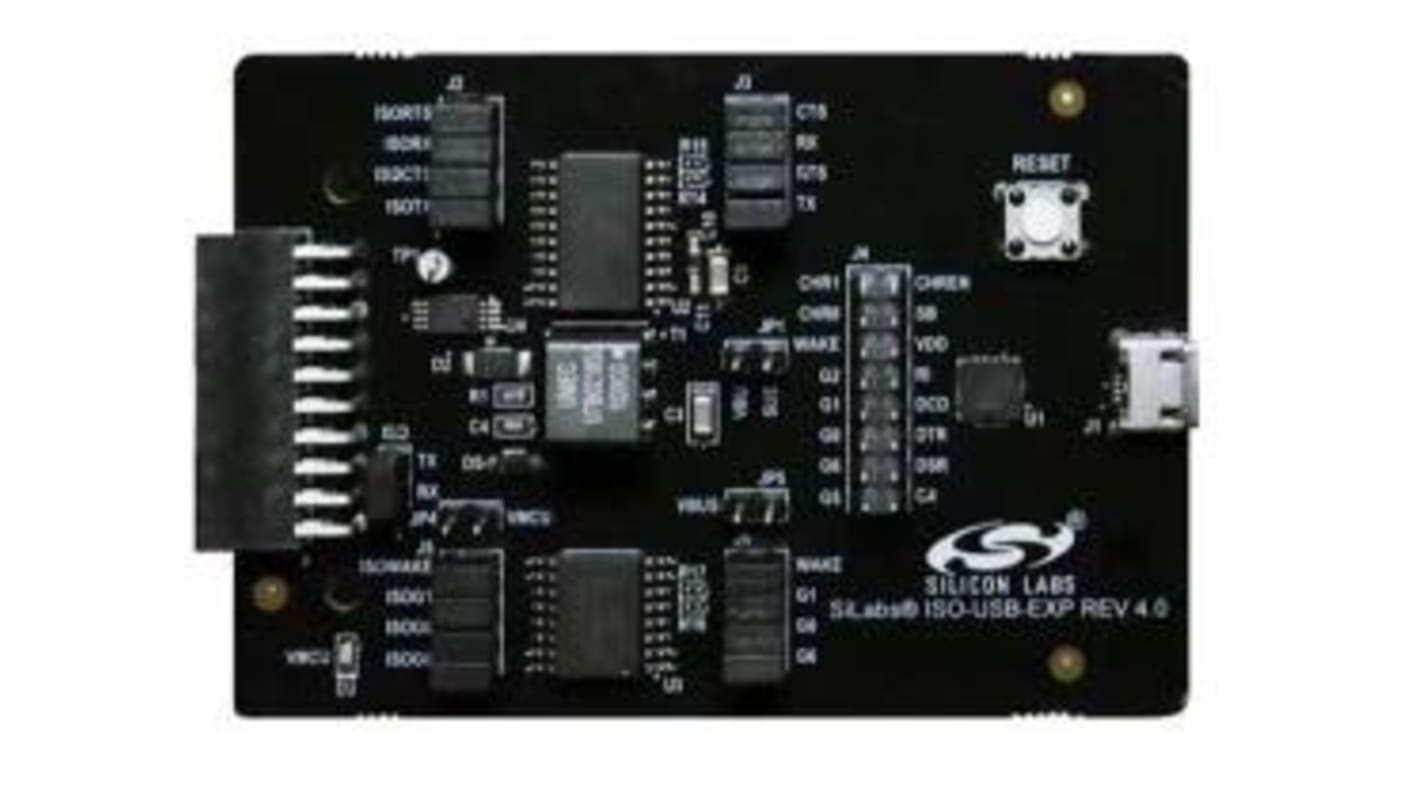

Silicon Labs Isolated RS485 and RS232 Evaluation Kit Isolated-RS-EK Evaluation Kit for EFM8 and EFM32 Starter Kits
- RS 제품 번호:
- 144-9501
- 제조사 부품 번호:
- Isolated-RS-EK
- 제조업체:
- Silicon Labs
일시 품절-다음 입고 날짜는 10/06/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩110,990.415
| 수량 | 한팩당 |
| 1 - 4 | ₩110,990.415 |
| 5 + | ₩108,770.469 |
- RS 제품 번호:
- 144-9501
- 제조사 부품 번호:
- Isolated-RS-EK
- 제조업체:
- Silicon Labs
제정법과 컴플라이언스
제품 세부 사항
The Isolated RS232/RS485 Evaluation Kit is a demonstration and evaluation platform for creating Isolated RS232 and RS485 solutions. It can be used in conjunction with EFM32 and EFM8 MCU Stater Kits (STKs). It simplifies the process of creating an isolated RS solution by offering an already built and functioning platform.
RS232/RS485 transceiver
20-pin header for connection to MCU Starter Kits
Null modem DB9 cable
2 x isolators
Breakout points
Loopback jumpers for easy evaluation
Biasing options for RS485
Write control options for RS485
Transformer for easy power over isolation
Status LEDs
User Guide
Example code in Simplicity Studio
Schematics
20-pin header for connection to MCU Starter Kits
Null modem DB9 cable
2 x isolators
Breakout points
Loopback jumpers for easy evaluation
Biasing options for RS485
Write control options for RS485
Transformer for easy power over isolation
Status LEDs
User Guide
Example code in Simplicity Studio
Schematics
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Kit Classification | Evaluation Kit |
| For Use With | EFM8 and EFM32 Starter Kits (STKs) |
| Featured Device | Isolated-RS-EK |
| Kit Name | Isolated RS485 and RS232 Evaluation Kit |
