RS PRO Coaxial Cable, 100m, RG174/U Coaxial, Unterminated
- RS 제품 번호:
- 665-5855
- 제조업체:
- RS PRO
- RS 제품 번호:
- 665-5855
- 제조업체:
- RS PRO
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항

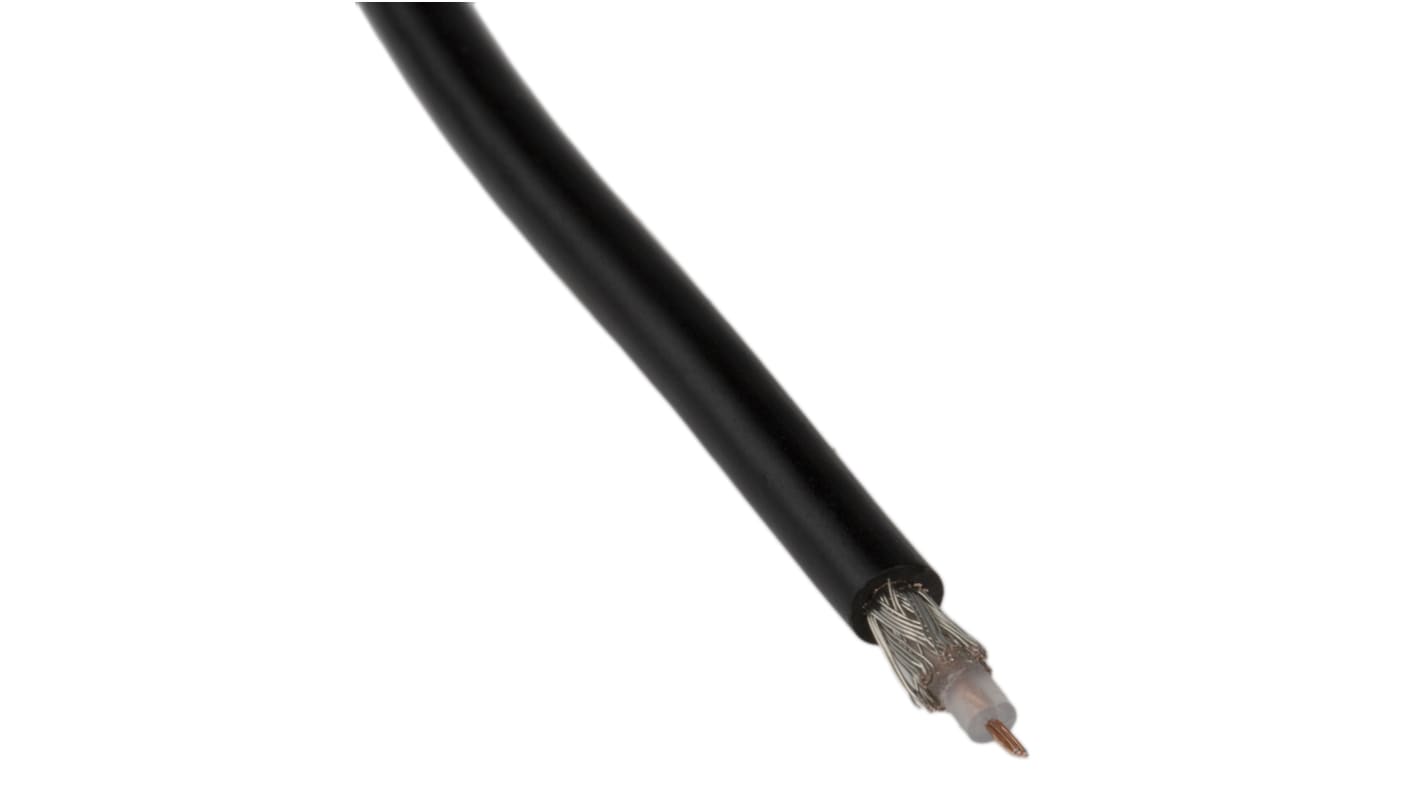

RG174/U Coaxial Cable
A flexible RG174/U coaxial cable for use in communications systems.
Features and benefits
Meets the requirements of MIL-C-17
Applications
RG174/U Coaxial cables are commonly used by electricians and IT personnel and have a range of application use such as;
- Connecting radio transmitters and receivers with their antennas
- Computer network (Internet) connections
- Feeding satellite signals through to your TV.
What is Impedance?
Impedance is an electric current’s opposition being measured when the voltage has been applied.
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
사양
속성 | 값 |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG174/U |
| Outer Diameter | 2.6mm |
| Characteristic Impedance | 50 Ω |
| Attenuation | 27.6 dB/100m @ 100 MHz, 55.8 dB/100m @ 400 MHz, 89.9 dB/100m @ 1 GHz |
| Length | 100m |
| Sheath Colour | Black |
| Conductor Strand Type | Stranded |
| Velocity ratio | 66% |
| Operating Temperature Range | 80°C Max. |
| Maximum Operating Temperature | +80°C |
| Size of Strands | 0.16 mm |
| Shielding | Tinned Copper Braid |
| Core Strands | 7/0.16 |
| Number of Strands | 7 |
| Sheath Material | Polyvinyl Chloride PVC |
| Insulation Material | Solid PE |
| Conductor Material | Copper Clad Steel |
