- RS 제품 번호:
- 713-3463
- 제조사 부품 번호:
- VG95234S15S-003
- 제조업체:
- Glenair
- RS 제품 번호:
- 713-3463
- 제조사 부품 번호:
- VG95234S15S-003
- 제조업체:
- Glenair
제정법과 컴플라이언스
- COO (Country of Origin):
- IT
제품 세부 사항

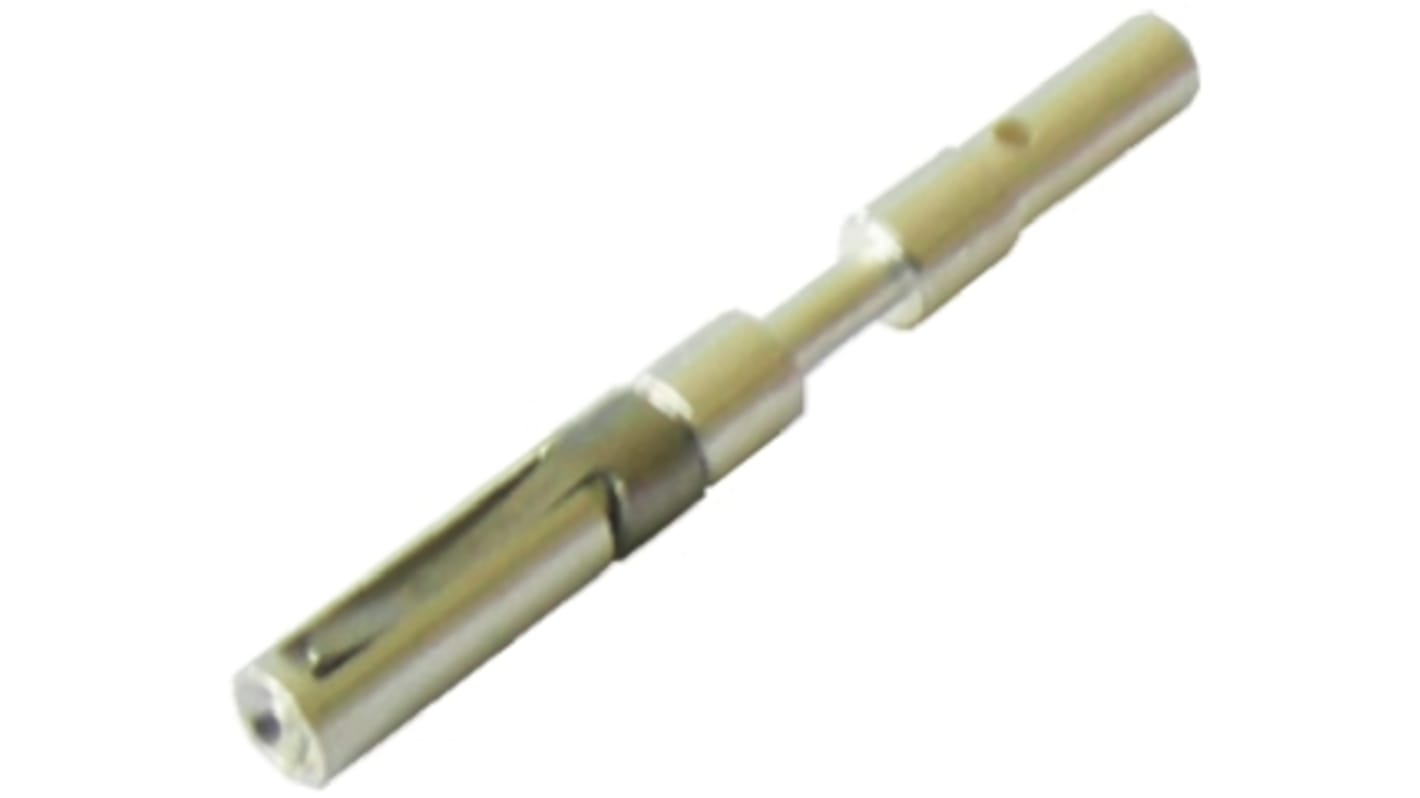

Glenair VG95234 Socket Contacts
Glenair VG95234 socket contacts for use within the VG95234 conforming connector series.
VG95234 Conforming Connectors
Glenair VG95324 connectors are suitable for many applications such as military ground vehicles, electric cars, train line and others that require robust connector facilities. These connectors are reverse bayonet lock which provides simple and fast coupling, interchangeable and intermateable with a wide range of industry standard reverse bayonet connectors based around MIL-DTL-5015 - VG95234. With the appropriate backshells and environmental sealing these connectors are submersible at a depth of 2 metres for 48 hours.
사양
속성 | 값 |
---|---|
Gender | Female |
Contact Size | 16S |
Wire Size | 16 AWG |
Termination Method | Crimp |
Series | VG95234 |
Current Rating | 7.5A |
Contact Type | Signal |
Length | 27.4mm |
Contact Plating | Silver |
Contact Material | Copper Alloy |
Maximum Contact Resistance | 6mΩ |
Minimum Operating Temperature | -55°C |
Mounting Type | Cable Mount |
Maximum Operating Temperature | +125°C |
