- RS 제품 번호:
- 122-4348
- 제조사 부품 번호:
- HR30-PC-111
- 제조업체:
- Hirose
일시 품절-다음 입고 날짜는 22/11/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(100개가 1봉지안에)
₩320.831
수량 | 한팩당 | Per Bag* |
100 - 400 | ₩320.831 | ₩32,152.136 |
500 + | ₩289.783 | ₩28,943.822 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 122-4348
- 제조사 부품 번호:
- HR30-PC-111
- 제조업체:
- Hirose
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항
Miniature Waterproof Plastic Connectors
The Hirose HR30 lightweight waterproof connectors have an IP67 rating which offers, when mated, a complete protection against water penetration when submerged in 1 metre of water for 30 minutes. All variations are manufactured with glass reinforced thermoplastic compounds and non corrosive components. Connectors with solder termination have solder pot inner diameters as follows:- 3 way (1.1 mm), 6-way (0.8 mm), 12-way (0.6 mm).
Push pull lock mechanism
Small and lightweight
Polarised to protect the contacts from misalignment
Built in cable strain relief
1000 mating/release cycles
Small and lightweight
Polarised to protect the contacts from misalignment
Built in cable strain relief
1000 mating/release cycles
Note

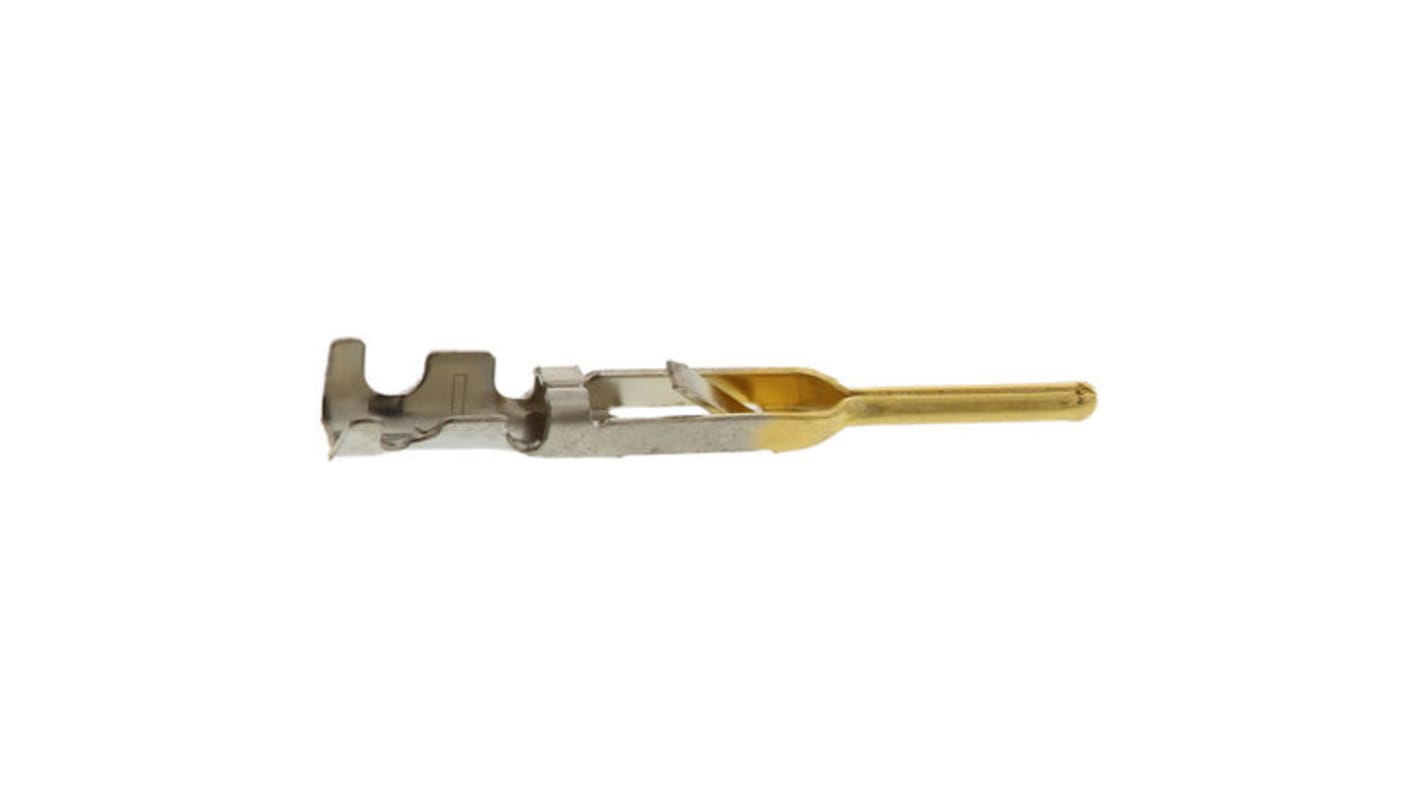

Crimp contacts, stock no.s 537-5400 and 537-5416 are for 26 to 30 AWG wire, with an overall diameter of 1 mm max. and must be ordered separately.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Hirose Miniature Waterproof Plastic Connectors - HR30 Series
사양
속성 | 값 |
---|---|
Gender | Male |
Wire Size | 30 → 26 AWG |
Termination Method | Crimp |
Series | HR30 |
Current Rating | 2A |
Contact Type | Signal |
Length | 11mm |
Contact Plating | Gold |
Contact Material | Phosphor Bronze |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +85°C |
Mounting Type | Cable Mount |
