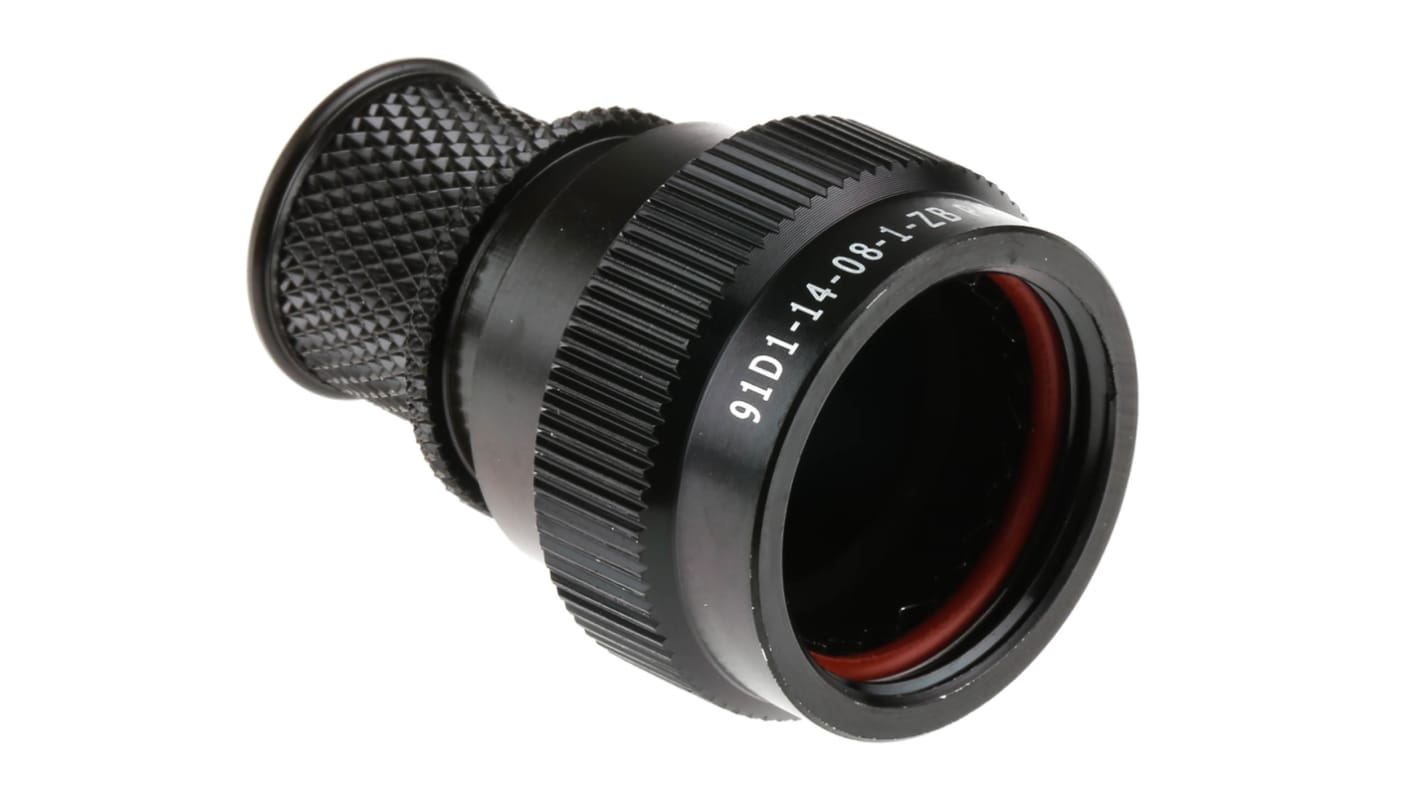

Polamco, 91Size 14 Straight Circular Connector Backshell, For Use With MIL-DTL-26482 Series I, PATT 105, PATT 603
- RS 제품 번호:
- 241-1323
- 제조사 부품 번호:
- 91D1-14-08-1-ZB
- 제조업체:
- Polamco
일시 품절-다음 입고 날짜는 25/07/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩119,868.476
| 수량 | 한팩당 |
| 1 - 4 | ₩119,868.476 |
| 5 - 24 | ₩117,890.015 |
| 25 - 49 | ₩116,061.621 |
| 50 - 99 | ₩112,710.141 |
| 100 + | ₩112,342.737 |
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 241-1323
- 제조사 부품 번호:
- 91D1-14-08-1-ZB
- 제조업체:
- Polamco
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항
Polamco Coupling Backshell
The Polamco 91 series spin coupling backshell of size 14 is used in conjunction with heat-shrink boots or spring clips to terminate braided cable jacket. The threaded coupling end rotates separately from the body so that cable is not twisted upon removal of backshell from the connector body. The mating interface of this backshell features anti-rotation teeth and a sealing 'O' ring. The length of this backshell is 34mm.
Note:
Series 1 fits all 62GB, AB05 and MIL-C-26482(US) solder connectors, Series 2 fits the commercial threaded (MIL-C-5015) connectors, Series 3 fits the industrial bayonet (MIL-C-5015) connectors, Series 4 fits professionally threaded (MILD38999) connectors.
Note:
Series 1 fits all 62GB, AB05 and MIL-C-26482(US) solder connectors, Series 2 fits the commercial threaded (MIL-C-5015) connectors, Series 3 fits the industrial bayonet (MIL-C-5015) connectors, Series 4 fits professionally threaded (MILD38999) connectors.
Features and Benefits
Aluminium alloy housing with an olive drab zinc cobalt finish
Cable size ranges between 12.70mm and 20.3mm
Straight body orientation
Cable size ranges between 12.70mm and 20.3mm
Straight body orientation
사양
속성 | 값 |
|---|---|
| For Use With | MIL-DTL-26482 Series I, PATT 105, PATT 603 |
| Shell Size | 14 |
| Body Orientation | Straight |
| Housing Material | Aluminium Alloy |
| Spring Clip Size | 2 |
| Thread Size | UNEF 13/16-20 |
| Length | 34mm |
| Series | 91 |
