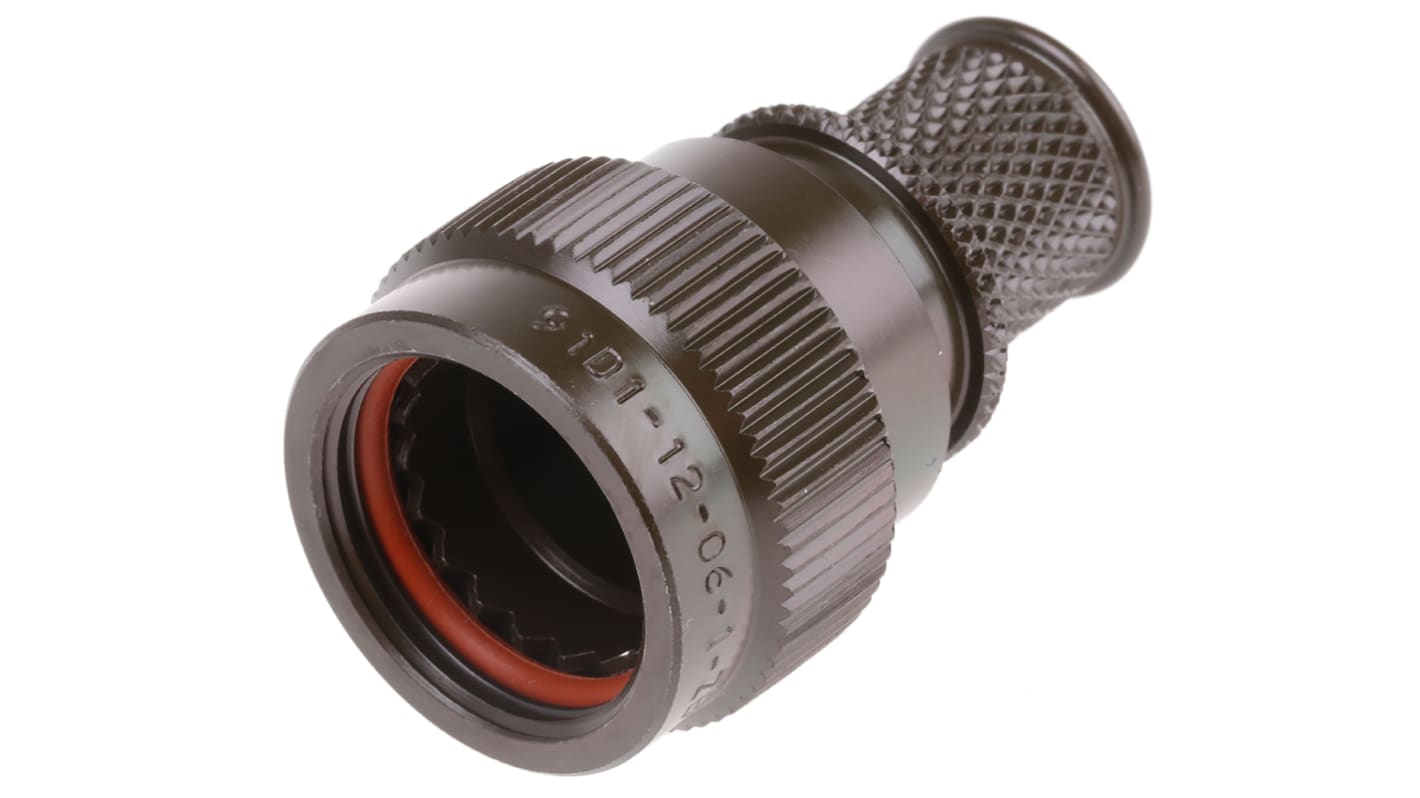

Polamco, 1Size 12 Straight Circular Connector Backshell, For Use With 62 GB Series, AB05 Series, MIL-C 26482 Connector
- RS 제품 번호:
- 104-503
- 제조사 부품 번호:
- 91D1-12-06-1-ZB
- 제조업체:
- Polamco
일시 품절-문의: krenquiry@rs-components.com
추가완료!
단가 개당
₩78,484.675
| 수량 | 한팩당 |
| 1 - 9 | ₩78,484.675 |
| 10 - 49 | ₩76,130.186 |
| 50 - 99 | ₩73,775.698 |
| 100 - 249 | ₩72,207.764 |
| 250 + | ₩70,639.83 |
- RS 제품 번호:
- 104-503
- 제조사 부품 번호:
- 91D1-12-06-1-ZB
- 제조업체:
- Polamco
제정법과 컴플라이언스
비준수
- COO (Country of Origin):
- GB
제품 세부 사항
91 Series Spin Coupling Backshells, Polamco
Dual purpose spin coupling backshells may be used in conjunction with heatshrink boots or spring clips (for example, stock no. 241-1519) to terminate braided cable jacketing. The threaded coupling end rotates separately from the body so that cable is not twisted upon removal of backshell from the connector body. The mating interface of these backshells features anti-rotation teeth and a sealing 'O' ring.
Note
Series 1 fits all 62GB, AB05 and MIL-C-26482(US) solder connectors,Series 2 fits the commercial threaded (MIL-C-5015) connectors,Series 3 fits the industrial bayonet (MIL-C-5015) connectors,Series 4 fits professional threaded (MILD38999) connectors
사양
속성 | 값 |
|---|---|
| For Use With | 62 GB Series, AB05 Series, MIL-C 26482 Connector |
| Shell Size | 12 |
| Body Orientation | Straight |
| Housing Material | Metal |
| Spring Clip Size | 1 |
| Thread Size | UNEF 11/16-24 |
| Series | 1 |
