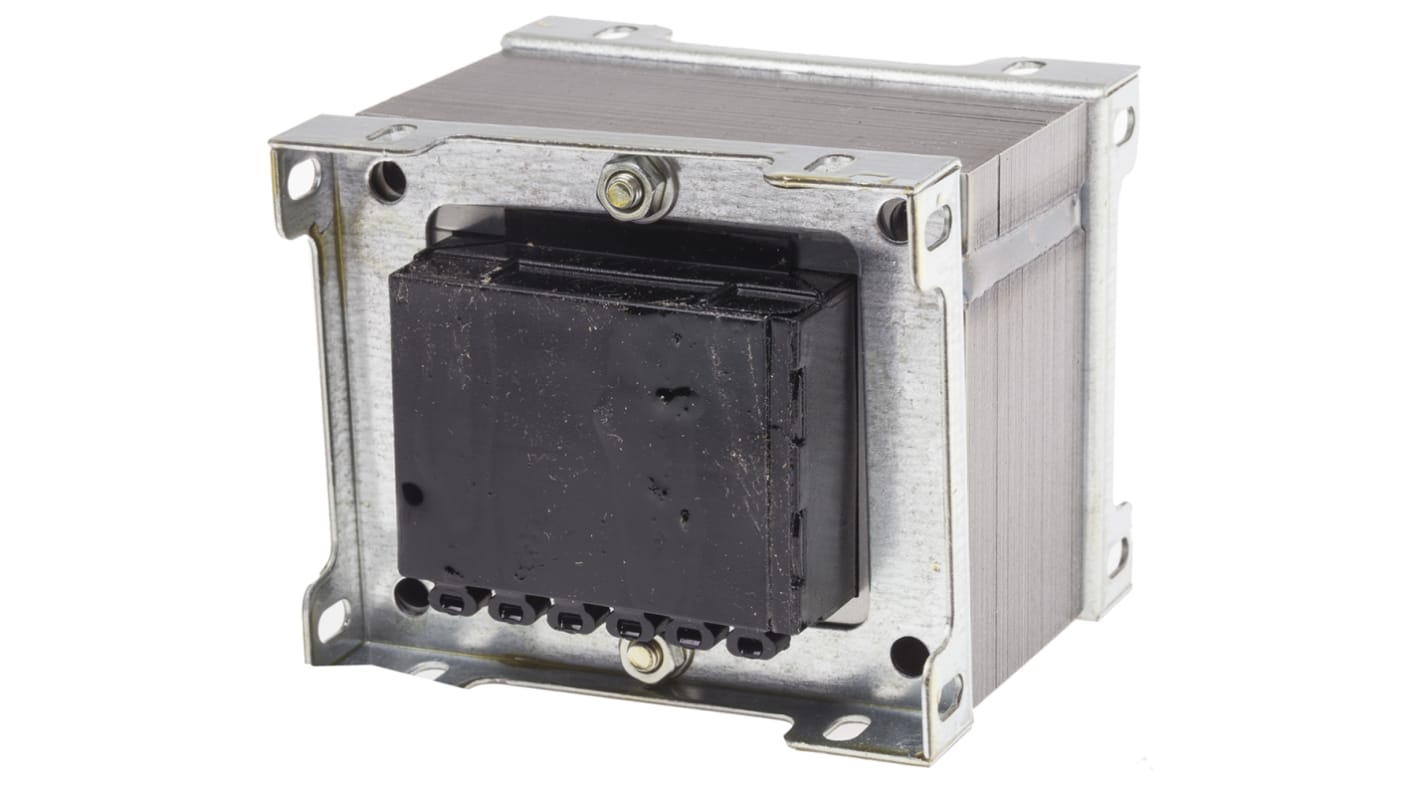

RS PRO 75VA 2 Output Chassis Mounting Transformer, 9V ac, IEC 61558-2-6
- RS 제품 번호:
- 504-644
- 제조업체:
- RS PRO
28 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩85,479.144
| 수량 | 한팩당 |
| 1 - 9 | ₩85,479.144 |
| 10 - 49 | ₩83,683.524 |
| 50 + | ₩68,871.807 |
- RS 제품 번호:
- 504-644
- 제조업체:
- RS PRO
제정법과 컴플라이언스
- COO (Country of Origin):
- PL
제품 세부 사항
Chassis Mount Frame 75VA to 200VA
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA
Chassis Mount Frame 75VA to 200VA
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA(503-928)
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA(503-928)
Approvals
8888
Standards
BS3535; EN 60 742
사양
속성 | 값 |
|---|---|
| Primary Voltage Rating | 230V ac |
| Secondary Voltage Rating | 9V ac |
| Power Rating | 75VA |
| Number of Outputs | 2 |
| Mounting Type | Chassis |
| Length | 79mm |
| Width | 75mm |
| Depth | 65mm |
| Dimensions | 79 x 75 x 65mm |
| Fixing Hole Diameter | 4.7 x 7.9mm |
| Weight | 1.5kg |
| Minimum Operating Frequency | 50Hz |
| Standards Met | IEC 61558-2-6 |
| Maximum Operating Frequency | 60Hz |
