Texas Instruments SN74LVCC3245ADBR, 1 Bus Transceiver, 8-Bit Non-Inverting LVTTL, 24-Pin SSOP

RS 제품 번호:: 662-9118
제조사 부품 번호:: SN74LVCC3245ADBR
제조업체:: Texas Instruments

Texas Instruments SN74LVCC3245ADBR, 1 Bus Transceiver, 8-Bit Non-Inverting LVTTL, 24-Pin SSOP

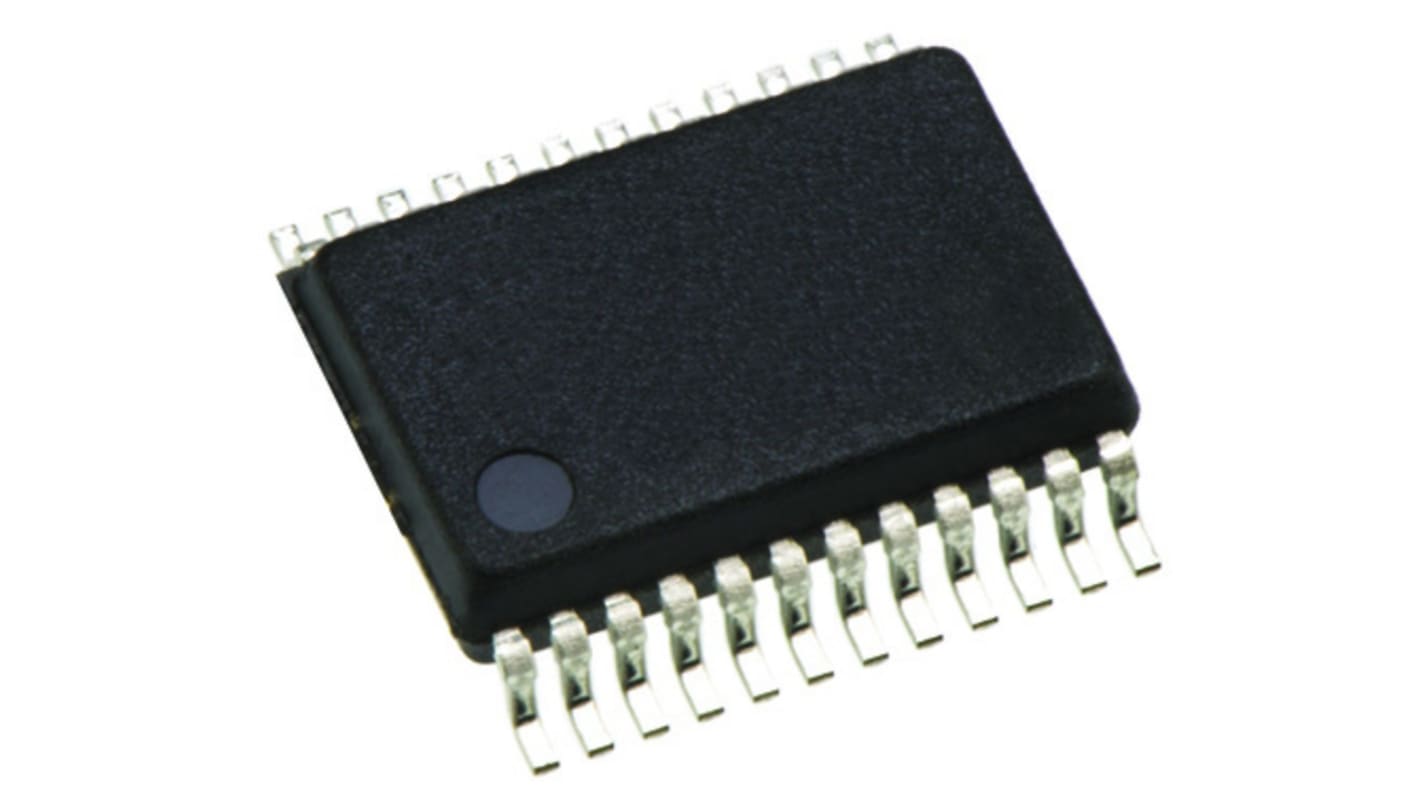

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

일시 품절-다음 입고 날짜는 16/01/2025 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.

추가완료!

단가 개당가격(5개가 1팩안에)

₩2,765.015

수량	한팩당	한팩당*
5 - 495	₩2,765.015	₩13,825.074
500 - 995	₩2,696.019	₩13,481.818
1000 +	₩2,654.621	₩13,269.656
*다른 단위에 대한 가격 표시

RS 제품 번호:: 662-9118
제조사 부품 번호:: SN74LVCC3245ADBR
제조업체:: Texas Instruments

참조 문서

ESD Control Selection Guide V1

제정법과 컴플라이언스

제품 세부 사항

74LVC Family Bus Transceivers, Texas Instruments

Texas Instruments range of Bus Transceivers from the 74LVC Family of Low-voltage CMOS Logic ICs. The 74LVC Family use silicon gate CMOS technology and is designed to operate at 3.3V, allowing a significant reduction in power consumption when compared to 5V systems.

Operating Voltage: 1.65 to 3.6V
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

74LVC Family

사양

속성	값
Logic Family	LVC
Logic Function	Bus Transceiver
Number of Elements per Chip	1
Number of Channels per Chip	8
Polarity	Non-Inverting
Mounting Type	Surface Mount
Package Type	SSOP
Pin Count	24
Input Level	LVTTL
Output Level	LVTTL
Maximum High Level Output Current	-24mA
Maximum Low Level Output Current	24mA
Maximum Propagation Delay Time @ Maximum CL	11.2 ns@ 3.3 V
Minimum Operating Supply Voltage	2.3 V, 3 V
Width	5.3mm
Maximum Operating Supply Voltage	3.6 V, 5.5 V
Maximum Operating Temperature	+85 °C
Propagation Delay Test Condition	50pF
Length	8.2mm
Height	1.95mm
Minimum Operating Temperature	-40 °C
Dimensions	8.2 x 5.3 x 1.95mm
