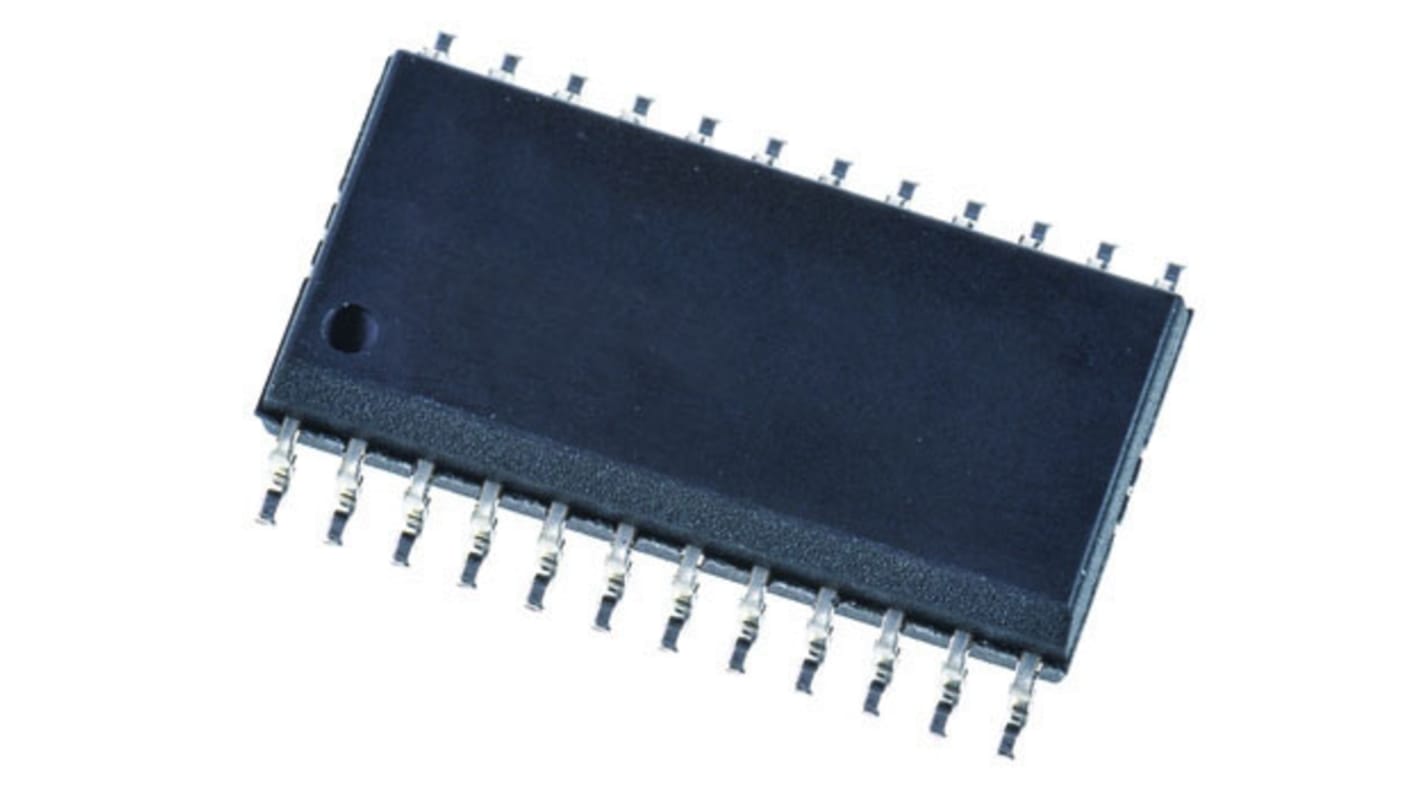

Texas Instruments SN74LVC4245ADW, 1 Bus Transceiver, 8-Bit Non-Inverting LVTTL, 24-Pin SOIC
- RS 제품 번호:
- 528-236
- 제조사 부품 번호:
- SN74LVC4245ADW
- 제조업체:
- Texas Instruments
1225 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(25개가 1튜브안에)
₩2,138.876
| 수량 | 한팩당 | Per Tube* |
| 25 - 100 | ₩2,138.876 | ₩53,454.651 |
| 125 + | ₩1,924.988 | ₩48,107.461 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 528-236
- 제조사 부품 번호:
- SN74LVC4245ADW
- 제조업체:
- Texas Instruments
제정법과 컴플라이언스
제품 세부 사항
74LVC Family Bus Transceivers, Texas Instruments
Texas Instruments range of Bus Transceivers from the 74LVC Family of Low-voltage CMOS Logic ICs. The 74LVC Family use silicon gate CMOS technology and is designed to operate at 3.3V, allowing a significant reduction in power consumption when compared to 5V systems.
Operating Voltage: 1.65 to 3.6V
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
74LVC Family
사양
속성 | 값 |
|---|---|
| Logic Family | LVC |
| Logic Function | Bus Transceiver |
| Number of Elements per Chip | 1 |
| Number of Channels per Chip | 8 |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 24 |
| Input Level | LVTTL |
| Output Level | LVTTL |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | 24mA |
| Maximum Propagation Delay Time @ Maximum CL | 6.7 ns@ 5 V |
| Minimum Operating Supply Voltage | 2.7 V, 4.5 V |
| Width | 7.52mm |
| Maximum Operating Supply Voltage | 3.6 V, 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Length | 15.4mm |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay Test Condition | 50pF |
| Height | 2.35mm |
| Dimensions | 15.4 x 7.52 x 2.35mm |
