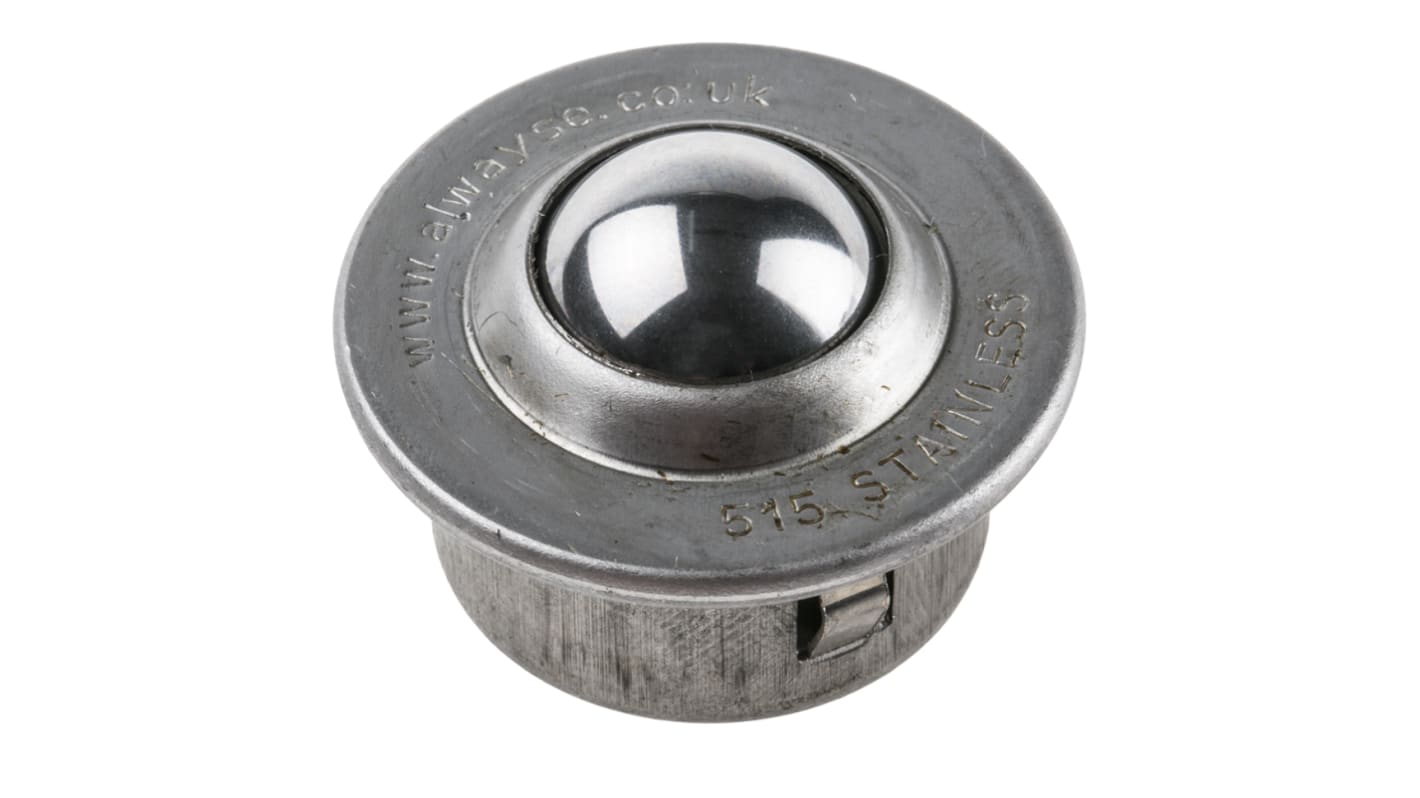

ALWAYSE Ball Transfer Unit with 15.8mm diameter Stainless Steel ball
- RS 제품 번호:
- 913-0882
- 제조사 부품 번호:
- 515-2-15
- 제조업체:
- ALWAYSE
185 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩22,458.198
| 수량 | 한팩당 |
| 1 - 4 | ₩22,458.198 |
| 5 - 9 | ₩21,561.25 |
| 10 - 24 | ₩20,664.302 |
| 25 + | ₩20,215.828 |
- RS 제품 번호:
- 913-0882
- 제조사 부품 번호:
- 515-2-15
- 제조업체:
- ALWAYSE
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항
Euro Ball Transfer Unit
Pre-lubricated ball transfer units to move or transfer loads in all directions. Max speed 1m/sec. Available in a wide choice of load capacities, sizes and fixings. Operating temperatures -30°C to 70°C (continuous use, depending on seals used).
Features and Benefits
Main bearing cup toughened steel
Felt or plastic seal (except 15mm)
Self-cleaning hole
Flange type fitting
Felt or plastic seal (except 15mm)
Self-cleaning hole
Flange type fitting
Fixing Clip
Fixing clips that allow fixing from either the top side of a ball deck or the underside. Suitable for deck thicknesses up to 4mm.
Stainless Steel or Mild Steel, Zinc Plated
사양
속성 | 값 |
|---|---|
| Ball Diameter | 15.8mm |
| Mounting Type | Circular Flange |
| Maximum Load | 38kg |
| Load Ball Material | Stainless Steel |
| Case Material | Stainless Steel |
| Flange Diameter | 31mm |
