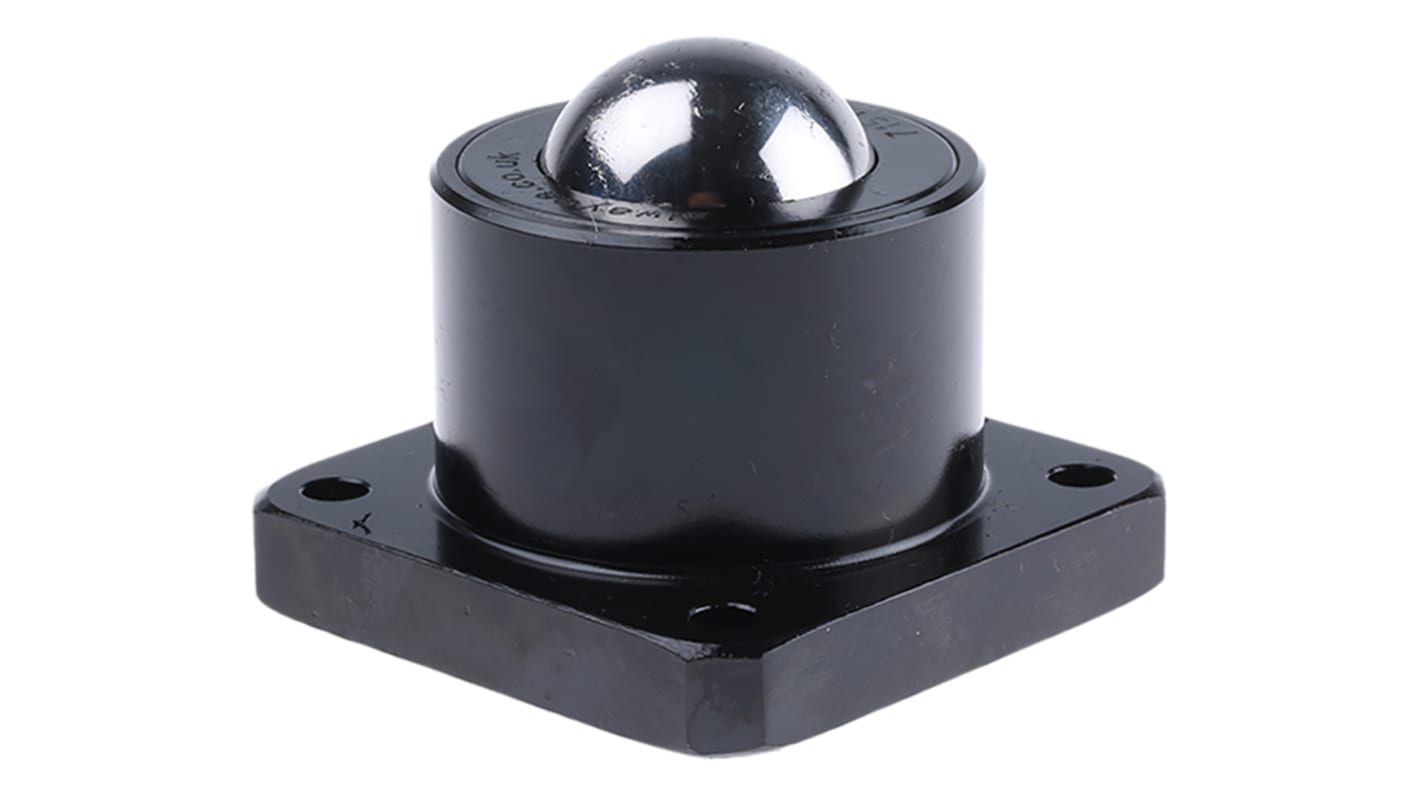

ALWAYSE Ball Transfer Unit with 38.1mm diameter Steel ball
- RS 제품 번호:
- 331-5800
- 제조사 부품 번호:
- 7151
- 제조업체:
- ALWAYSE
- RS 제품 번호:
- 331-5800
- 제조사 부품 번호:
- 7151
- 제조업체:
- ALWAYSE
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- GB
제품 세부 사항
Flange Fitting Ball Transfer Units
Pre-lubricated ball transfer units to move or transfer loads in any direction. Max speed 1m/sec. Manufactured to general tolerance of ±0.3mm. Plated with zinc/iron alloy finish for protection in use. Operating temperature -30°C to +70°C (continuous use, depending on seals used).
Pattern Heviload 3
Bottom flange fixing
Bottom flange fixing
사양
속성 | 값 |
|---|---|
| Ball Diameter | 38.1mm |
| Mounting Type | 4-Hole Flange |
| Maximum Load | 1000kg |
| Load Ball Material | Steel |
| Case Material | Steel |
| Flange Length | 76.2mm |
| Flange Width | 76.2mm |
